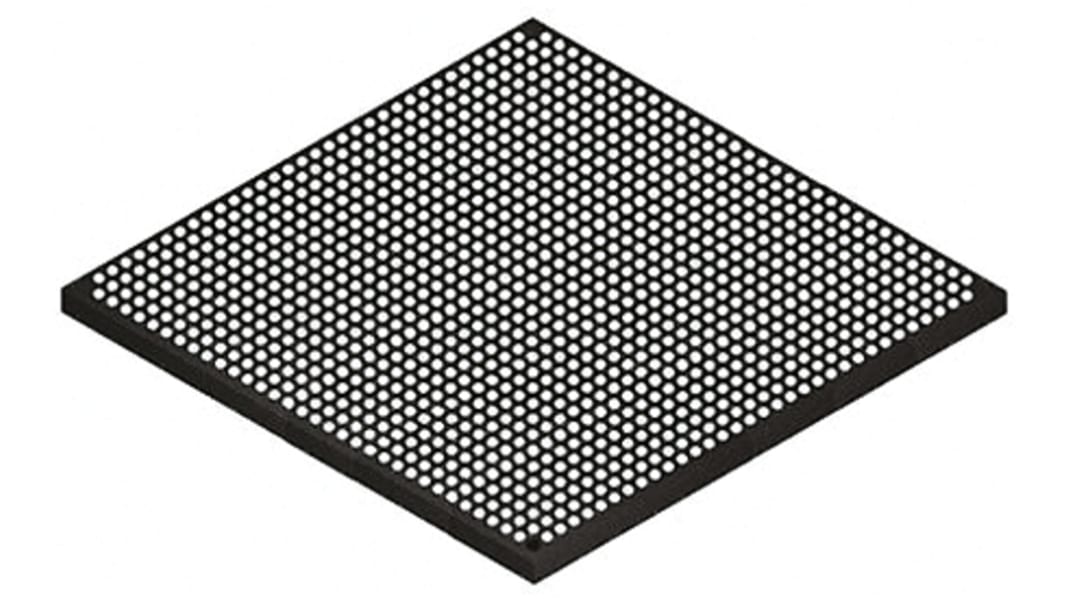

Altera FPGA 5AGXFB3H4F35I5N, Arria V 362000 Cells, 362k Gates, 19358kbit, 362000 Blocks, 1152-Pin FBGA
- RS Stock No.:
- 830-3596
- Mfr. Part No.:
- 5AGXFB3H4F35I5N
- Brand:
- Altera
Available to back order for despatch 15/07/2024
Added
Price Each
£1,542.57
(exc. VAT)
£1,851.08
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £1,542.57 |
| 10 - 19 | £1,503.01 |
| 20 + | £1,465.44 |
- RS Stock No.:
- 830-3596
- Mfr. Part No.:
- 5AGXFB3H4F35I5N
- Brand:
- Altera
Technical Reference
Legislation and Compliance
Product Details
Arria V GX FPGA with 6Gbps Transceivers, Altera
These devices Provide bandwidth, cost, and power levels that are optimized for high-volume data and signal-processing applications.
An FPGA is a semiconductor device consisting of a matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a block of RAM). The FPGA allows changes to be made to a design even after the device is soldered into a PCB.
Specifications
Attribute | Value |
|---|---|
| Family Name | Arria V |
| Number of Logic Gates | 362k |
| Number of Logic Cells | 362000 |
| Number of Logic Units | 362000 |
| Dedicated DSP | Yes |
| Number of Registers | 547520 |
| Number of Multipliers | 1045 (27 x 27), 2090 (18 x 18), 3135 (9 x 9) |
| Mounting Type | Surface Mount |
| Package Type | FBGA |
| Pin Count | 1152 |
| Number of RAM Bits | 19358kbit |
| Dimensions | 35 x 35 x 2.1mm |
| Height | 2.1mm |
| Length | 35mm |
| Maximum Operating Temperature | +100 °C |
| Maximum Operating Supply Voltage | 1.13 V |
| Width | 35mm |
| Minimum Operating Supply Voltage | 1.07 V |
| Minimum Operating Temperature | -40 °C |
