- RS Stock No.:
- 718-8652
- Mfr. Part No.:
- 1734742-8
- Brand:
- TE Connectivity
58 In stock - FREE next working day delivery available
Added
Price Each
£0.60
(exc. VAT)
£0.72
(inc. VAT)
Units | Per unit |
1 - 24 | £0.60 |
25 - 99 | £0.52 |
100 - 499 | £0.44 |
500 - 999 | £0.37 |
1000 + | £0.34 |
- RS Stock No.:
- 718-8652
- Mfr. Part No.:
- 1734742-8
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

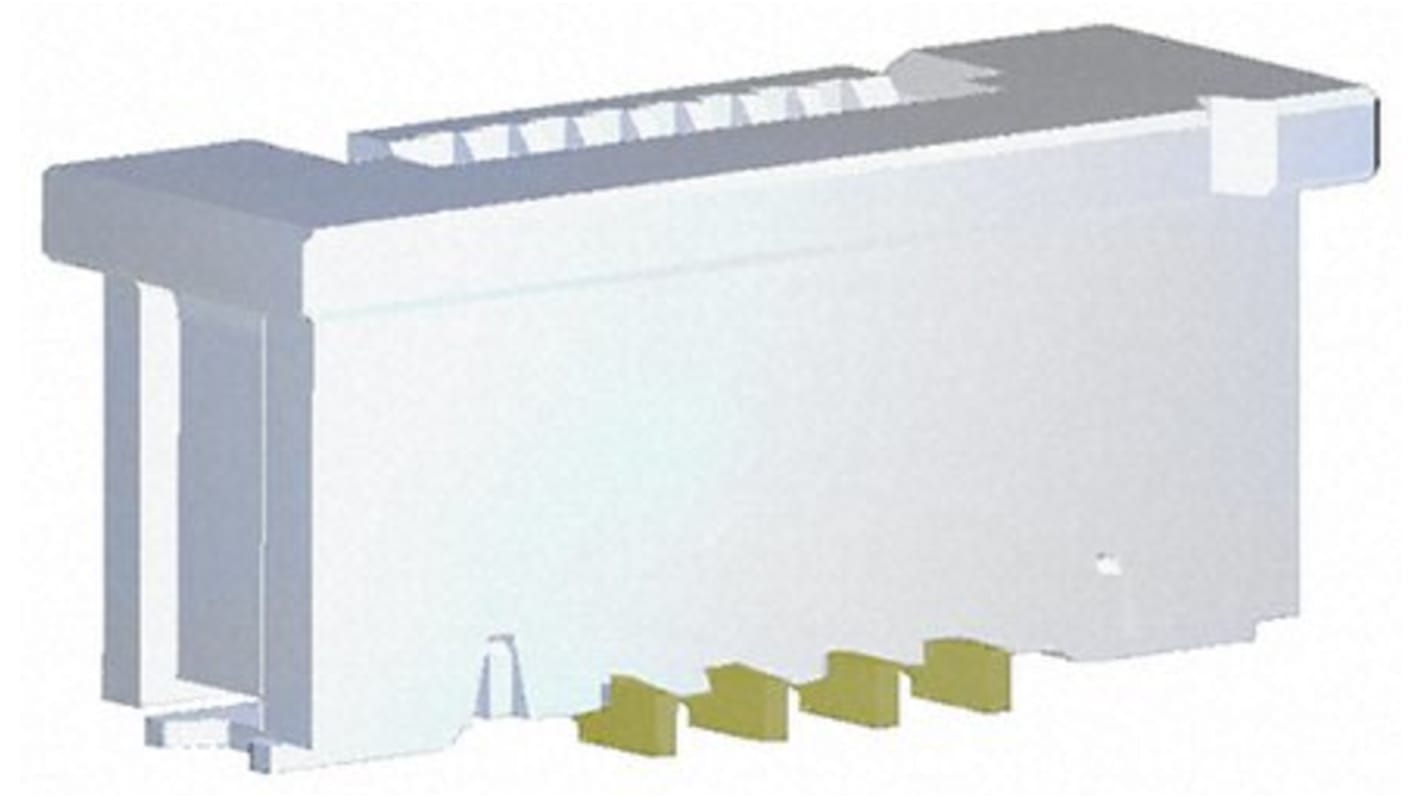

TE Connectivity 0.5mm FPC Connectors
FFC/FPC connectors with a 0.5mm centreline ideal for routing signals through devices when standard wire to board connectors are too large. These 0.5mm FFC/FPC connectors have ZIF (Zero Insertion Force) where an actuator is used to secure the FPC. ZIF connectors produce less wear on the contacts, increase the mating cycle count and provide improved retention in high vibration environments. These 0.5mm ZIF FPC connectors feature a slide lock actuator, the actuator is opened, the FPC inserted into the connector and the actuator closed again forming a secure mating connection. No additional application tooling is required. Solder tabs on the connectors provide extra connector retention to the PCB. These 0.5mm FPC connectors are available as vertical mounting or right angle mounting with top or bottom contact configurations.
Features and Benefits
Compact design
ZIF connection for increased retention and less contact wear
Slide lock actuator for easy cable insertion and secure connection
No application tooling required
Top or bottom contact configurations
Solder tabs for increased retention on PCB
ZIF connection for increased retention and less contact wear
Slide lock actuator for easy cable insertion and secure connection
No application tooling required
Top or bottom contact configurations
Solder tabs for increased retention on PCB
Applications
These 0.5mm ZIF FPC connectors are suitable for use in a wide range of applications. These applications include hand held scanners, set-top boxes PCs and peripherals, business equipment, industrial equipment and medical equipment
0.5mm FPC - TE Connectivity
Specifications
Attribute | Value |
---|---|
Number of Contacts | 8 |
Contact Material | Phosphor Bronze |
Pitch | 0.5mm |
Mounting Type | Surface Mount |
Gender | Female |
Termination Type | ZIF Vertical Contact |
Body Orientation | Straight |
Locking Mechanism | Yes |
Current Rating | 500mA |
Voltage Rating | 50 V ac |
Series | FPC |
Number of Rows | 1 |
Contact Plating | Gold over Nickel |
Termination Method | Solder |
Minimum Operating Temperature | -20°C |
Housing Material | PA9T |
Maximum Operating Temperature | +85°C |
