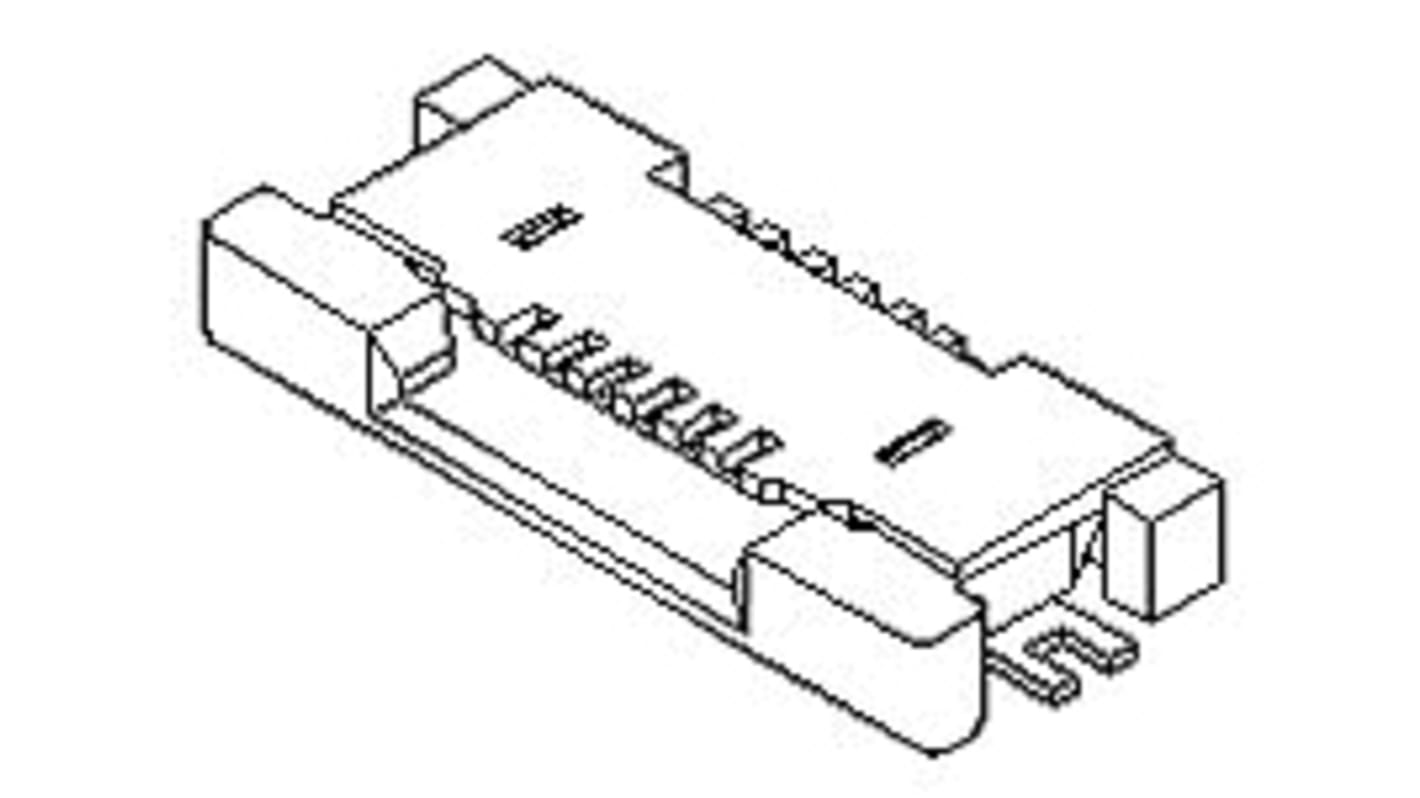

Molex, 54550 0.5mm Pitch 8 Way Right Angle Female FPC Connector, ZIF
- RS Stock No.:
- 179-1877
- Mfr. Part No.:
- 54550-0871
- Brand:
- Molex
Available to back order for despatch 09/12/2024
Added
Price Each (In a Pack of 10)
£1.398
(exc. VAT)
£1.678
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | £1.398 | £13.98 |
| 100 - 490 | £1.29 | £12.90 |
| 500 - 990 | £1.199 | £11.99 |
| 1000 - 4990 | £1.169 | £11.69 |
| 5000 + | £1.139 | £11.39 |
| *price indicative | ||
- RS Stock No.:
- 179-1877
- Mfr. Part No.:
- 54550-0871
- Brand:
- Molex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
SlimStack Board-to-Board Receptacle, Surface Mount, Dual Row, Vertical Stacking, 4.00mm Stacking Height, 60 Circuits
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5mm |
| Mounting Type | Surface Mount |
| Gender | Female |
| Contact Position | Top |
| Termination Type | ZIF |
| Insertion Force | ZIF |
| Body Orientation | Right Angle |
| Current Rating | 500mA |
| Voltage Rating | 50 V |
| Series Number | 54550 |
| Number of Rows | 1 |
| Contact Plating | Gold, Tin |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
