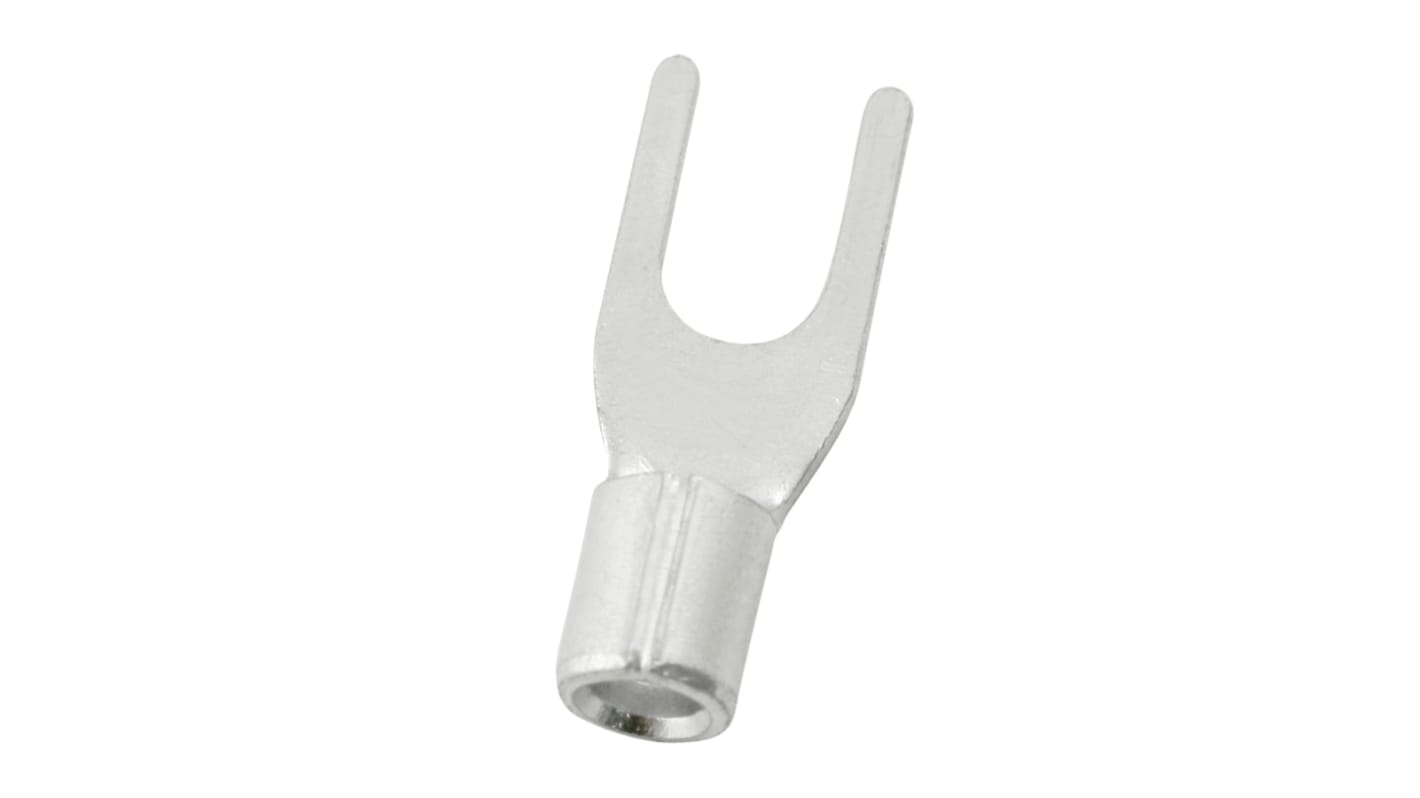

RS PRO Uninsulated Crimp Spade Connector, 1.5mm² to 2.5mm², 16AWG to 14AWG, 4.3mm Stud Size
- RS Stock No.:
- 178-8702
- Brand:
- RS PRO
600 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 100)
£0.038
(exc. VAT)
£0.046
(inc. VAT)
| Units | Per unit | Per Bag* |
| 100 - 900 | £0.038 | £3.80 |
| 1000 - 1900 | £0.034 | £3.40 |
| 2000 - 4900 | £0.032 | £3.20 |
| 5000 - 9900 | £0.029 | £2.90 |
| 10000 + | £0.026 | £2.60 |
| *price indicative | ||
- RS Stock No.:
- 178-8702
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The RS PRO Uninsulated spade connector has overall length of 16mm with thickness of 0.8mm and 600V of voltage rating.
Terminal material: Copper
Specifications
Attribute | Value |
|---|---|
| Insulation | Uninsulated |
| Width | 6.4mm |
| Minimum Wire Size mm² | 1.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | 4.3mm |
| Contact Plating | Tin |
| Overall Length | 16mm |
| Contact Material | Copper |
| Thickness | 0.8mm |
