Key Instruments GR Series Variable Area Flow Meter for Gas, 2 L/min Min, 10 L/min Max
- RS Stock No.:
- 198-3041
- Mfr. Part No.:
- 1250A6092ALAVB
- Brand:
- Key Instruments
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 198-3041
- Mfr. Part No.:
- 1250A6092ALAVB
- Brand:
- Key Instruments
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- US
Product Details

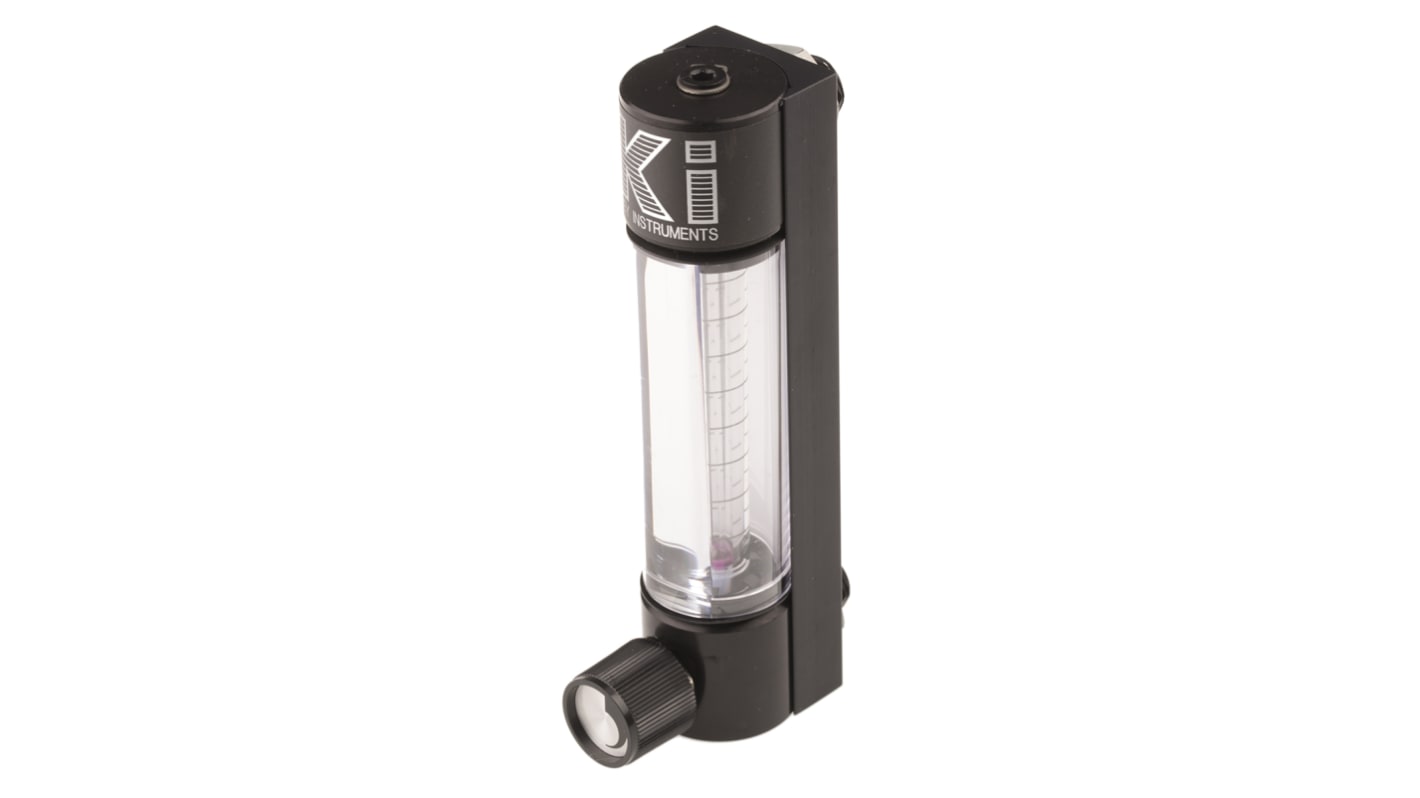

Key Instruments Flow Meter
The Key Instruments GR series glass tube flow meter has a liquid flow rate of 2L/min to 10L/min. This is an innovative tool made from borosilicate glass. It can be used with liquids or gases. The user can configure it with a standard or precision control valve on the inlet, outlet, or no valve at all.
Features and Benefits
Pipe diameter range is 1/8in
Maximum operating pressure is 13.7bar
Connection type 1/8 NPT female
It is available in Borosilicate Glass material
Water ranging from 21CCM to 2080CCM
Air ranging from 50CCM to 66370CCM
Rotating lens allows 180° view with magnification
The product is compatible with most gases and fluids
Maximum operating pressure is 13.7bar
Connection type 1/8 NPT female
It is available in Borosilicate Glass material
Water ranging from 21CCM to 2080CCM
Air ranging from 50CCM to 66370CCM
Rotating lens allows 180° view with magnification
The product is compatible with most gases and fluids
Applications
Industrial use
Compatible with most gases and fluids
Compatible with most gases and fluids
Specifications
Attribute | Value |
|---|---|
| Media Monitored | Gas |
| Device Type | Variable Area |
| Minimum Flow Rate | 2 L/min |
| Maximum Flow Rate | 10 L/min |
| Pipe Diameter Range | 1/8 in |
| Connection Type | 1/8 NPT Female |
| Maximum Pressure | 13.7bar |
| Material | Borosilicate Glass |
| Maximum Operating Temperature | +93°C |
| Series | GR |
