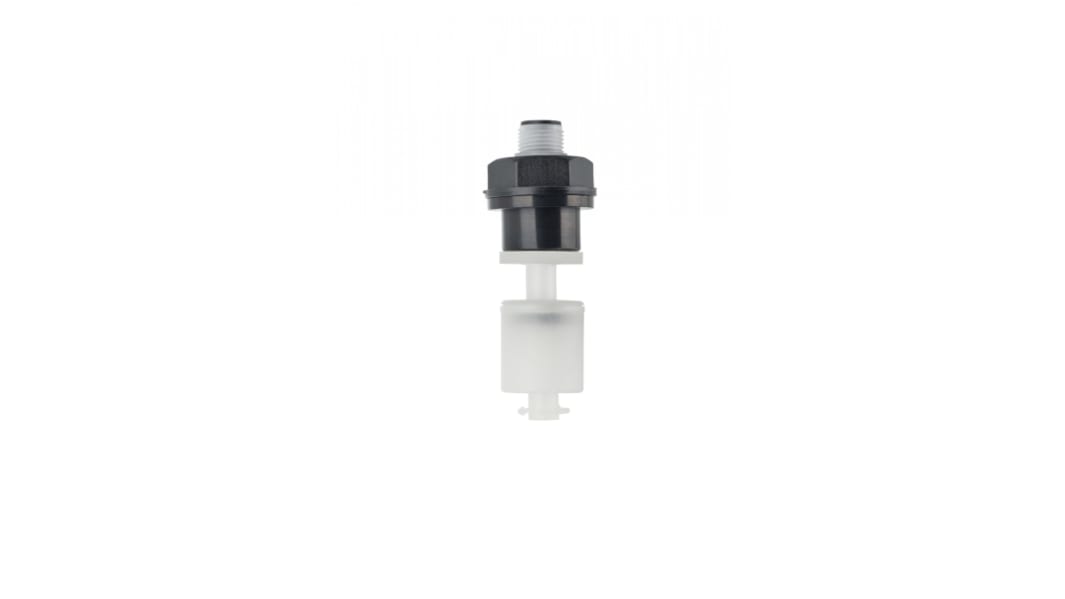

Sensata / Cynergy3 RSF100 Series Vertical Polyphenylene Sulfide Float Switch, NO/NC, 240V ac Max, 120V dc Max

RSF100 series float switches from cynergy3 are a range of miniature vertical float switch. These float switches require external mounting and feature a single switching point.

• This series features an N/O (normally open) contact. However, this can easily be reversed to N/C (normally closed) by inverting the float and reattaching it to the stem.
• The float attached to this switch is small and compact allowing you to use this float switch in applications where space is at a premium.
• You can mount this float switch externally using a compression seal at the top or bottom of a tank. You do not need access to the inside of the tank that you will be using the float switch in.
• A choice of 25 W or 100 W models are available.
• These float switches are available in a range of materials; nylon, polypropylene, PPS and PVDF. The choice of construction material will enable you to choose the right float switch for your application. Float switches made from PVDF can withstand acids and alkalis.
• Dependent on model, this range of float switches feature an M12 connector or PVC/PTFE cable.

Maintain a set liquid level in your tank using this float switch from Sensata Cynergy3. It's designed to monitor the rise and fall of liquid levels and triggers a supply pump if liquid levels are too low. This unit comes with an M12 connector for ease of connection to an alarm or control system. A maximum switching voltage of 240V AC and 120V DC makes it a good choice for use in low-voltage applications. Its tough polyphenylene sulfide body is resistant to chemicals and corrosion, making it suitable for use in harsh settings like wastewater treatment facilities and food production plants.

• Viton gasket helps prevent leakage for efficient performance
• Vertical mounting design for ease of installation in tanks without side access
• Maximum switching current of 600mA for energy-efficient operation
• Compact dimensions of 75 (length) x 21.5mm (diameter) to fit in small spaces

Yes. To adjust the switch configuration, remove the float, invert it and reattach it to the stem. This lets you choose between NO or NC operation, making this switch a versatile choice.
