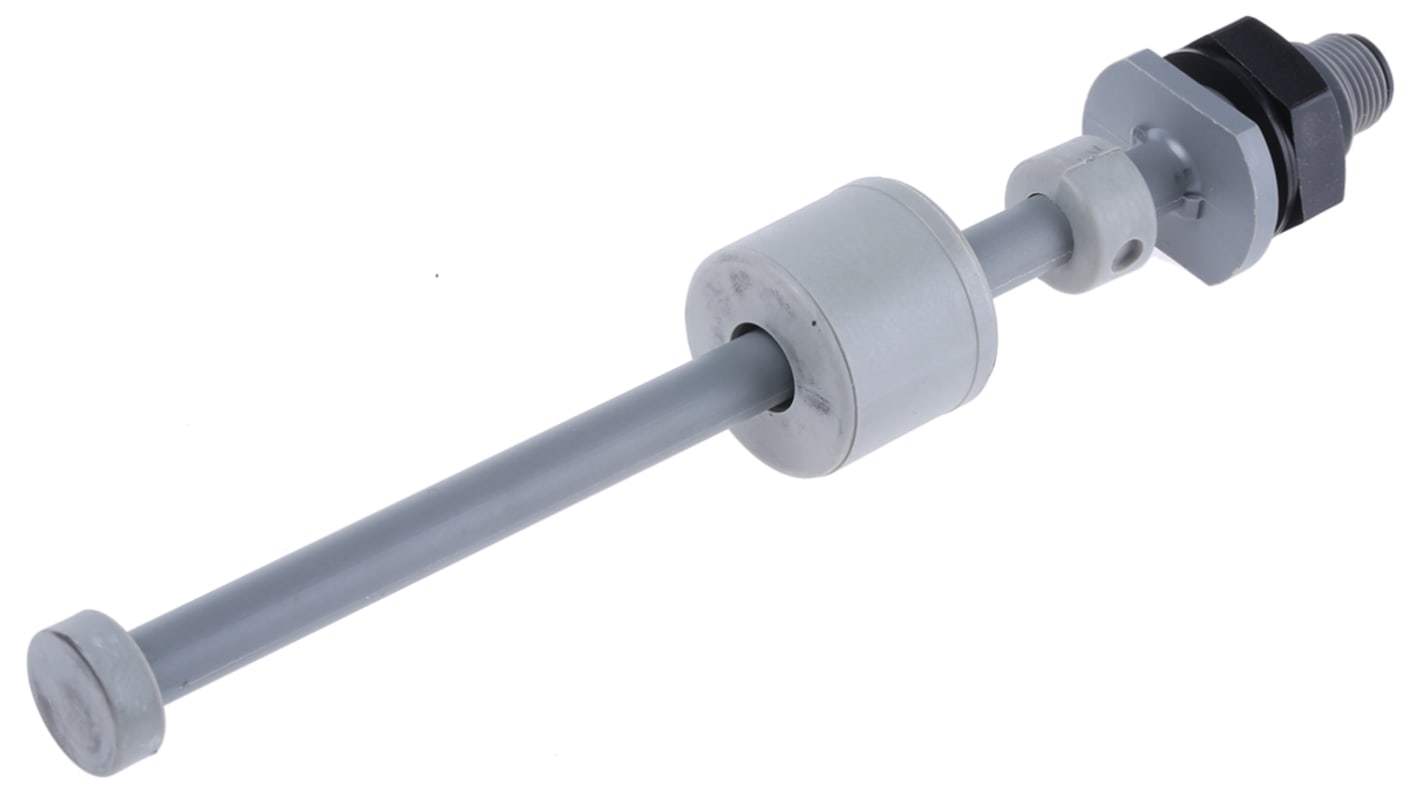

Sensata / Cynergy3 RSF66P Series Vertical Polyphenylene Sulfide Float Switch, Float, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 756-4239
- Mfr. Part No.:
- RSF66A25B125P
- Brand:
- Sensata / Cynergy3
22 In stock - FREE next working day delivery available
Added
Price Each
£46.62
(exc. VAT)
£55.94
(inc. VAT)
Units | Per unit |
1 - 4 | £46.62 |
5 - 9 | £45.22 |
10 + | £43.77 |
- RS Stock No.:
- 756-4239
- Mfr. Part No.:
- RSF66A25B125P
- Brand:
- Sensata / Cynergy3
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Vertical Float Switches - Dual Switching Point
The RSF66 float switches are made from PPS (Polyphenylene Sulphide) therefore suitable for use with a wide range of liquids. The float switches also offer a number of switching positions and therefore meet a variety of system needs.
High and low level switching
Filling or emptying control versions
M12 4 pin connection for quick connection
Grey
Filling or emptying control versions
M12 4 pin connection for quick connection
Grey
Sensata Cynergy3 Vertical Float Switch, NO/NC, 600mA - RSF66P Series - RSF66A25B125P
Monitor liquid levels in your tank or well with this float switch from Sensata's Cynergy3 range. It consists of a pivoting actuator with an integrated magnet that rises and falls with the fluid in a tank. The corresponding sensor reacts to the changing magnetic field to open or close the switch's contacts and activate or deactivate your electrical circuit. To protect against leaks, it has a nitrile gasket that forms a watertight seal and is resistant to wear and chemicals. It's particularly useful for automated pumps or warning systems, as well as vending machines and industrial heating equipment.
Features & Benefits
• M12 4-pin plug for a simple, tool-free connection
• NO/NC (normally open/normally closed) configuration for versatile use
• NO/NC (normally open/normally closed) configuration for versatile use
What temperatures can this switch be used in?
This switch has a wide operating temperature range of -10°C to +85°C, making the switch suitable for use in extreme temperatures.
What's the switch made from?
The switch's body is constructed from a robust polyphenylene sulfide (PPS) material, which offers chemical resistance and electrical insulation for reliable use in harsh conditions.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Vertical |
Switch Output | NO/NC |
Body Material | Polyphenylene Sulfide |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +85°C |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 120V |
Maximum Current | 600 mA |
Gasket Material | Nitrile |
Series | RSF66P |
Standards Met | WRAS |
Current Rating | 600 mA |
