Cynergy3 SSF28 Series Vertical Stainless Steel Float Switch, Float, 350mm Cable, Direct Load, 300V ac Max, 300V dc Max
- RS Stock No.:
- 454-9127
- Mfr. Part No.:
- SSF28X100
- Brand:
- Sensata / Cynergy3
- RS Stock No.:
- 454-9127
- Mfr. Part No.:
- SSF28X100
- Brand:
- Sensata / Cynergy3
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

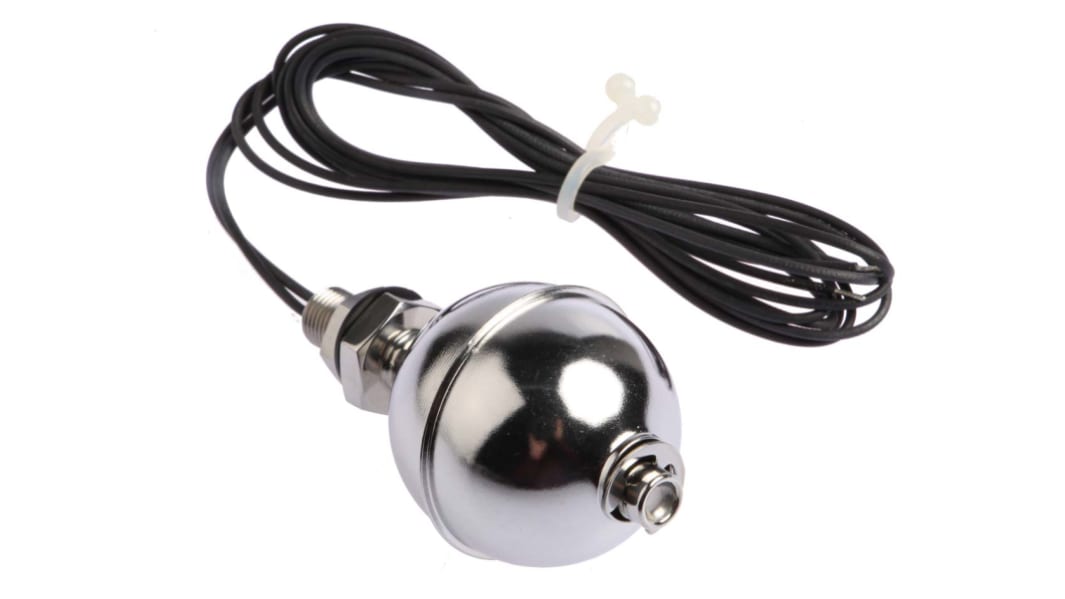

Sensata Cynergy3 Top Mount Vertical Float Switch, Direct Load, 350mm - SSF28 Series - SSF28X100
Accurately regulate liquid levels in your tank or sump with this efficient Sensata Cynergy3 float switch. It's a vertical, internally mounted device that gives reliable switching at higher pressures of up to 40bar. You can mount it on the top or bottom of a container, making it the ideal solution when there's no side access to a tank. NO (normally open) and NC (normally closed) options allow for flexibility in the design of your electrical circuit.
Features & Benefits
• Wide operating temperature range of -10°C to +120°C for use in a variety of demanding environments
• Robust stainless-steel body protects against corrosion and offers reliably long service life
• Robust stainless-steel body protects against corrosion and offers reliably long service life
How does a float switch work?
A float switch is commonly used in a tank to control the minimum and maximum liquid levels. When the fluid level reaches a minimum level, the switch signals a pump to operate and refill the tank. When the maximum liquid level is reached, the switch tells the pump to stop working. This means the fluid levels in the tank are maintained within a pre-set range.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Vertical |
Switch Output | Direct Load |
Body Material | Stainless Steel |
Cable Length | 350mm |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +120°C |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 300V |
Maximum Current | 500 mA |
Maximum Pressure | 40bar |
Series | SSF28 |
Current Rating | 500 mA |
