RS PRO Horizontal Polyphenylene Sulfide Float Switch, Float, 1m Cable, NO/NC, 240V ac Max, 120V dc Max
- RS Stock No.:
- 191-9510
- Brand:
- RS PRO
12 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£17.02
(exc. VAT)
£20.42
(inc. VAT)
| Units | Per unit |
| 1 + | £17.02 |
- RS Stock No.:
- 191-9510
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

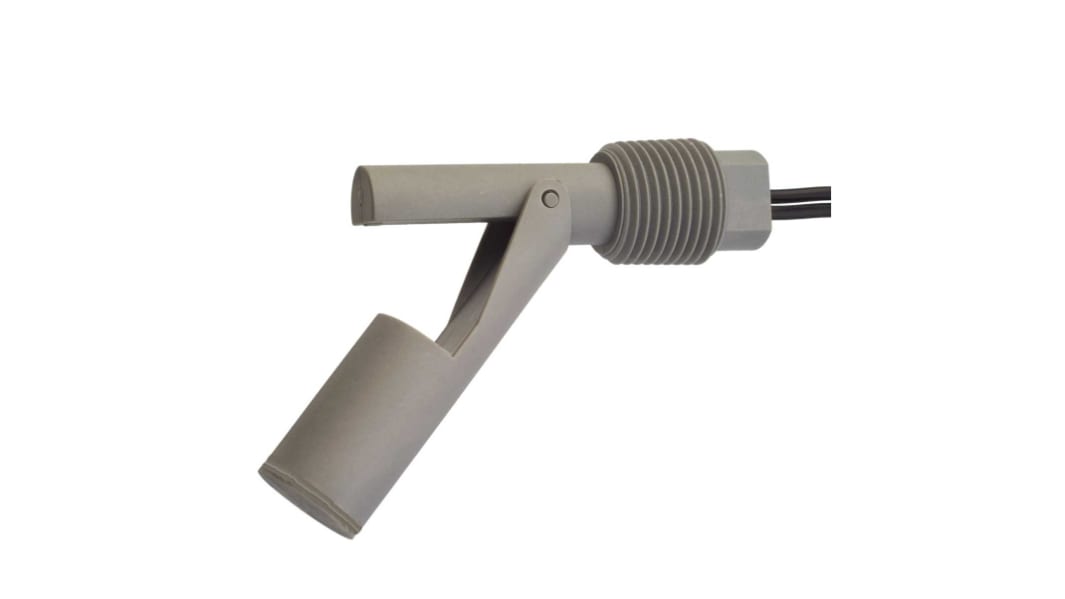

RS PRO Float Switch
The RS PRO horizontal mounting float switch has an output of NO/NC with a maximum switching voltage of 240VAC and switching current of 0.6A. It is made up of polypropylene sulphide and has a gasket material of nitrile. The switch can be fitted to achieve either make on the rise (N/O) or make on fall (N/C) action by simply rotating through 180°.
Features and Benefits
• Leadout: 100cm PVC 16/0.2
• Operating temperature ranges between -10°C and 120°C
• Cable length: 1m
• Operating temperature ranges between -10°C and 120°C
• Cable length: 1m
Applications
• Diesel generators
• Hydraulic oil
• Gearbox oil levels
• Hydraulic oil
• Gearbox oil levels
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
• BS EN 61340-5-1: 2007
Specifications
Attribute | Value |
|---|---|
| Device Type | Float |
| Mounting Type | Horizontal |
| Switch Output | NO/NC |
| Body Material | Polyphenylene Sulfide |
| Cable Length | 1m |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +120°C |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 120V |
| Maximum Current | 600 mA |
| Current Rating | 600 mA |
