Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

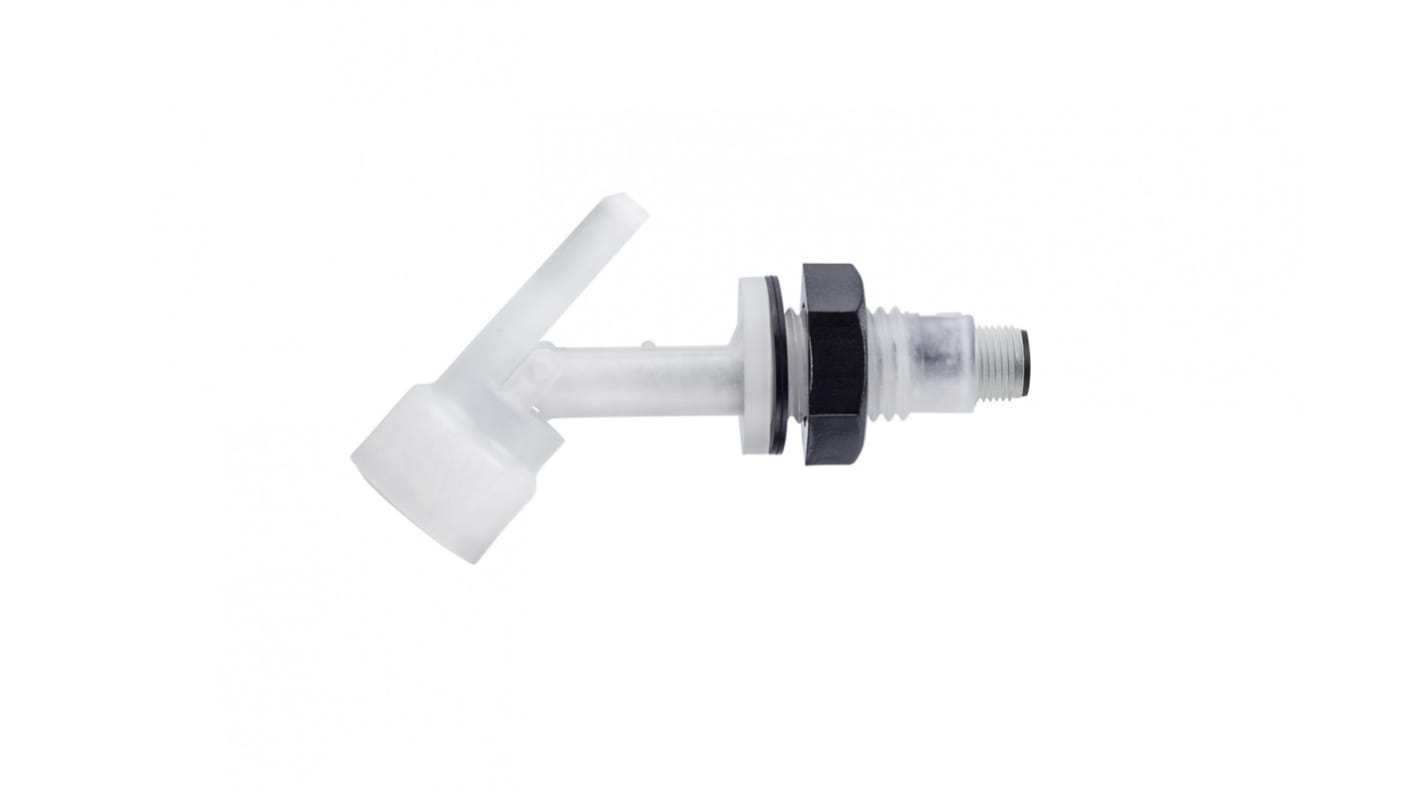

These devices are particularly suitable for detecting low levels of liquids in the bottom of tanks and containers, and for lower SG liquids. Typical applications include vending machines, commercial washing machines and evaporator units. This float switch series is designed as a compact internal fitting device, with a wide range of options, making this ideal for size sensitive applications. Mounting of this series requires access to the inside of the tank. They are manufactured in a variety of materials with a choice of gasket materials, to suit most commonly used liquids. The switch action may be reversed by rotating the device through 180º. Available with flying leads or M12 socket for electrical connection. Cable sets with M12 plugs are also available.
Compact design
Very low level sensing
Suitable for low specific gravity liquids
Flying Lead or M12 plug connection
Available in Nylon, Polypropylene or PPS
Very low level sensing
Suitable for low specific gravity liquids
Flying Lead or M12 plug connection
Available in Nylon, Polypropylene or PPS
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Threaded |
Switch Output | NO/NC |
Body Material | Polypropylene |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +100°C |
Maximum AC Voltage | 240V |
Maximum DC Voltage | 120V |
Maximum Current | 600 mA |
Gasket Material | Nitrile |
Current Rating | 600 mA |
