Sensata / Cynergy3 LLF70 Series Horizontal External Polyphenylene Sulfide Float Switch, SPNO, 300V ac Max, 300V dc Max
- RS Stock No.:
- 174-8403
- Mfr. Part No.:
- LLF76HNP
- Brand:
- Sensata / Cynergy3
Available to back order for despatch 05/07/2024
Added
Price Each
£38.24
(exc. VAT)
£45.89
(inc. VAT)
Units | Per unit |
1 + | £38.24 |
- RS Stock No.:
- 174-8403
- Mfr. Part No.:
- LLF76HNP
- Brand:
- Sensata / Cynergy3
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

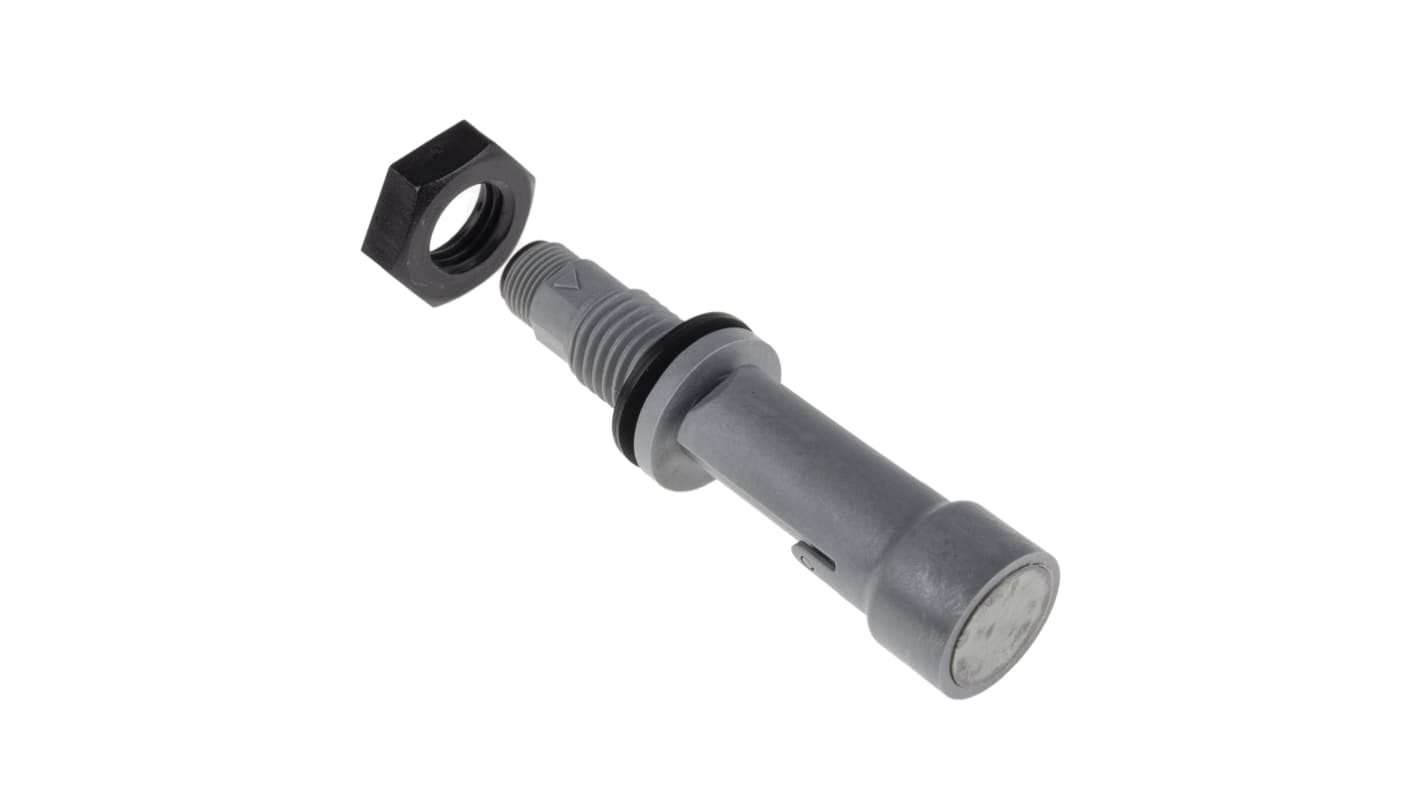

Sensata Cynergy3 Float Switch, Horizontal External Mounting Type, 300V AC/DC Maximum Switching Voltage - LLF70 Series - LLF76HNP
This Sensata Cynergy3 horizontal external float switch is ideal for regulating liquid levels in your low-volume containers. Thanks to its must-close level of 1mm and must-open level of 10mm, it's a reliable choice for detecting low levels of fluid. Its PPS body is resistant to chemicals for use in demanding applications. It comes with a nitrile gasket that's resistant to wear and corrosion to ensure a leakproof seal. You can use this float switch in auxiliary tanks, vending machines or commercial dishwashers.
Features & Benefits
• M12 connection makes it easy to connect to a power source
• Switch action is reversible for versatile use
• Maximum switching voltage of 300V AC/DC for use in low-power systems
• Maximum switching current of 1A for energy efficiency
• Switch action is reversible for versatile use
• Maximum switching voltage of 300V AC/DC for use in low-power systems
• Maximum switching current of 1A for energy efficiency
How can I install this float switch?
You can install this float switch on the side of your tank through the outside, so there's no need to access the inside of the tank. It has a threaded connection that makes it simple to install.
Specifications
Attribute | Value |
---|---|
Mounting Type | Horizontal External |
Switch Output | SPNO |
Body Material | Polyphenylene Sulfide |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +120°C |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 300V |
Maximum Current | 1 A |
Gasket Material | Nitrile |
Series | LLF70 |
Current Rating | 1 A |
Standards Met | UL, WRAS |
