Sensata / Cynergy3 MC Series Cable Mount Stainless Steel 304 Float Switch, Float, 5m Cable, NO, 60V dc Max
- RS Stock No.:
- 124-2598
- Mfr. Part No.:
- MC05A/RS
- Brand:
- Sensata / Cynergy3
1 In stock - FREE next working day delivery available
Added
Price Each
£172.00
(exc. VAT)
£206.40
(inc. VAT)
Units | Per unit |
1 + | £172.00 |
- RS Stock No.:
- 124-2598
- Mfr. Part No.:
- MC05A/RS
- Brand:
- Sensata / Cynergy3
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

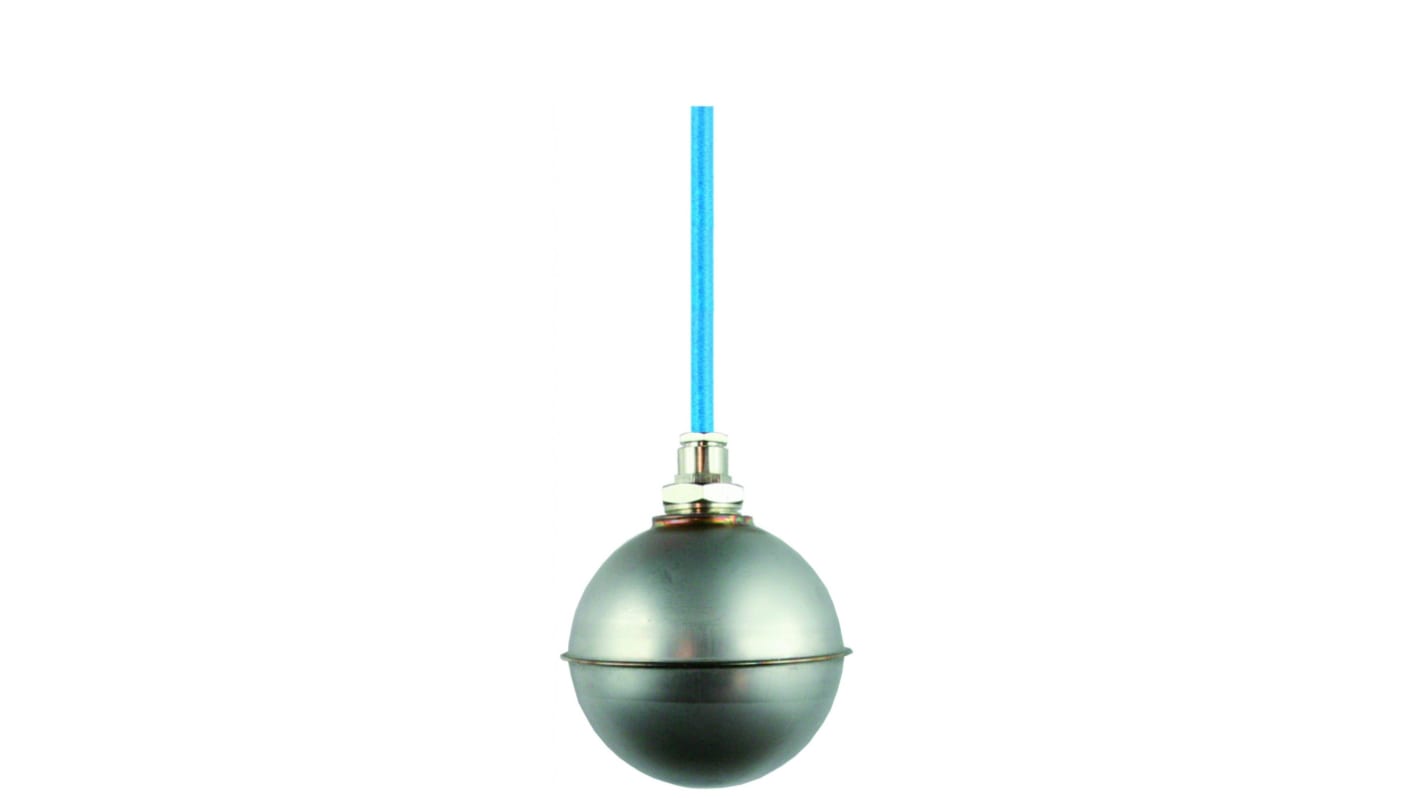

High Temperature Cable Float Switch
The Cynergy3 cable float switch are manufactured from 304 AISI stainless steel and can be used to control liquids up to a temperature of +130°C. The float switch is unaffected by condensation and humidity and the cable has a protective outer sheath to protect against high temperatures.
The float switch contains a micro-switch with gold plated contacts that have a life cycle of up to 200,000 operations and is hermetical sealed inside the float for added protection. Installation can be through a side wall in the tank or from the top of the tank using a counterweight (provided).
The float switch contains a micro-switch with gold plated contacts that have a life cycle of up to 200,000 operations and is hermetical sealed inside the float for added protection. Installation can be through a side wall in the tank or from the top of the tank using a counterweight (provided).
Features and Benefits
Up to 130 Degrees C operation
Cable Mounted
Polyurethane or Silicone Cable
Supplied with Counterweight
Cable Mounted
Polyurethane or Silicone Cable
Supplied with Counterweight
Sensata Cynergy3 Float Switch, 250mA Maximum Current, 4 Bar Maximum Pressure - MC Series - MC05A/RS
For automatic level control of hot liquids, choose this cable float switch from Sensata Cynergy3. Its outer casing is made of 304-grade stainless steel for resistance to corrosion and wear, so it's durable in demanding applications. As its switching element has a long electrical lifespan of up to 200,000 operations, it's a long-lasting choice. You can conveniently choose to mount this device on the top or side of your tank, giving you flexible installation options. Its wide operating temperature range of 0°C to +80°C makes it a good choice for use in large industrial hot water tanks.
Features & Benefits
• Maximum pressure of up to 4 bar for use in low-pressure applications
• Long cable length of 5m for a flexible connection
• Maximum voltage rating of 60V DC for use in low-power systems
• Long cable length of 5m for a flexible connection
• Maximum voltage rating of 60V DC for use in low-power systems
Can I use this float switch in a kerosene storage tank?
Yes, this float switch has a polyurethane cable that's resistant to oil and grease, so it's safe to use in harsh media such as kerosene.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Cable Mount |
Switch Output | NO |
Body Material | Stainless Steel 304 |
Cable Length | 5m |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +80°C |
Maximum DC Voltage | 60V |
Maximum Current | 250 mA |
Maximum Pressure | 4bar |
Series | MC |
Standards Met | CE |
