Sensata / Cynergy3 RSF80 Series Horizontal Polyvinylidene Fluoride Float Switch, Float, NO/NC, 300V ac Max, 300V dc Max
- RS Stock No.:
- 124-2588
- Mfr. Part No.:
- RSF87HP/RS
- Brand:
- Sensata / Cynergy3
27 In stock - FREE next working day delivery available
Added
Price Each
£35.97
(exc. VAT)
£43.16
(inc. VAT)
Units | Per unit |
1 + | £35.97 |
- RS Stock No.:
- 124-2588
- Mfr. Part No.:
- RSF87HP/RS
- Brand:
- Sensata / Cynergy3
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

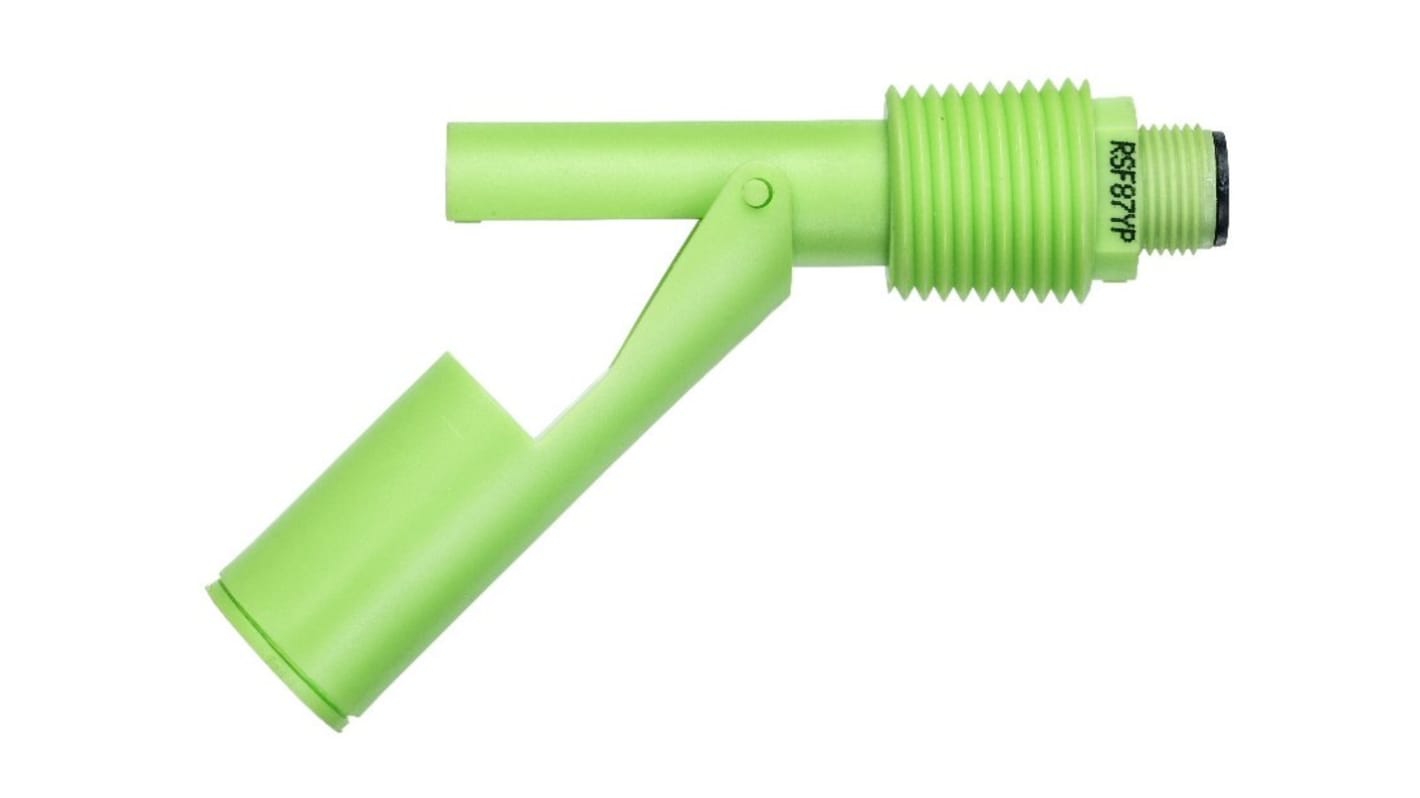

Cynergy3 Horizontal Float Switch - External Fitting
These Cynergy3 horizontal float switches are compact in size and designed to be mounted from the outside of the tank. They are available with an M12 connector plug or 1m flying lead connection. Horizontal level switches offer long-term reliability from a simple and trusted design that requires no complex setup or calibration procedures. Switch function can be easily changed from normally open to normally closed by simply rotating through 180° during installation.
Features and Benefits
NPT External Mounting
Flying lead or M12 plug connection
25VA or 100VA versions
Flying lead or M12 plug connection
25VA or 100VA versions
Applications
Cynergy3 vertical float switches are suitable for a wide range of applications including
Diesel generators
Hydraulic oil level
Gearbox oil level
Diesel generators
Hydraulic oil level
Gearbox oil level
Sensata Cynergy3 Horizontal Float Switch, 300V AC/DC, PVDF - RSF80 Series - RSF87HP/RS
Monitor liquid levels in a tank with this horizontal float switch from Sensata Cynergy3. You can rotate it 180° to change the switch action, so it's suitable for sensing either rising or falling liquid levels. The unit is made of polyvinylidene fluoride (PVDF), which is compatible with a broad range of fluids, including diesel and hydraulic oil. This material is also strong and abrasion-resistant for long-lasting use in demanding applications. As this float switch is designed for external mounting through the tank wall, there's no need to access the interior of the tank. You'll find this device used in diesel generators and gearbox oil tanks.
Features & Benefits
• Wide operating temperature range of -10°C to +105°C for use in demanding environments
• Maximum switching current of 1A for energy efficiency
• M12 circular connector socket for ease of setup
• Maximum switching current of 1A for energy efficiency
• M12 circular connector socket for ease of setup
How long is the float switch?
This float switch has an overall length of 90mm, which includes the 18mm threaded section. This ensures an ample reach into the tank for accurate liquid level detection.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Horizontal |
Switch Output | NO/NC |
Body Material | Polyvinylidene Fluoride |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +105°C |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 300V |
Maximum Current | 1 A |
Series | RSF80 |
Standards Met | UL |
