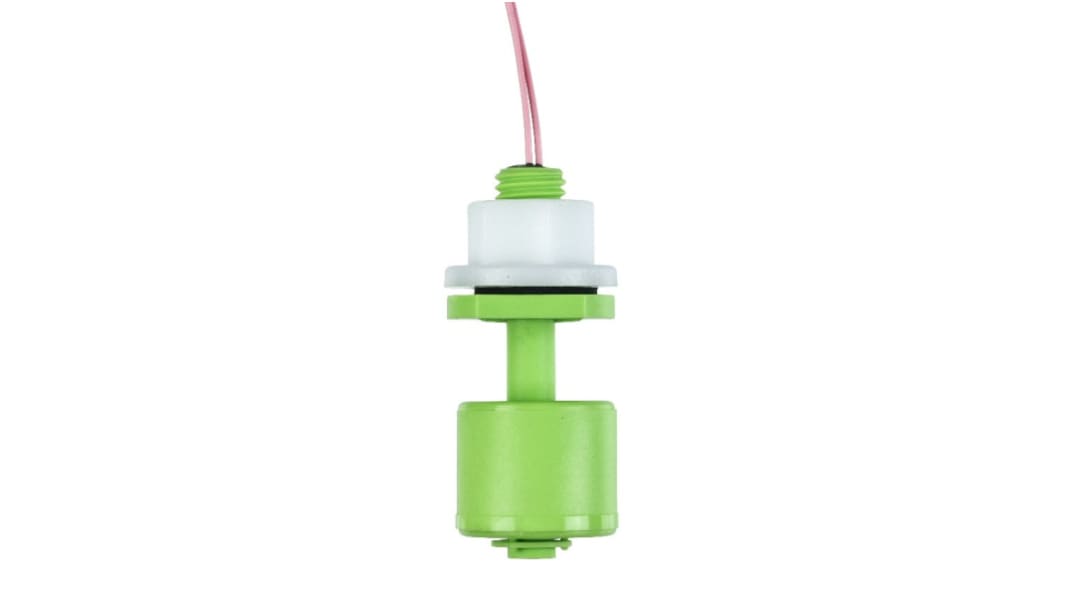

Sensata / Cynergy3 RSF50 Series Vertical Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 300V ac Max,
- RS Stock No.:
- 124-2575
- Mfr. Part No.:
- RSF57H100GB/RS
- Brand:
- Sensata / Cynergy3
26 In stock - FREE next working day delivery available
Added
Price Each
£50.44
(exc. VAT)
£60.53
(inc. VAT)
Units | Per unit |
1 + | £50.44 |
- RS Stock No.:
- 124-2575
- Mfr. Part No.:
- RSF57H100GB/RS
- Brand:
- Sensata / Cynergy3
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Cynergy3 Vertical Internal Fitting Float Switch
A range of Cynergy3 single switching point, vertical fluid level switches. These level switches can be mounted on the top or bottom of the tank but requires access to the tanks interior. Vertical level switches offer long-term reliability and minimal maintenance due to the simplistic construction. The switch can be changed from normally open to normally closed simply by removing and inverting the float.
Features and Benefits
Compact Design
Available in Nylon, Polypropylene, PPS and PVDF
25VA and 100VA
1/8 NPT and M12 thread options
Viton or Nitrile Gasket
Available in Nylon, Polypropylene, PPS and PVDF
25VA and 100VA
1/8 NPT and M12 thread options
Viton or Nitrile Gasket
Applications
Cynergy3 vertical float switches are suitable for a wide range of applications including
Vending machines
Printing systems
Chemical dosing equipment
Vending machines
Printing systems
Chemical dosing equipment
Sensata Cynergy3 Vertical Float Switch, 1m Cable, NO/NC - RSF50 Series - RSF57H100GB/RS
Need a reliable way to monitor liquid levels in your tank? Turn to this vertical float switch from Sensata Cynergy3. It can be fitted to the top or the bottom of the tank, so it's suitable for use in tanks where there's no side access. The polyvinylidene fluoride (PVDF) body material is resistant to wear and chemicals for use in heavy-duty applications. Its broad operating temperature range of -10°C to +105°C means it's suitable for use in demanding industrial environments. Vertical float switches like this one are commonly used in vending machines and chemical dosing equipment.
Features & Benefits
• Viton gasket maintains a secure seal to prevent leaks
• Switch action can be changed from NO to NC by removing and inverting the float for versatile use
• Ample cable length of 1m for a flexible electrical connection
• Cable sheath made of PTFE for resistance to chemicals, heat and wear
• M12-sized mounting thread for ease of assembly
• Switch action can be changed from NO to NC by removing and inverting the float for versatile use
• Ample cable length of 1m for a flexible electrical connection
• Cable sheath made of PTFE for resistance to chemicals, heat and wear
• M12-sized mounting thread for ease of assembly
Is this float switch energy-efficient?
Yes, this float switch has a low maximum switching current of just 1A, so it's an energy-efficient choice.
Specifications
Attribute | Value |
---|---|
Device Type | Float |
Mounting Type | Vertical |
Switch Output | NO/NC |
Body Material | Polyvinylidene Fluoride |
Cable Length | 1m |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +105°C |
Maximum AC Voltage | 300V |
Maximum DC Voltage | 300V |
Maximum Current | 1 A |
Gasket Material | Viton |
Series | RSF50 |
Standards Met | UL |
- RS Stock No.:
- 124-2575
- Mfr. Part No.:
- RSF57H100GB/RS
- Brand:
- Sensata / Cynergy3
