- RS Stock No.:
- 263-8613
- Mfr. Part No.:
- R987155261
- Brand:
- Bosch Rexroth
Available to back order for despatch when stock is available
Added
Price Each
£403.43
(exc. VAT)
£484.12
(inc. VAT)
Units | Per unit |
1 + | £403.43 |
- RS Stock No.:
- 263-8613
- Mfr. Part No.:
- R987155261
- Brand:
- Bosch Rexroth
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

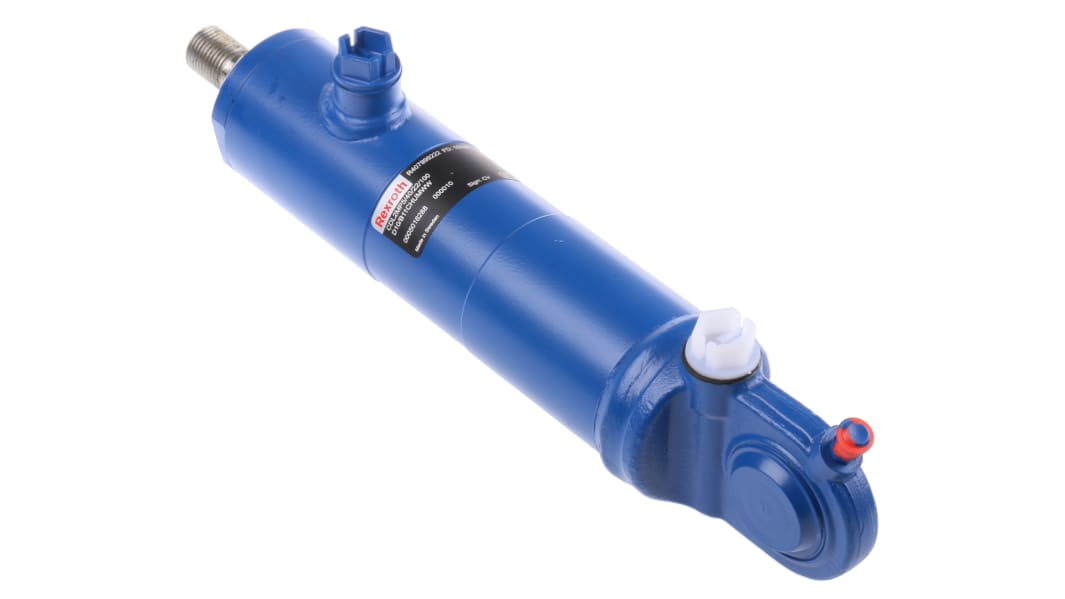

32-63mm Bore Hydraulic Cylinders
Carbon steel body
Recommended hydraulic medium: Mineral oil based fluids
NBR (Nitrile)/Polyurethane seals
240 bar Static Proof Pressure
Hydraulic fluid operating temperature range: -20 to +80°C
160 bar working pressure
Recommended hydraulic medium: Mineral oil based fluids
NBR (Nitrile)/Polyurethane seals
240 bar Static Proof Pressure
Hydraulic fluid operating temperature range: -20 to +80°C
160 bar working pressure
Note
Cleanliness - Maximum degree of contamination of the hydraulic fluid to NAS 1638 class 10. In order to achieve a longer service life, we recommend use of a filtration element with a minimum retention rate of B10 ≥ 75.
Standards
ISO 3320
Cylinders & Rod End Bearings
Hydraulic cylinders with a range of bore sizes and stroke lengths for general purpose and light duty applications. Manufactured to ISO 3320 and compatible with ISO mounting styles and fixings.
Specifications
Attribute | Value |
---|---|
Stroke Length | 100mm |
Bore | 40mm |
Pull Force | 14.02kN |
Manufacturer Series | 1X |
Closed Length | 290mm |
Extended Length | 390mm |
Flow Rate Out | 7.5L/min |
Flow Rate In | 5.3L/min |
Maximum Operating Pressure | 160 bar |
Weight | 850g |
