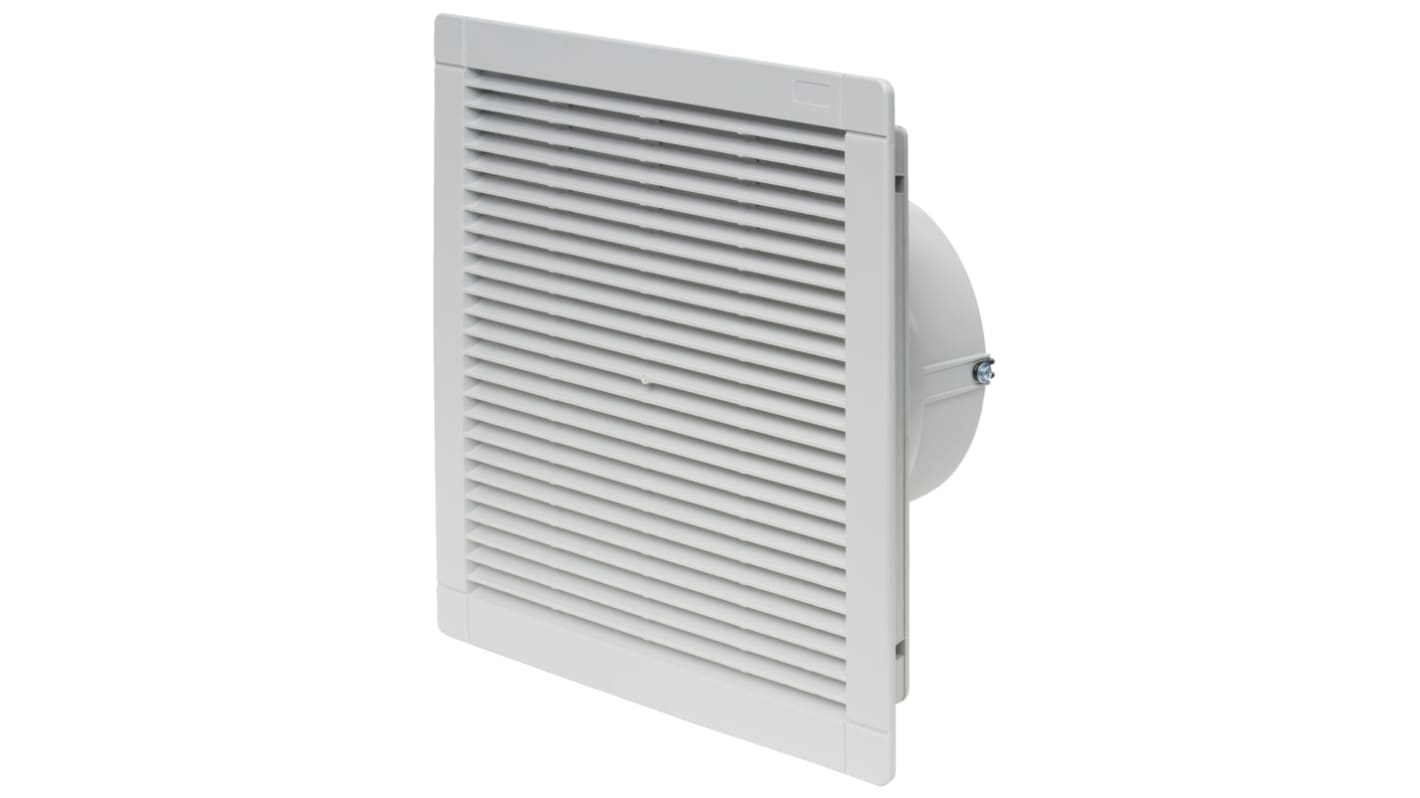

Filter Fan, 320 x 320mm, 630m³/h, 230 V ac, IP54

  • RS Stock No. 184-9914
  • Mfr. Part No. 7F.50.8.230.5630
  • Brand Finder
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Filter Fan for electrical cabinets and enclosures 120 V or 230 V AC versions.

Very low acoustic noise
Minimal depth within enclosure
Air volume (14…470) m³/h (with Exhaust Filter installed in cabinet)
Air volume (24...630) m³/h (free flow)
Operating voltage: 24 VDC, 120 V AC, 230 V AC
Air conditioners
Automatic car-washes
Carousel warehouses
Control panels

Specifications
Attribute Value
Noise Level 72dB(A)
Filtered Air Flow 630m³/h
Input Current 550mA
Input Power Rating 130W
AC or DC Operation AC
Face Dimensions 320 x 320mm
Installation Depth 145mm
Supply Voltage 230 V ac
Face Height 320mm
Face Width 320mm
Series 7F
Special Features Minimal Depth within Enclosure, Very Low Acoustic Noise
IP Rating IP54
Termination Type Wire
Bearing Type Ball
10 In stock for FREE next working day delivery
Price Each
£ 310.53
(exc. VAT)
£ 372.64
(inc. VAT)
Units
Per unit
1 - 4
£310.53
5 +
£301.22
