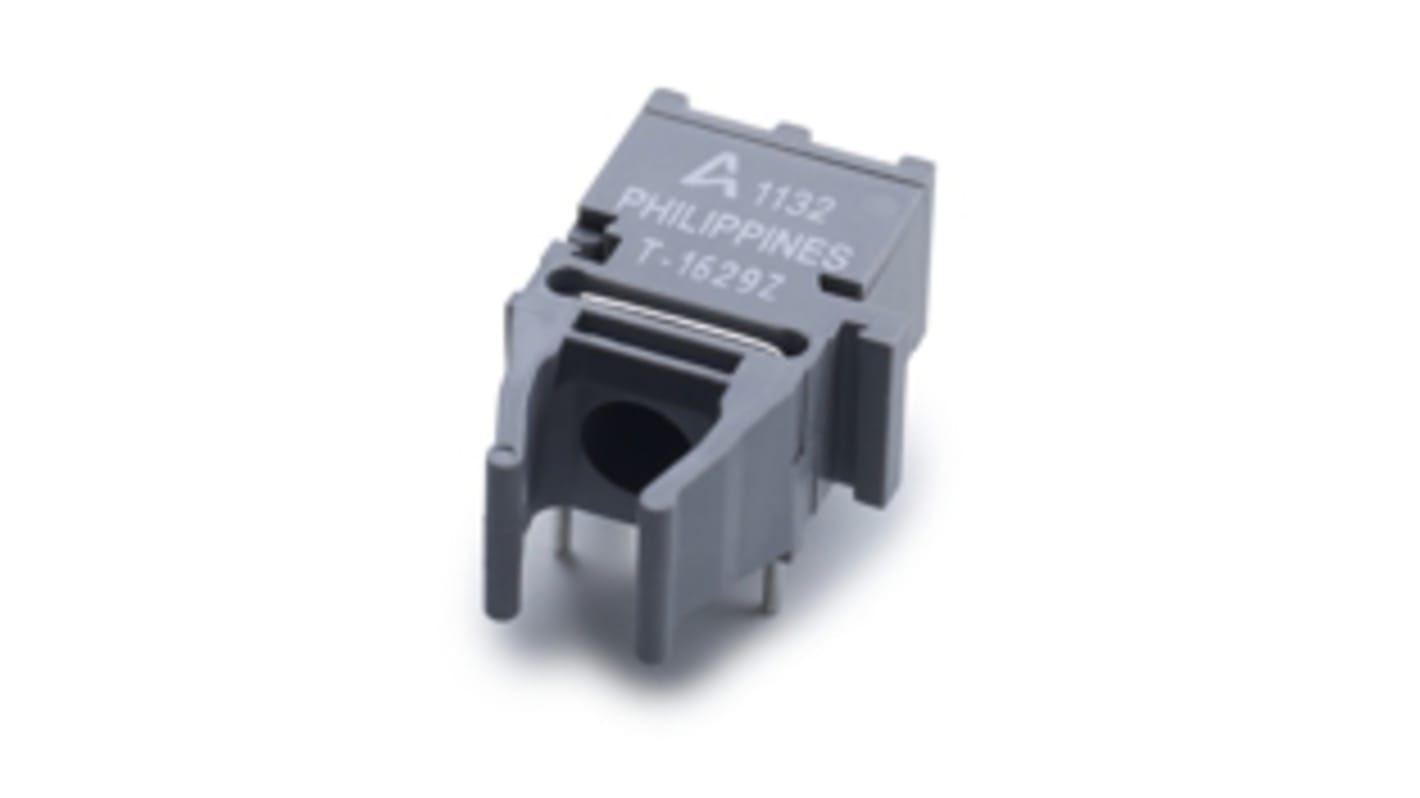

Broadcom AFBR-1629Z, 50Mbit/s Fibre Optic Transmitter 685nm Versatile Link Connector, 18.8 x 12.2 x 7.6mm
- RS Stock No.:
- 189-4752
- Mfr. Part No.:
- AFBR-1629Z
- Brand:
- Broadcom
200 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 200)
£11.41
(exc. VAT)
£13.69
(inc. VAT)
| Units | Per unit | Per Tube* |
| 200 + | £11.41 | £2,282.00 |
| *price indicative | ||
- RS Stock No.:
- 189-4752
- Mfr. Part No.:
- AFBR-1629Z
- Brand:
- Broadcom
Legislation and Compliance
Product Details
AFBR-16xxZ Series Fibre Optic Transmitters
The AFBR-16xxZ transmitter, from Avago Technologies, makes use of a 650nm light emitting diode (LED) source with integrated optics and driver IC for efficient joining with a 1mm polymer optical fibre (POF). The AFBR-16xxZ input is also compatible with TTL logic families. The 3-pin transmitter is packaged in the Versatile Link housing which allows them to be interlocked (N-plexed together) to optimize space and to provide dual connections with the duplex connectors.
The AFBR-16xxZ transmitter and AFBR-26x4Z/25x9Z receivers operate any signal from DC to:
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)
50MBd at up to 50m with 1mm POF,
10MBd at up to 200m
50MBd at up to 120m with 200μm Plastic-Clad Silica (PCS)
Fibre Optics, Avago Technologies
Specifications
Attribute | Value |
|---|---|
| Maximum Data Rate | 50Mbit/s |
| Typical Rise Time | 5 (Max)ns |
| Typical Fall Time | 5 (Max)ns |
| Peak Wavelength | 685nm |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Dimensions | 18.8 x 12.2 x 7.6mm |
| Connector Type | Versatile Link |
| Height | 7.6mm |
| Length | 18.8mm |
| Width | 12.2mm |
| Series | AFBR |
| Forward Voltage | 6 V |
- RS Stock No.:
- 189-4752
- Mfr. Part No.:
- AFBR-1629Z
- Brand:
- Broadcom
