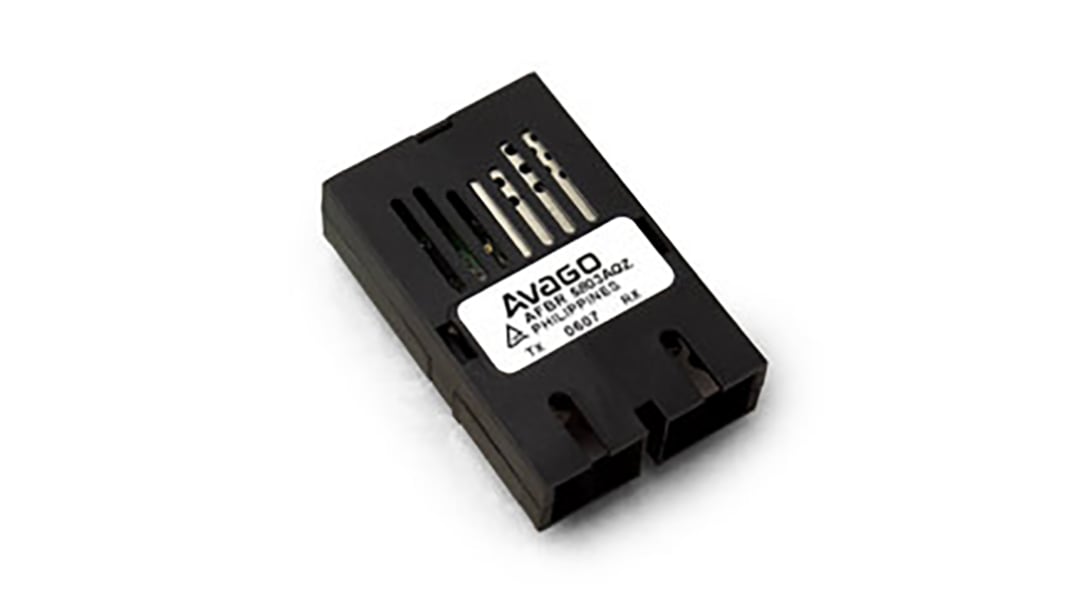

Broadcom AFBR-5803ATQZ Fibre Optic Transceiver, ST Connector, 125Mbit/s, 1380nm 1380nm 9-Pin SIP
- RS Stock No.:
- 189-4768
- Mfr. Part No.:
- AFBR-5803ATQZ
- Brand:
- Broadcom
120 In stock - FREE next working day delivery available
Added
Price Each (In a Tube of 10)
£29.81
(exc. VAT)
£35.77
(inc. VAT)
| Units | Per unit | Per Tube* |
| 10 - 10 | £29.81 | £298.10 |
| 20 - 40 | £29.005 | £290.05 |
| 50 - 90 | £28.23 | £282.30 |
| 100 - 190 | £27.514 | £275.14 |
| 200 + | £26.829 | £268.29 |
| *price indicative | ||
- RS Stock No.:
- 189-4768
- Mfr. Part No.:
- AFBR-5803ATQZ
- Brand:
- Broadcom
Technical Reference
Legislation and Compliance
Product Details
AFBR-5803AQZ/ATQZ Fast Ethernet Transceivers
Fibre Optics, Avago Technologies
Specifications
Attribute | Value |
|---|---|
| Maximum Data Rate | 125Mbit/s |
| Transmitter Typical Rise Time | 1.9ns |
| Transmitter Typical Fall Time | 1.6ns |
| Number of Pins | 9 |
| Mounting Type | Through Hole |
| Dimensions | 43.52 x 25.4 x 12mm |
| Connector Type | ST |
| Peak Transmitter Wavelength | 1380nm |
| Wavelength of Peak Sensitivity | 1380nm |
| Height | 12mm |
| Length | 25.4mm |
| Output Signal Type | ECL, PECL |
| Package Type | SIP |
| Series | AFBR |
| Width | 24.9mm |
- RS Stock No.:
- 189-4768
- Mfr. Part No.:
- AFBR-5803ATQZ
- Brand:
- Broadcom
