Huber & Suhner 24 Port LC Single Mode Simplex Fibre Optic Patch Panel, 1U

  • RS Stock No. 144-2450
  • Mfr. Part No. FL1-BLCAD-2400-SM-000-0O00
  • Brand Huber & Suhner
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

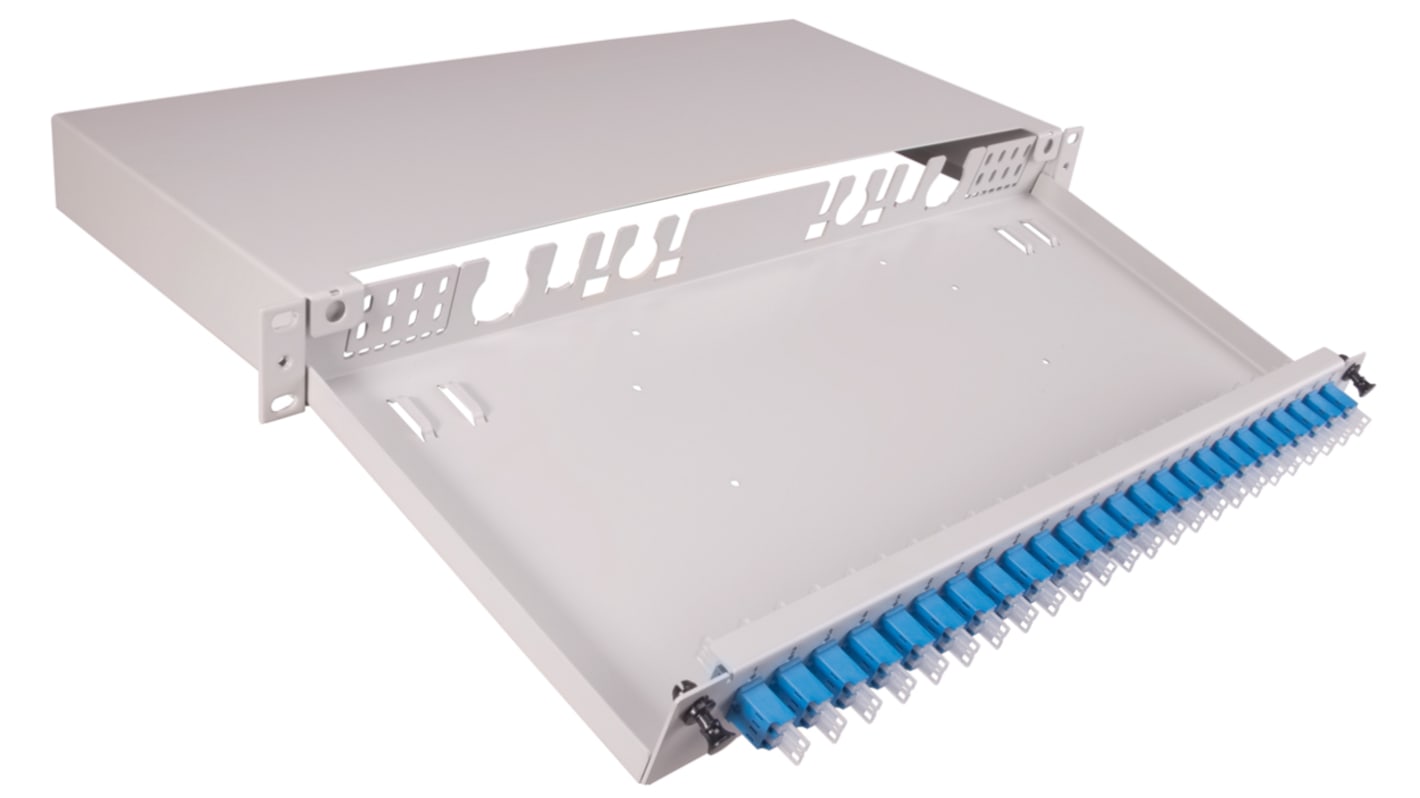

Huber+Suhner Fibreframe Lite Populated Patch Panels LC Adapters

The Fibreframe Lite is a 19” 1U panel constructed from robust solid steel supporting patch or splicing applications. The populated patch panels include 24 x LC duplex adapters with a choice of blue, green or beige flangeless adapters. With a multifunctional back plate, different cables can be brought in to the rear of the panel without exchanging various back plates. A telescopic draw with a tilt of 15° provides easy access to the back of the connectors and cassettes for maintenance purposes. For splicing applications, the panel has the space for 2 x ACS (Advanced Cassette System) cassettes. The ACS cassettes can house 24 fibres and also provide a convenient method of storing any fibre over length securely. A sturdy hinge mechanism allows easy access to fibres without the need for any special tooling.

Features and Benefits

• Standard 19" 1U size
• Robust steel construction
• Multifunctional back plate
• Telescopic draw with a 15° tilt
• Up to 48 fibres per 1U
• ACS splice cassette technology accepting up to 24 fibres per cassette

Applications

• Data centres
• FITH
• Broadband

Huber+Suhner Range

Specifications
Attribute Value
Connector Type LC
Number of Ports 24
Panel Type Patch Panel
Single/Multimode Single Mode
Simplex/Duplex Simplex
Rack Height 1U
Dimensions 448 x 200 x 44mm
Depth 200mm
Height 44mm
Width 448mm
2 In stock - FREE next working day delivery available
Price Each
£ 113.97
(exc. VAT)
£ 136.76
(inc. VAT)
Units
Per unit
1 - 9
£113.97
10 - 19
£102.58
20 +
£91.18
