Broadcom Fibre Optic Connector Fibre Optic Evaluation Kit

  • RS Stock No. 756-0720
  • Mfr. Part No. HFBR-0539Z
  • Brand Broadcom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Evaluation Kit for HFBR-1515BZ and HFBR-2515BZ Fibre Optic Components

The HFBR-0539Z evaluation kit, is used to evaluate Avago fibre optic devices: 650nm transmitter HFBR-1515BZ (stock no. 236-622) and receiver HFBR-2515BZ. Specially designed for use with PROFIBUS, a field bus standard; HFBR-1515BZ and HFBR-2515BZ have ST connectors and can be used with POF or HCS fibre. Applications include: Industrial control data links, factory automation data links, voltage isolation applications, PLCs, motor drives and sensor, meter and actuator interfaces.

Supplied with

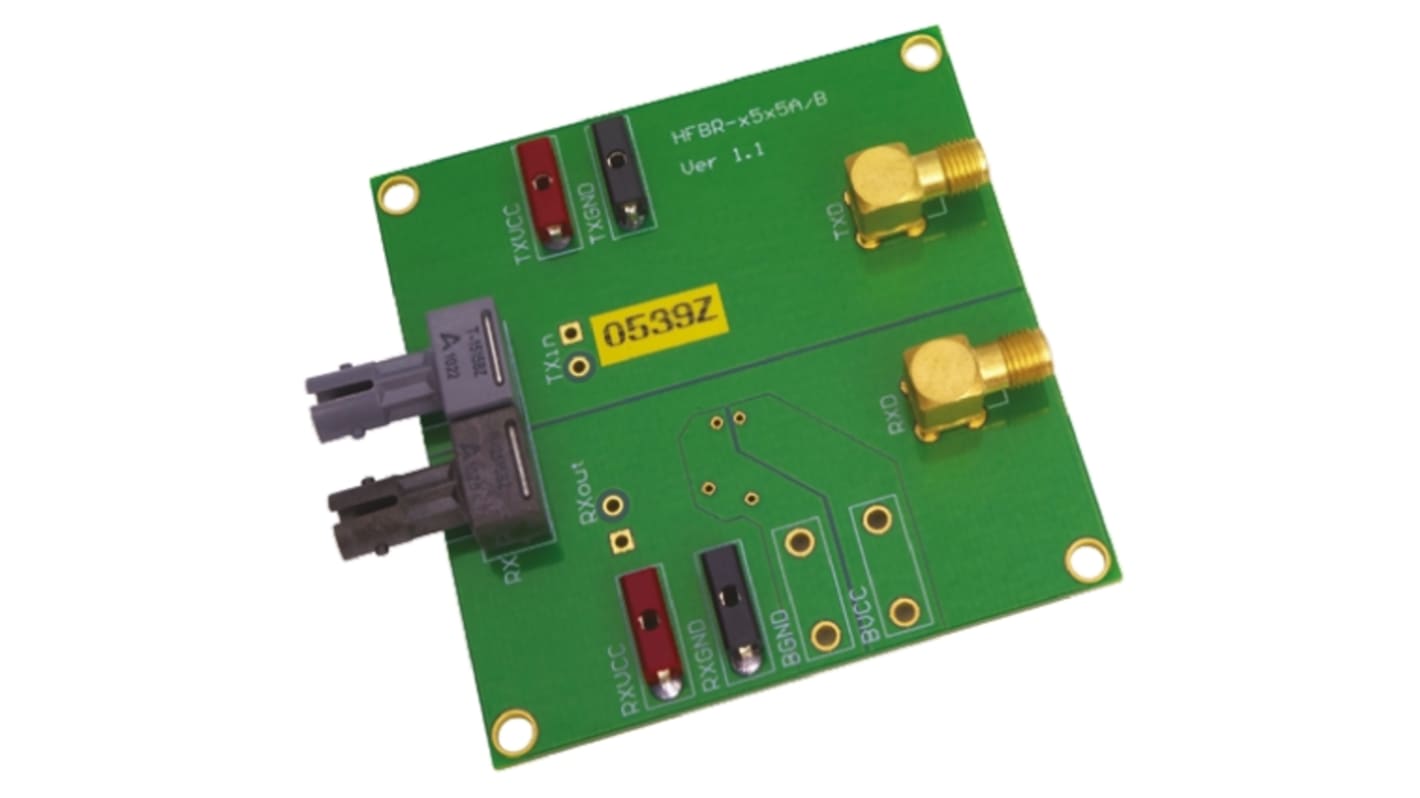

Evaluation board with HFBR-1515BZ and HFBR-2515BZ, 1m HCS cable terminated with ST connectors at both ends, datasheet and user Guide.

Fibre Optic Evaluation Kits, Avago Technologies

Specifications
Attribute Value
Kit Type Evaluation Kit
Kit Contents Datasheets x 2, Documentation, Evaluation Board HFBR-1515BZ, Evaluation Board HFBR-2515BZ, HCS Cable with ST Connector
Available to back order for despatch 19/01/2021
Price Each
£ 54.71
(exc. VAT)
£ 65.65
(inc. VAT)
Units
Per unit
1 - 4
£54.71
5 - 9
£53.23
10 - 24
£51.83
25 - 49
£50.50
50 +
£49.24
