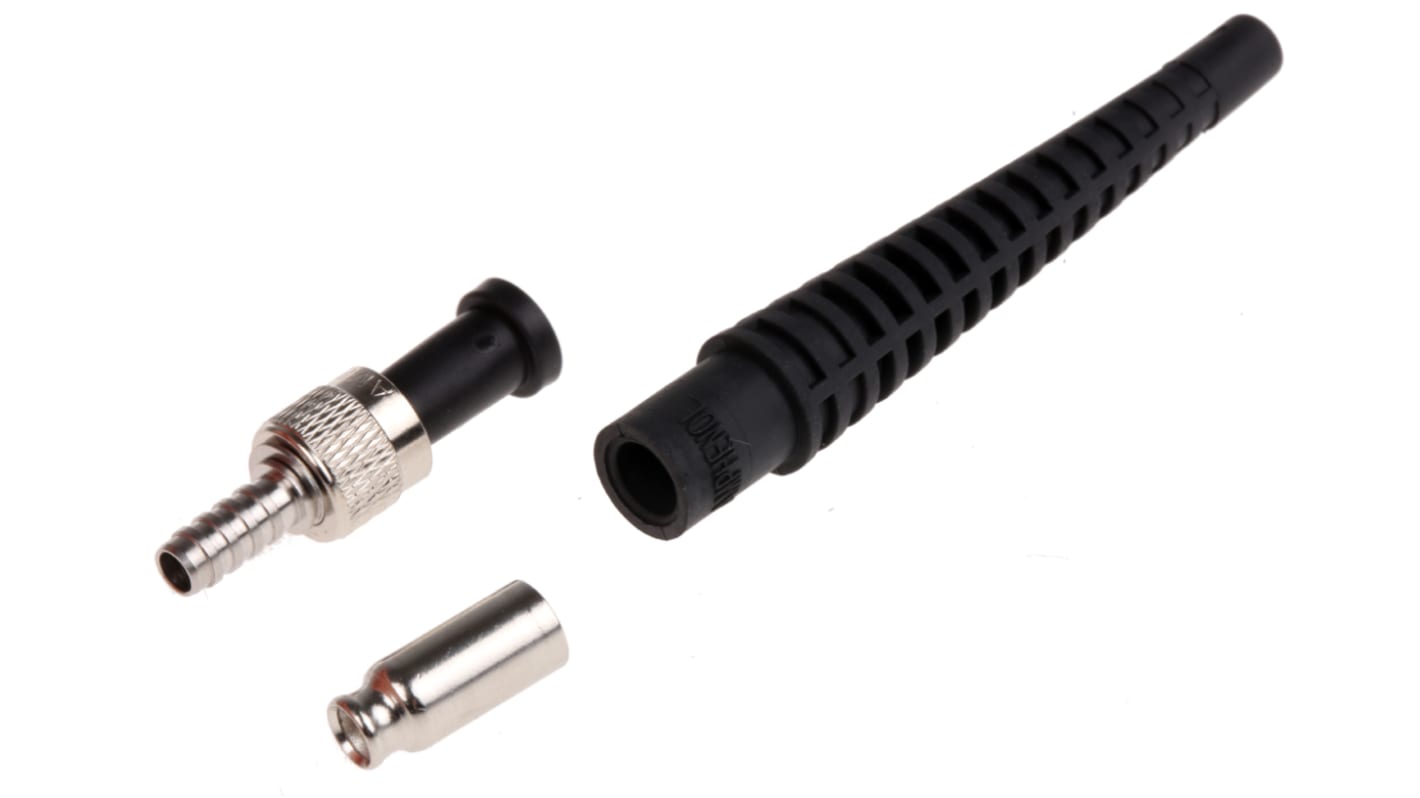

Amphenol 905 Series , SMA Multimode Simplex Fibre Optic Connector 128μm Fibre Size, 0.8dB Insertion Loss

  • RS Stock No. 458-948
  • Mfr. Part No. 905-405-5007
  • Brand Amphenol
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

SMA 905-style Connectors and Accessories

One of the most widely used fibre optic components, this industry-standard connector is suitable for use with both 50/125mm and 62.5/125mm multimode fibres. Use of ceramic ferrules results in much enhanced performance with lower insertion losses and rotational sensitivity. Two options are offered for use with either 2.5mm or 3.0mm outside diameter tight buffered cable. An in-line adaptor for coupling two cables together is also available. All the essential termination tooling is available in this section and the simple termination procedure is outlined in an data sheet.

Note

This recommended tooling is not supplied by Amphenol. Ferrule inner diameter 128 +2, -0 μm.

Specifications
Attribute Value
Series 905
Connector Type SMA
Single/Multimode Multimode
Simplex/Duplex Simplex
Fibre Size 128µm
Insertion Loss 0.8dB
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
72 In stock for FREE next working day delivery
Price Each
£ 12.05
(exc. VAT)
£ 14.46
(inc. VAT)
Units
Per unit
1 - 14
£12.05
15 - 49
£11.20
50 +
£10.73
