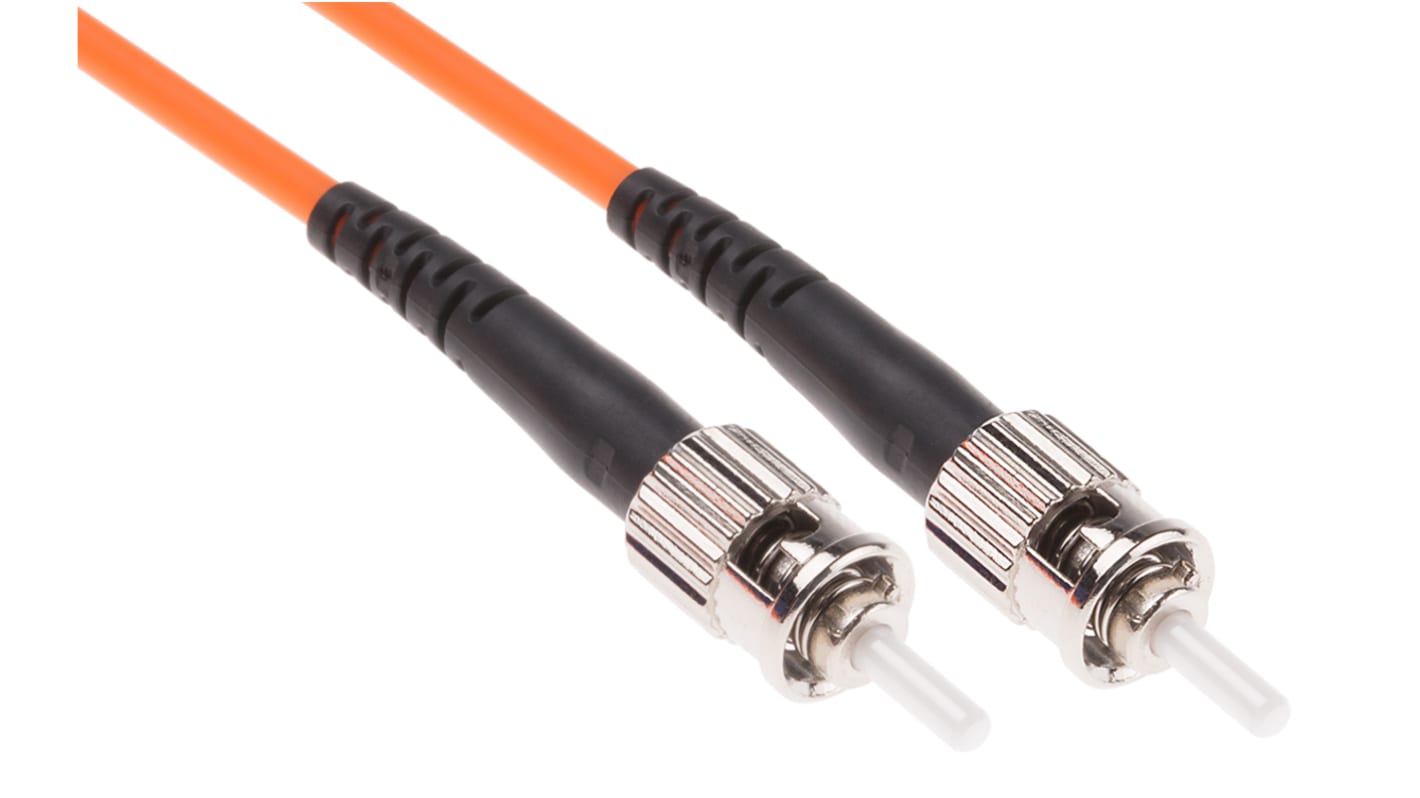

RS PRO ST to ST Simplex Multi Mode OM1 Fibre Optic Cable, 62.5/125μm, Orange, 10m
- RS Stock No.:
- 535-7373
- Brand:
- RS PRO
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£8.69
(exc. VAT)
£10.43
(inc. VAT)
| Units | Per unit |
| 1 - 14 | £8.69 |
| 15 - 49 | £8.26 |
| 50 + | £7.81 |
- RS Stock No.:
- 535-7373
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details
RS Pro Standard Fibre Patch Cords - ST to ST
The RS Pro multimode, fibre optic cable has a straight tip (ST) to straight tip (ST) connector with a twist lock coupling that are easy to insert and remove.
The low smoke zero halogen (LSZH) cables come in OM1 and OM 2 which both work well with LED based equipment.
The low smoke zero halogen (LSZH) cables come in OM1 and OM 2 which both work well with LED based equipment.
Features and Benefits
• Orange sheath colour
• Available in Simplex and Duplex configurations
• Polished ceramic ferrules
• Cost effective
• Various lengths available
• Available in Simplex and Duplex configurations
• Polished ceramic ferrules
• Cost effective
• Various lengths available
Caution
Do not exceed the minimum bend radius (30mm.)
Standards
Flame resistance IEC 60332-1
Specifications
Attribute | Value |
|---|---|
| Connector 1 | ST |
| Length | 10m |
| Connector 2 | ST |
| Propagation Mode | Multi Mode |
| Terminated/Unterminated | Terminated |
| Core Diameter | 62.5/125µm |
| Sheath Colour | Orange |
| Cable Construction | Simplex |
| Fibre Type | OM1 |
| Maximum Operating Temperature | +85°C |
| Sheath Material | Low Smoke Zero Halogen (LSZH) |
| Minimum Operating Temperature | -40°C |
| Attenuation | 0.3 dB |
| Standards Met | IEC 60332-1, IEC 61300-3-4, IEC 61574 |
| Maximum Pulling Tension | 50N |
| Minimum Bend Radius | 30 mm |
- RS Stock No.:
- 535-7373
- Brand:
- RS PRO
