Molex Premise Networks SC to SC Multimode Duplex Fibre Optic Adapter

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

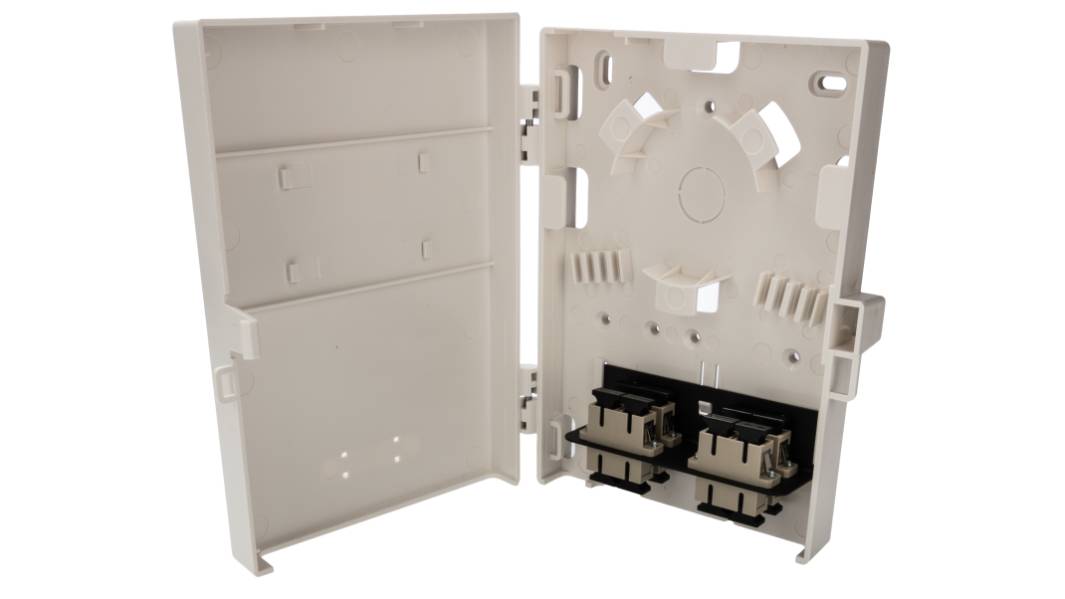

Molex Fibre Wall Enclosure - 601 Series

601 series fibre management interface units for splicing and direct termination of ST and SC connections with multi-mode performance. These 601 series fibre management interface units are wall mounting with a lockable hinged front cover and allow access for patching through the top, bottom and rear of the unit. The adaptors are mounted on modules which snap into the unit, the splice holders are designed to accept up to 8 fusion splice protectors or mechanical splices. An accessory kit is supplied with these 601 series fibre management interface units which consists of cable ties, labelling and mounting kits.
Stock number 362-9418 is a 6 port enclosure for 6 ST adapters
Stock number 362-9424 is an 8 port enslosure for 4 SC duplex adapters

Specifications
Attribute Value
Connector Type SC to SC
Single/Multimode Multimode
Simplex/Duplex Duplex
Connector Type A SC
Connector Type B SC
8 In stock for FREE next working day delivery
Price Each
£ 60.77
(exc. VAT)
£ 72.92
(inc. VAT)
Units
Per unit
1 - 14
£60.77
15 +
£58.26
