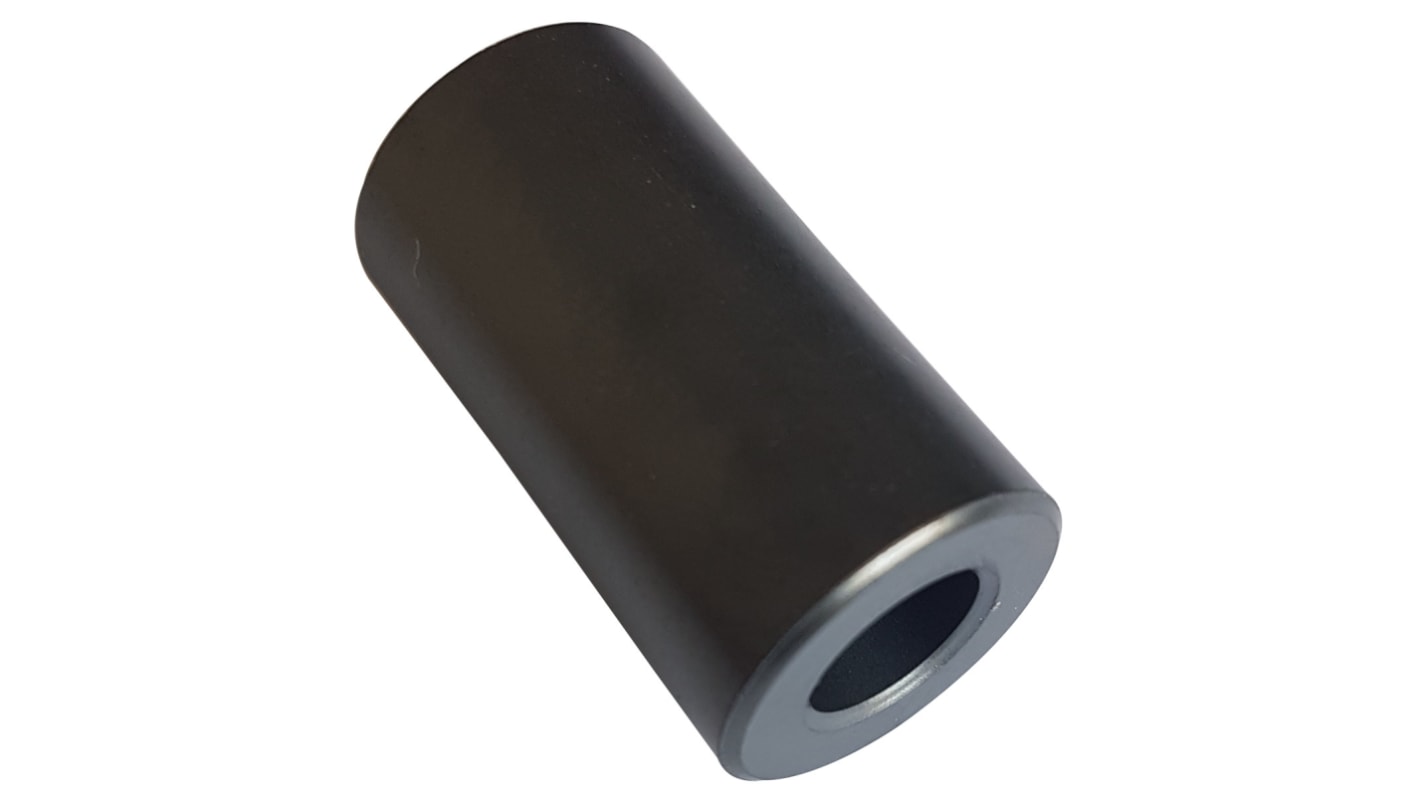

RS PRO No Ferrite Sleeve, 15.88 Dia. x 28.5mm, For EMI Suppression, Apertures: 1, Diameter 7.87mm
- RS Stock No.:
- 124-9621
- Brand:
- RS PRO
Discontinued product
- RS Stock No.:
- 124-9621
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
RS Pro Ferrite Sleeves - EMI Supression
These RS Pro ferrite sleeves are used to suppress high frequency noise in a cable. The cable to be screened is passed through the bore of the ferrite sleeve which them absorbs energy from the cable.
Specifications
Attribute | Value |
|---|---|
| Application | EMI Suppression |
| Material | Nickel Zinc |
| Impedance at 25 MHz | 138Ω |
| Key | No |
| Openable | No |
| Outer Dimensions | 15.88 Dia. x 28.5mm |
| Impedance at 100 MHz | 175Ω |
| Aperture Diameter | 7.87mm |
| Number of Apertures | 1 |
