Fan Filter, Intake Filter, 124 x 124mm, Synthetic Fibre

  • RS Stock No. 916-0063
  • Mfr. Part No. 11881.0-30
  • Brand STEGO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

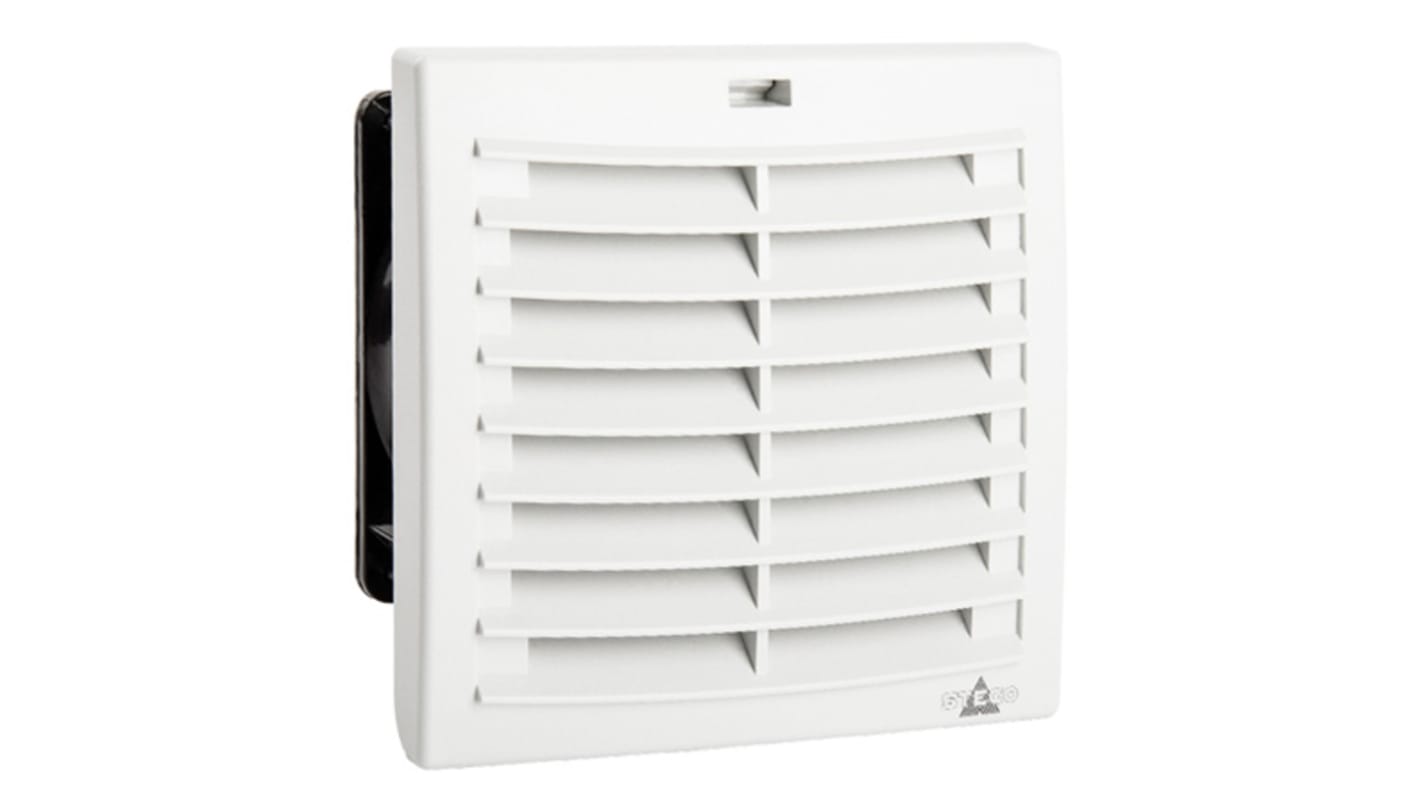

STEGO Filter Fans

The STEGO intake filter fan plus FPO uses a new air-flap outlet technology for the air outlet and thus reaches a high degree of airflow. The frame has 4 built-in ratchet braces for mounting. The filter is made of synthetic fibre. The filter is available with a length of 124mm and a width of 124mm. The interior temperature of an enclosure can be reduced by channelling cooler filtered outside air into the enclosure, thus expelling heated internal air. The resulting airflow prevents the formation of localized hot pockets in installations and protects electronic components from overheating. It comes with a filter fan in the lower part of the enclosure which ensures that fresh air is fed into the enclosure. This system consists of a filter fan and an exit filter mat. The FPO system is composed of an intake filter and an exit filter fan.

Features and Benefits

Easy mounting
Protection type test/Environmental rating by independent testing institutes
Two systems for optimal airflow
Standard enclosure cut-out sizes

Applications

Electronics labs
Electrical labs

Certifications

IP54 rated
UL approved

Specifications
Attribute Value
Filter Type Intake Filter
Dimensions 124 x 124mm
Filter Material Synthetic Fibre
Length 124mm
Width 124mm
Series Filter Fan Plus FPO
Available to back order for despatch 17/08/2020
Price Each
£ 20.55
(exc. VAT)
£ 24.66
(inc. VAT)
Units
Per unit
1 - 4
£20.55
5 - 11
£18.92
12 - 24
£17.27
25 - 49
£15.61
50 +
£13.95
