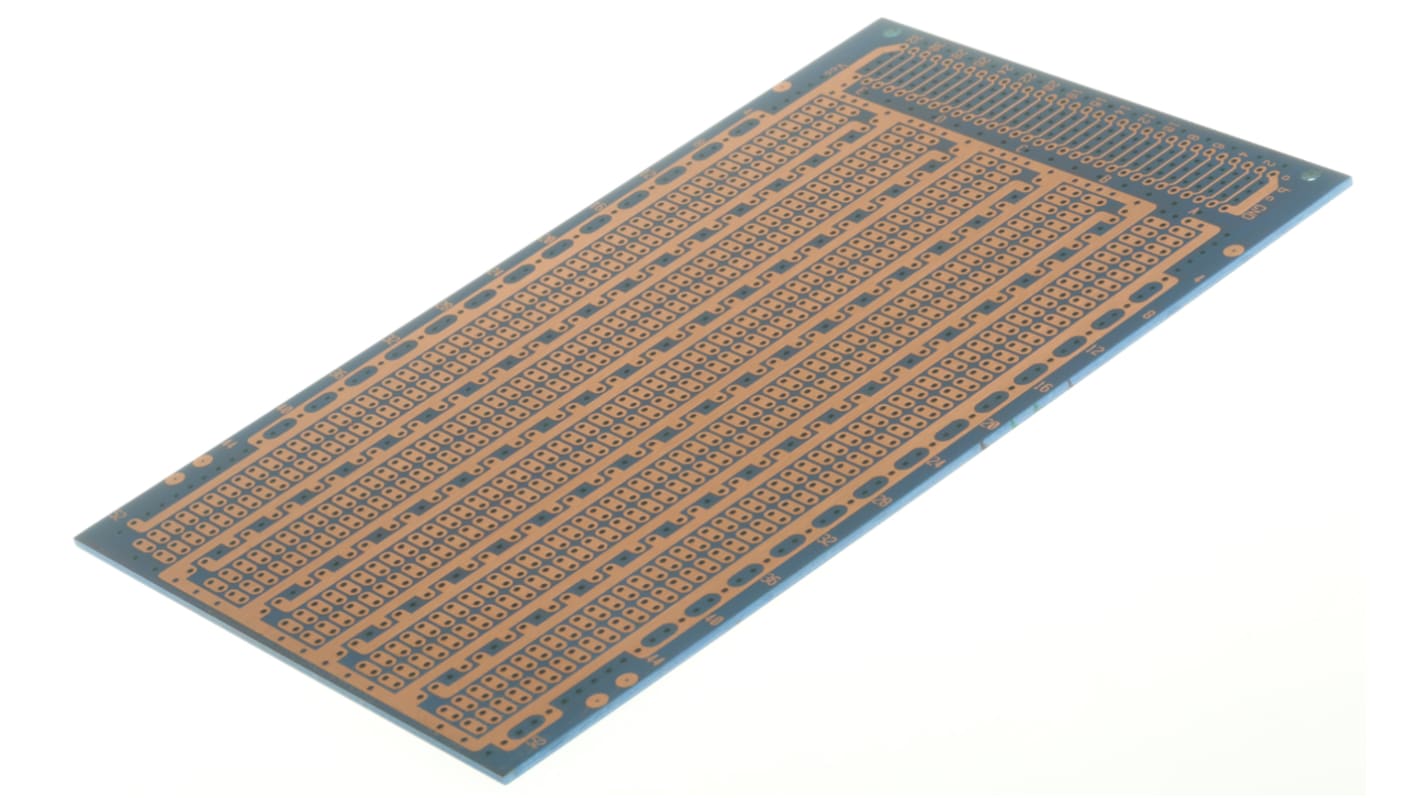

10-0581, Single Sided Eurocard FR2 With 53 x 5 1.02mm Holes, 100 x 160 x 1.6mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

High Density DIP board, Single Sided

Ideal for high density circuitry using wirewrapping, hardwiring or Verowire interconnection rechniques.

Prototyping DIP board, high density
3U Eurocard format PCB from copper clad SRBP material UL94 V0 rated
Two Vcc and one 0V power rail options
DIN 41494 cardframe compatible
DIN 41612 connector pattern, up to 64/96 ways
Microbus backplane compatible

DIN Type Stripboards

Suitable for use with the KM6-II eurocard sub-rack systems

The double-sided microboards are designed for microprocessor applications where compatibility, flexibility, high density and screening are of prime importance. VCC rails and a VCC bus are provided but not connected, so that individual rails may be committed as required. 64//96-way DIN 41612 indirect edge connectors may be fitted at either end.
The 3U (100x160) and 6U (233.4x160) boards are available with plated through holes (pth) as an alternative to the standard types. These boards have the added advantage of linking the top with the bottom pads directly via the holes, thereby dispensing with the need to fit linking pins, etc. Also the integrity of the joint is improved as the solder forms round the component lead on both surfaces, in addition to flowing through the hole. This helps to produce a solid and reliable connection, which is very important in applications where a high degree of vibration may be encountered.
Eurocards are manufactured from either epoxy glass material (blue) to BS4584 Part 3 or 16, or SRBP (synthetic resin bonded paper) material to BS4584 Part 5. Card thickness is 1.6mm. Copper 305g/m2 (1oz/ft2). Holes 1.0mm (0.040in.) dia. are pre-drilled on a 2.54mm matrix and all cards can be used with indirect edge connectors to DIN41612 (see Connectors/Terminals) except SRBP stripboard.

Note

Single-sided microboards have the same wiring pattern as the double-sided types, but omit the ground plane and 0 Volt rails on the component side of the card.

Specifications
Attribute Value
Base Material Synthetic Resin Bonded Paper
Number of Sides 1
Dimensions 100 x 160 x 1.6mm
Hole Diameter 1.02mm
Hole Layout 53 x 5
FR Material Grade FR2
Length 100mm
Width 160mm
Available to back order for despatch 29/11/2019
Price Each
£ 25.88
(exc. VAT)
£ 31.06
(inc. VAT)
Units
Per unit
1 - 4
£25.88
5 - 9
£24.58
10 - 39
£23.29
40 +
£22.00
