Startech 10/100/1000Mbit/s RJ45, SC Multi Mode Media Converter Full Duplex 550m

  • RS Stock No. 179-7999
  • Mfr. Part No. MCMGBSCMM055
  • Brand Startech
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

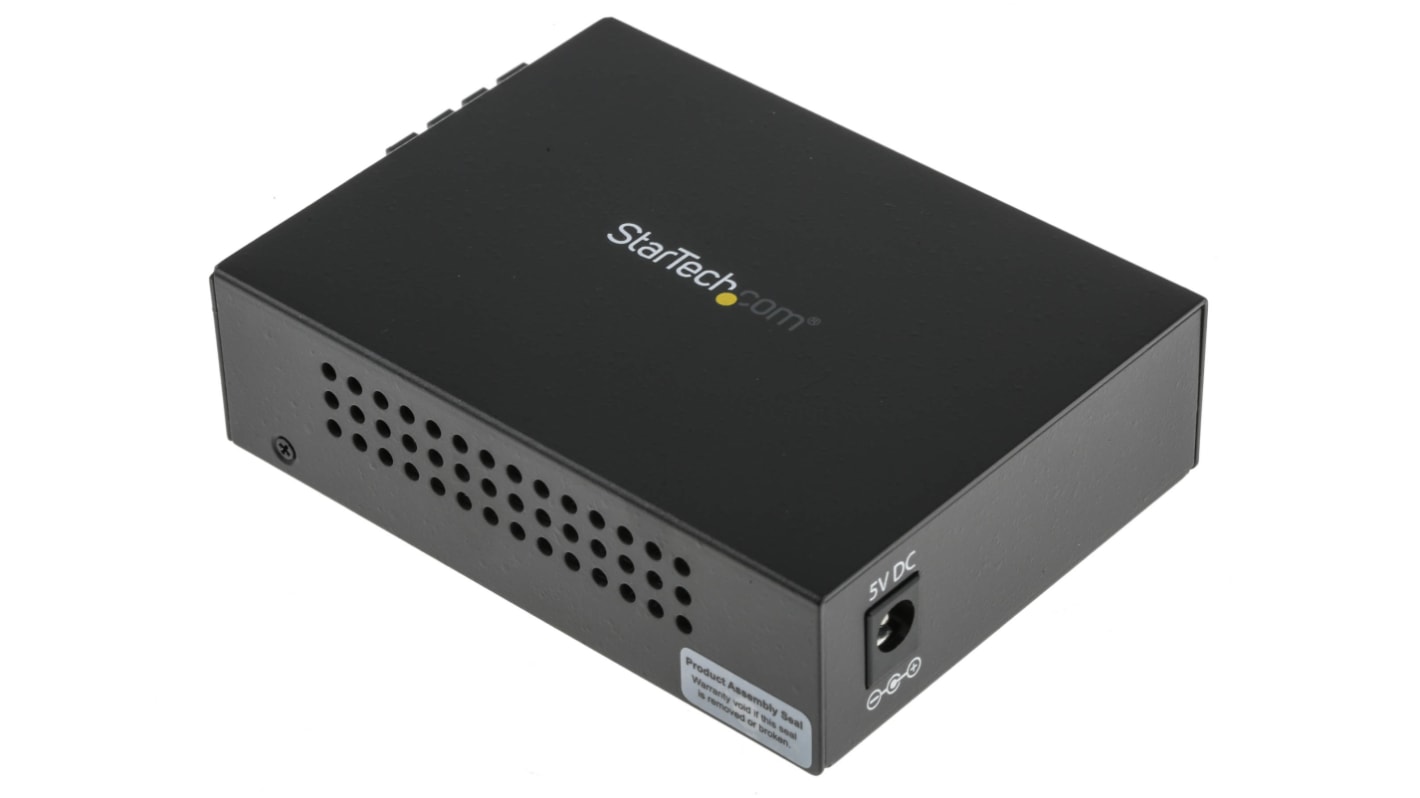

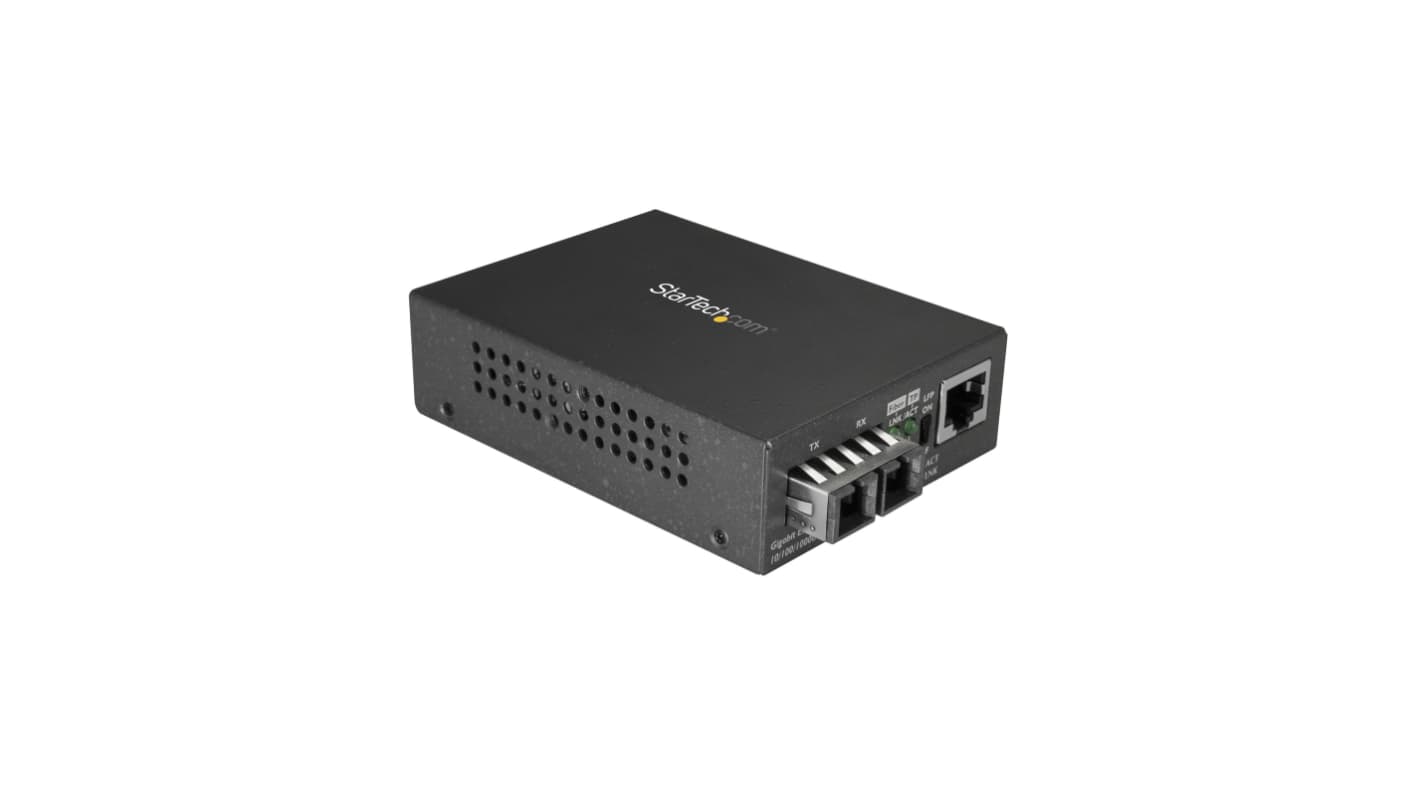

MCMGBSCMM055 Fibre Media Converter

This fibre media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fibre, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fibre media converter offers a cost-effective way to transparently convert copper to fibre, or fibre to copper, for connecting remote sub-networks to larger fibre-optic networks. Providing both SC fibre and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fibre-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fibre, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Features & Benefits

• Compact design and wall mountable
• Non-blocking full wire-speed forwarding rate
• Provides DIP switch supporting Link Fault Pass-through function
• LED Indicators for simple Ethernet/fibre network link monitoring
• 850 nm wavelength
• Supports IEEE 802.1q Tag VLAN pass-through
• Converts and extends a Gigabit Ethernet fibre (1000Mbps) network over multimode fibre on 1000BASE-SX networks
• Provides a cost-effective Ethernet to fibre/copper to fibre link
• Supports a maximum distance of 550 m over multimode fibre-optic cable (SC connection)

Applications

• Extend an Ethernet connection by up to 550 m (0.34 miles) over a fibre backbone
• Create an economical Ethernet-fibre/copper-fibre link for connecting remote sub-networks to larger fibre-optic networks/backbones
• Converts Ethernet to fibre, and fibre to copper to provide a cost-effective networking solution

What’s in the package?

• Media converter
• Universal power adapter (NA/JP, UK, EU, ANZ)
• Quick-start guide

Specifications
Attribute Value
Network Speed 10/100/1000Mbit/s
Fibre Operating Mode Full Duplex
Fibre Type Multi Mode
Maximum Transfer Distance 550m
Maximum Data Transfer Rate 1000Mbps
Connection Port RJ45, SC
22 In stock for FREE next working day delivery
Price Each
£ 105.91
(exc. VAT)
£ 127.09
(inc. VAT)
Units
Per unit
1 +
£105.91
