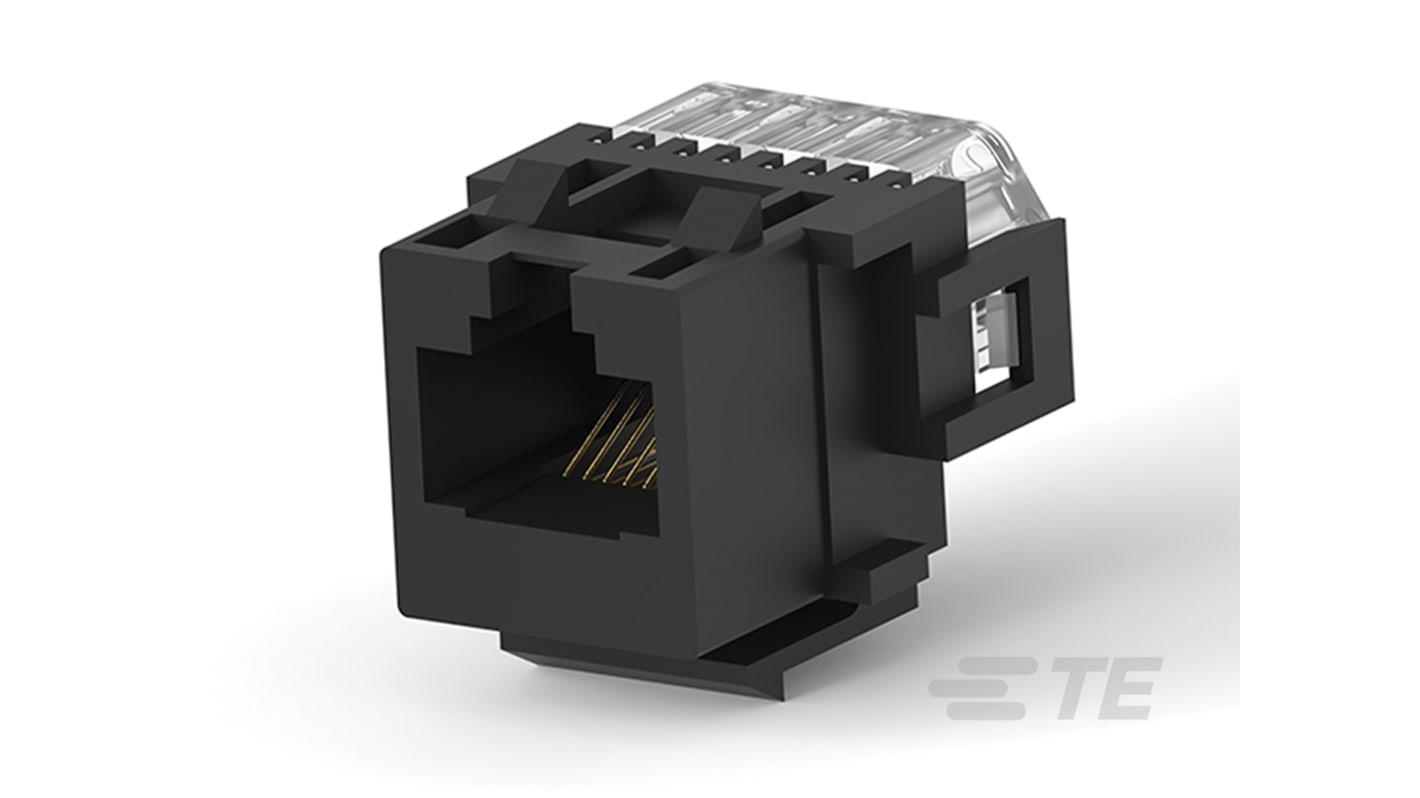

TE Connectivity, Female Cat3 RJ45 Connector

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

216005-4

Connector Product Type=Connector Assembly, Modular Jack & Plug Interface Type=RJ45, Modular Jacks & Plugs Products=RJ Type Jacks & Plugs, Modular Connector Style=Jack, Grounding Options=None, Keyed=No, Port Configuration=Single Port, Port Matrix Configuration=1 x 1, Connector Contact Density=Standard, Status Indicator=None, Modular Jack Latch Orientation=Standard - Latch Down, Connector Profile=Standard, Contact Current Rating (Max)=1.5 A, Contact Mating Area Plating Material=Gold over Nickel, Contact Base Material=Phosphor Bronze, Contact Mating Area Plating Material Thickness=1.25 μm, Termination Method to Wire & Cable=Insulation Displacement Crimp (IDC), Termination Method to Printed Circuit Board=Surface Mount, Connector Mounting Type=Panel, Mating Entry Location=Side, Centerline (Pitch)=1.02 mm, Housing Color=Black, Housing Material=PBT, PCB Tail Length=.3 mm, Connector Height=22 mm, Operating Temperature Range=-40 – 70 °C, Shielded=No, Circuit Application=Signal, UL Flammability Rating=UL 94V-HB, Performance Category=Cat 3, Packaging Quantity=500, Packaging Method=Box

Specifications
Attribute Value
Ethernet Connector Type RJ45 Connector
Gender Female
LAN Category Cat3
Number of Ports 1 x 1
Mounting Type Surface Mount
Number of Ways 8
Connector Type RJ45
Shield Type Unshielded
Orientation Right Angle
Length 22mm
Width 19.2mm
Depth 22mm
Series Number 216005
Contact Material Phosphor Bronze
Contact Plating Gold over Nickel
420 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 2.326
(exc. VAT)
£ 2.791
(inc. VAT)
Units
Per unit
Per Pack*
5 - 5
£2.326
£11.63
10 - 20
£2.23
£11.15
25 - 45
£2.158
£10.79
50 - 95
£2.114
£10.57
100 +
£2.072
£10.36
*price indicative
