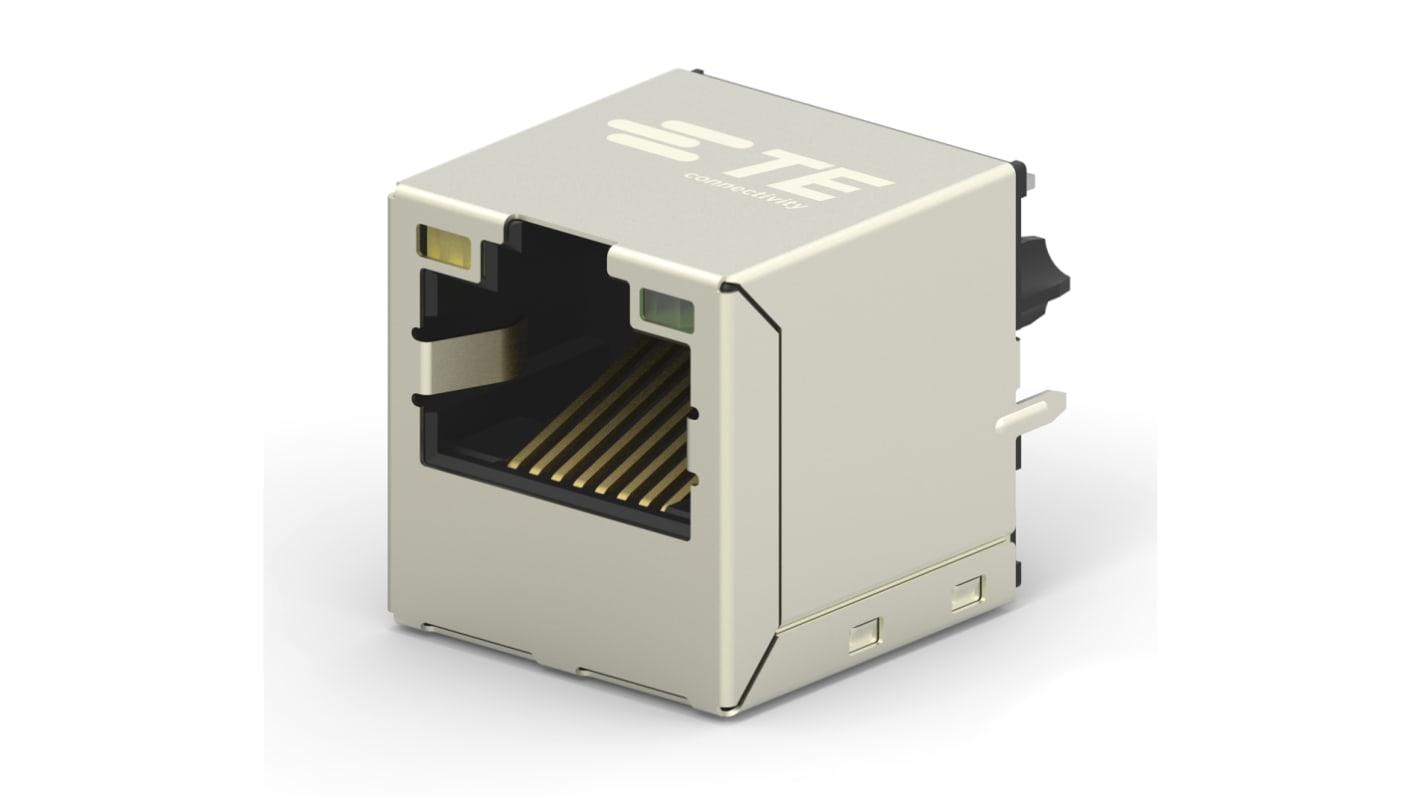

TE Connectivity, Female Cat6 RJ45 Socket

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity Cat6 RJ45 Vertical Jacks With Intergrated Magnitics

A range of industrial RJ45 jacks from TE Connectivity. The PCB mounting vertical jacks feature integrated magnetics providing enhanced EMI shielding against noise and interference supporting more reliable connections. With their extended temperature range improved corrosion resistance, these robust RJ45 jacks are ideal for applications in the harshest of environments. This series of Industrial modular jacks are available with data transmission rates of 10/100 Base –T or 1 GB and LED status indicator options. All models are highly reliable and excellent quality.

Features & Benefits

Thicker gold plating improving corrosion resistance Extended temperature range -40°C to +85°C
Enhanced EMI protection
Minimum product life requirement of 10 years
260°C reflow Pin in Paste soldering
Smaller PCB footprint, supporting greater capacity and performance

Applications

Routers Hubs
PLC’S
Switches
Wireless access points
All industrial applications with RJ45 connectivity
All industrial applications requiring Ethernet

Specifications
Attribute Value
Gender Female
LAN Category Cat6
Number of Ports 1 x 1
Mounting Type PCB Mount
Number of Ways 8
Connector Type RJ45 Modular Jack
Shield Type Nickel Plated Brass
Orientation Vertical
IP Rating IP20
Length 20.07mm
Width 16.7mm
Depth 16.9mm
Contact Material Copper Alloy
Series Number 2301995
Contact Plating Gold over Nickel
6 In stock - FREE next working day delivery available
Price Each
£ 8.43
(exc. VAT)
£ 10.12
(inc. VAT)
Units
Per unit
1 - 9
£8.43
10 - 24
£8.00
25 - 49
£7.42
50 +
£6.79
