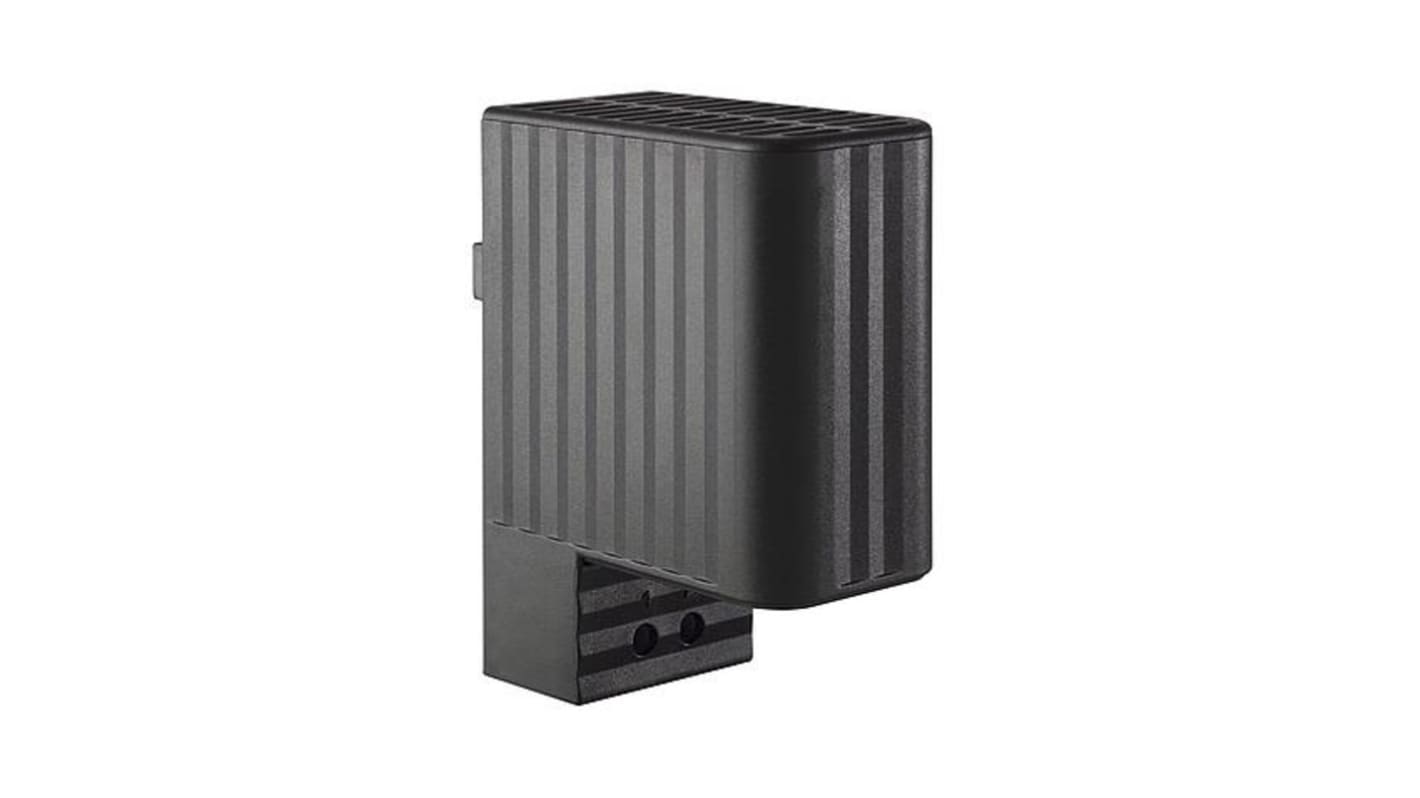

Enclosure Heater, 10W, 24 V ac/dc, , 98mm x 38mm x 75mm

  • RS Stock No. 182-9816
  • Mfr. Part No. 06040.1-00
  • Brand STEGO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

The CSK 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes natural convection which results in a circulating current of warm air. The surface temperatures on the accessible side surfaces of the housing are minimized as a result of the heater design.

Low surface temperature
Compact size
Wide voltage range
Double insulated protection
DIN rail mountable

Specifications
Attribute Value
Output Power 10W
Supply Voltage 24 V ac/dc
Surface Temperature <+85°C
Depth 75mm
Height 98mm
Width 38mm
Series CSK 060
5 In stock for FREE next working day delivery
Price Each
£ 28.20
(exc. VAT)
£ 33.84
(inc. VAT)
Units
Per unit
1 - 4
£28.20
5 +
£26.11
