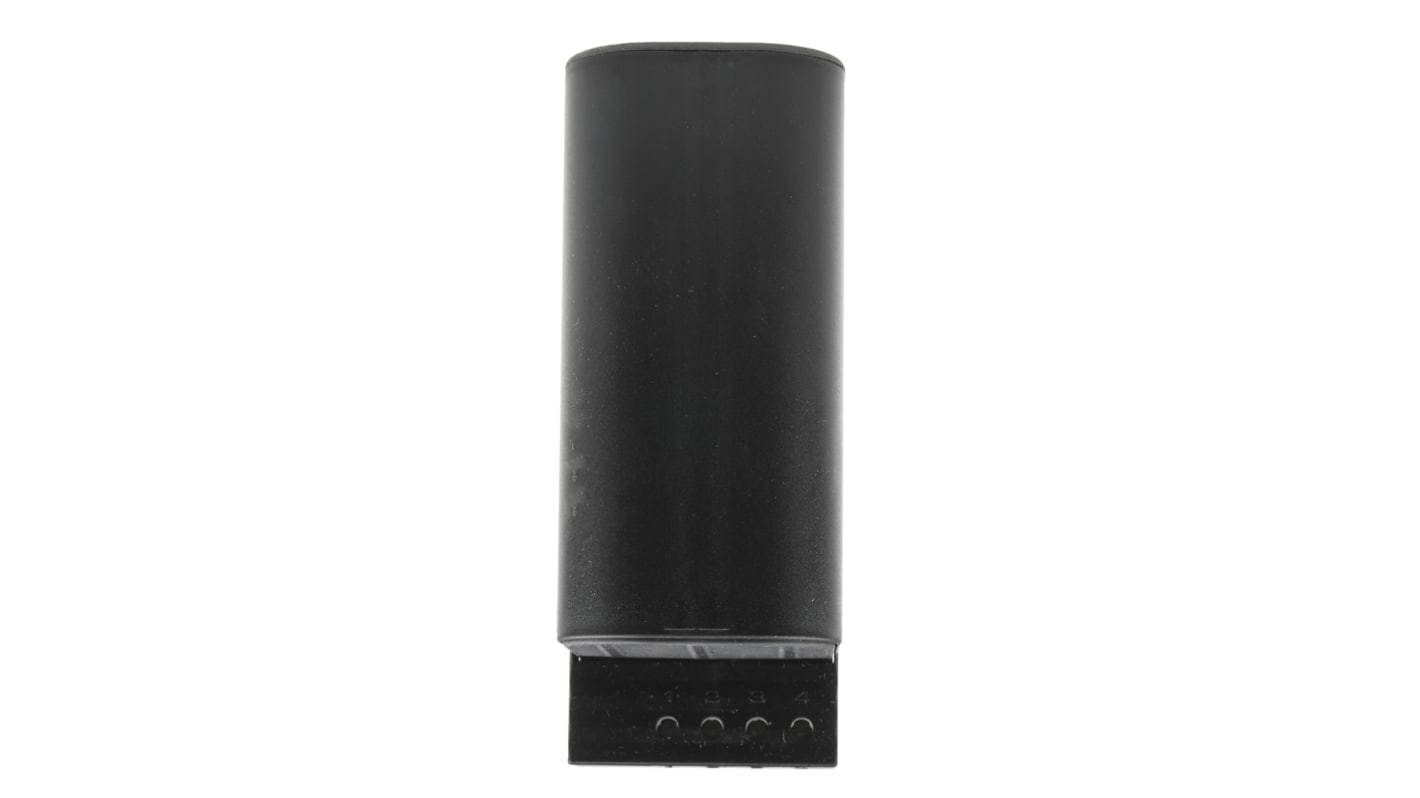

Enclosure Heater, 150W, 120 → 240 V ac/dc, , 150mm x 60mm x 90mm

  • RS Stock No. 489-260
  • Mfr. Part No. 06020.0-00
  • Brand STEGO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Touch-Safe Heater

Touch-Safe heaters are designed for use in every application and area where enclosures and cases that house electrical / electronic components must be heated to avoid condensation and low temperatures. The aluminium heater body is covered with a plastic housing. This plastic housing enables the surface temperature to be significantly decreased in comparison to conventional aluminium heaters. With ever-increasing packing densities within panels and enclosures, this allows the gap between the heater and panel components to decrease. Some Touch-Safe models have an integrated thermostat.

Operating voltage 120-240Vac/dc (Min 110v , Max 265v)
Small size
Double-insulated
Quick DIN rail mounting
Touch-safe screw terminals

Approvals

VDE; UL

DIN Rail Mount Enclosure Heaters

Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.

Specifications
Attribute Value
Output Power 150W
Input Power Rating 150W
Supply Voltage 120 → 240 V ac/dc
Surface Temperature 80°C
Depth 90mm
Height 150mm
Width 60mm
167 In stock for FREE next working day delivery
Price Each
£ 58.87
(exc. VAT)
£ 70.64
(inc. VAT)
Units
Per unit
1 - 9
£58.87
10 - 24
£56.87
25 - 49
£53.86
50 - 99
£49.86
100 +
£44.85
