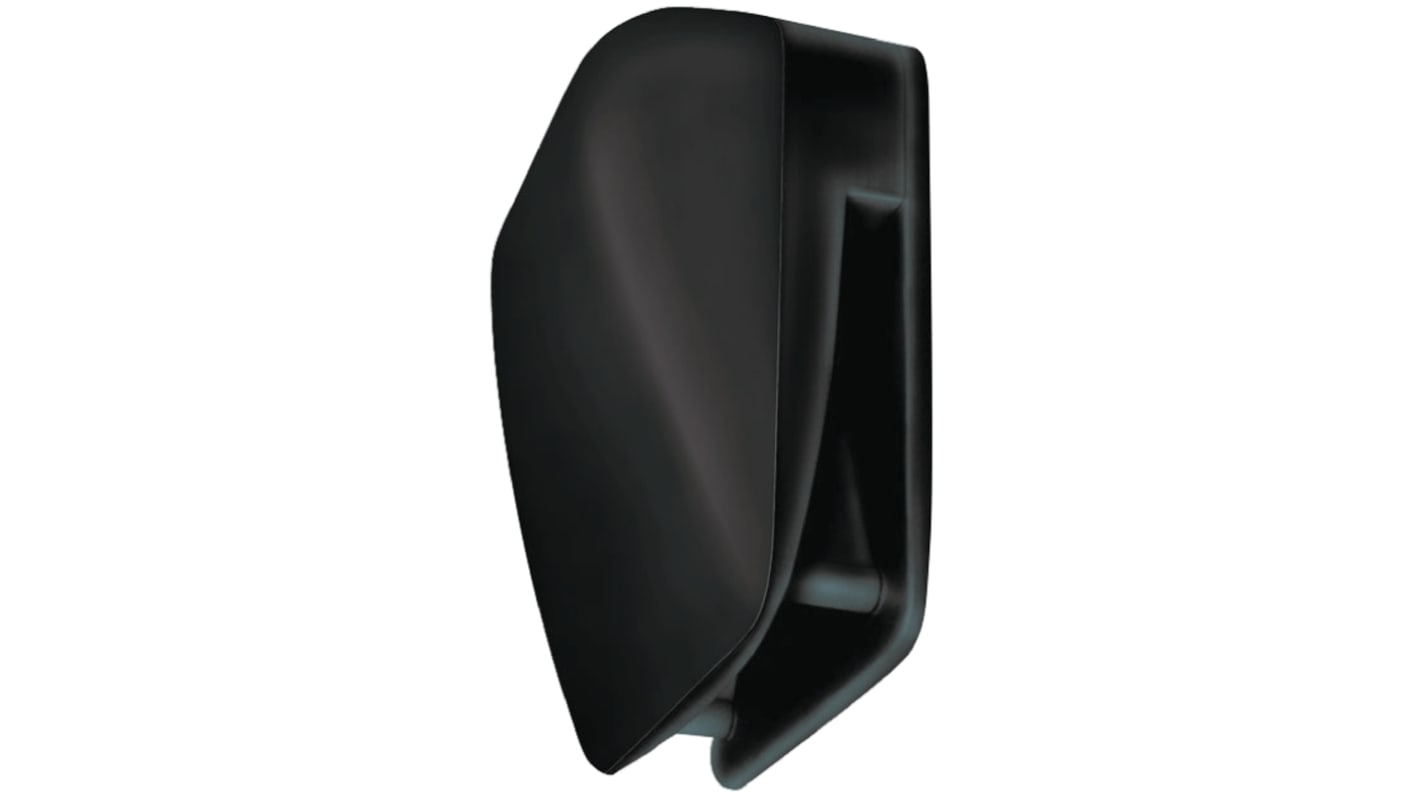

Werma 761 Series Base Mount, Wall Mount Electronic Sounder, 230 V ac, 105dB at 1 m, IP65, AC, Single-Tone
- RS Stock No.:
- 655-8296
- Mfr. Part No.:
- 761.000.68
- Brand:
- Werma
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 655-8296
- Mfr. Part No.:
- 761.000.68
- Brand:
- Werma
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
EX Signal Horn 761
Suitable for use in areas liable to explosion caused by both gas or dust
Approved for zone 1 and 2 (Gas) as well as zone 20 and 21 (Dust)
Loud horn with continuous tone
Operating temperature range: -40 to +50°C
M16 conduit entry
Approved for zone 1 and 2 (Gas) as well as zone 20 and 21 (Dust)
Loud horn with continuous tone
Operating temperature range: -40 to +50°C
M16 conduit entry
Group and Category
II 2G EEx me II T5 (zone 1 & 2)
II 2D IP65 70° (zone 20 & 21)
II 2D IP65 70° (zone 20 & 21)
Certificate No.
BVS 03 ATEX E 118X
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 230 V ac |
| IP Rating | IP65 |
| Decibels at 1 Metre | 105dB |
| Current Type | AC |
| Number Of Tones | 1 |
| Housing Colour | Black |
| Mounting Style | Base Mount, Wall Mount |
| Application Type | Sounder |
| Maximum Decibel | 105dB |
| Series | 761 |
| Base Length | 178mm |
| Hazardous Area Certification | ATEX |
| Maximum Temperature | +50°C |
| Minimum Temperature | -40°C |
| Base Width | 207mm |
| Housing Material | PC |
