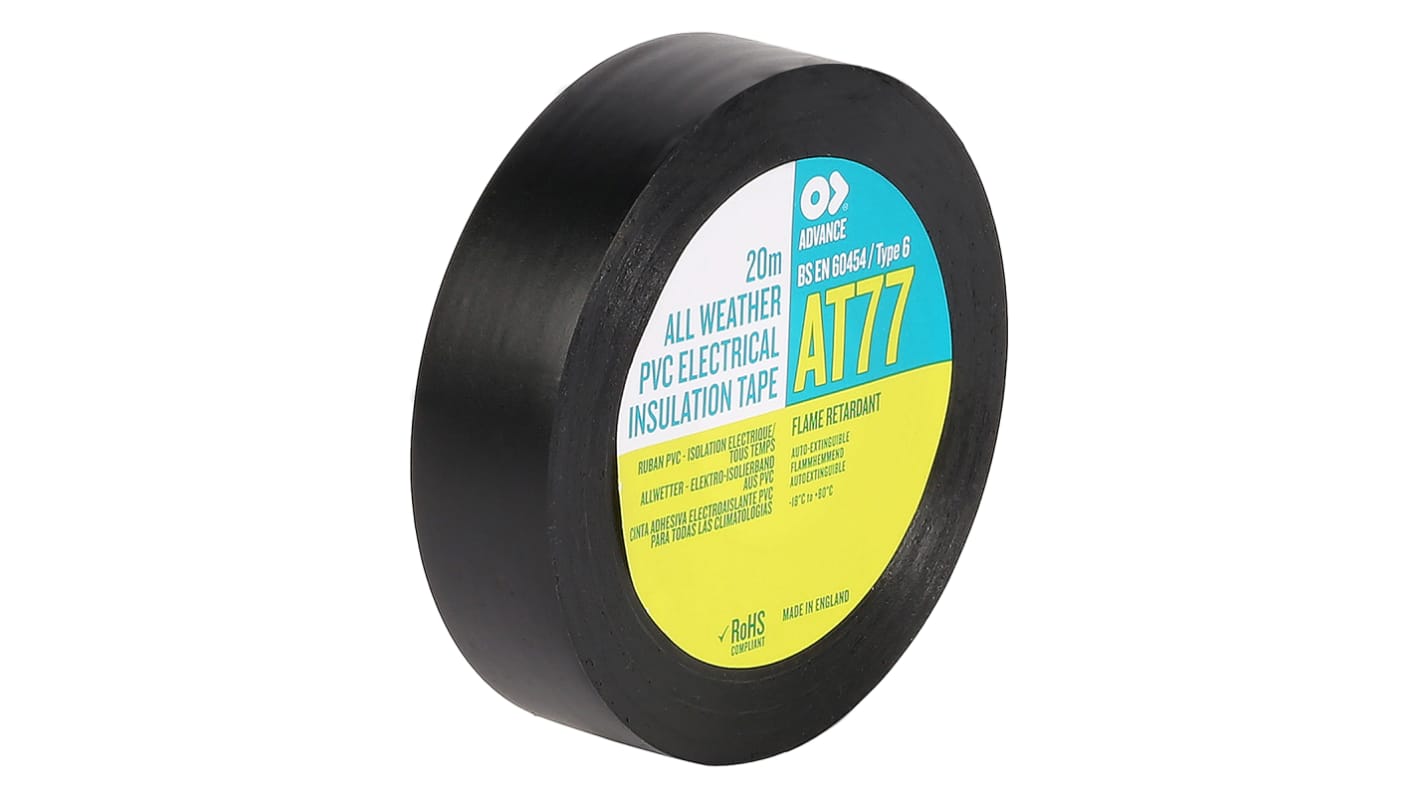

Advance Tapes AT77 Black Electrical Tape, 19mm x 20m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

AT77 PVC tape

Flame-retardant, PVC electrical insulation tape
High elongation and adhesive power

Standards

EN 69454 / type 6.

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour Black
Backing Material PVC
Width 19mm
Length 20m
Thickness 0.19mm
Minimum Operating Temperature -18°C
Maximum Operating Temperature +80°C
Adhesive Material Rubber Resin
Trade Name AT77
Adhesion Strength 2.6 N/cm
Complies with EN Legislation BS EN 60454-3-1/Type 6
Elongation at Break 250%
Tensile Strength 30N/cm
Breakdown Voltage 10000V
Model Number AT77
164 In stock for FREE next working day delivery
Price Each
£ 2.05
(exc. VAT)
£ 2.46
(inc. VAT)
Units
Per unit
1 - 5
£2.05
6 - 14
£1.97
15 +
£1.93
