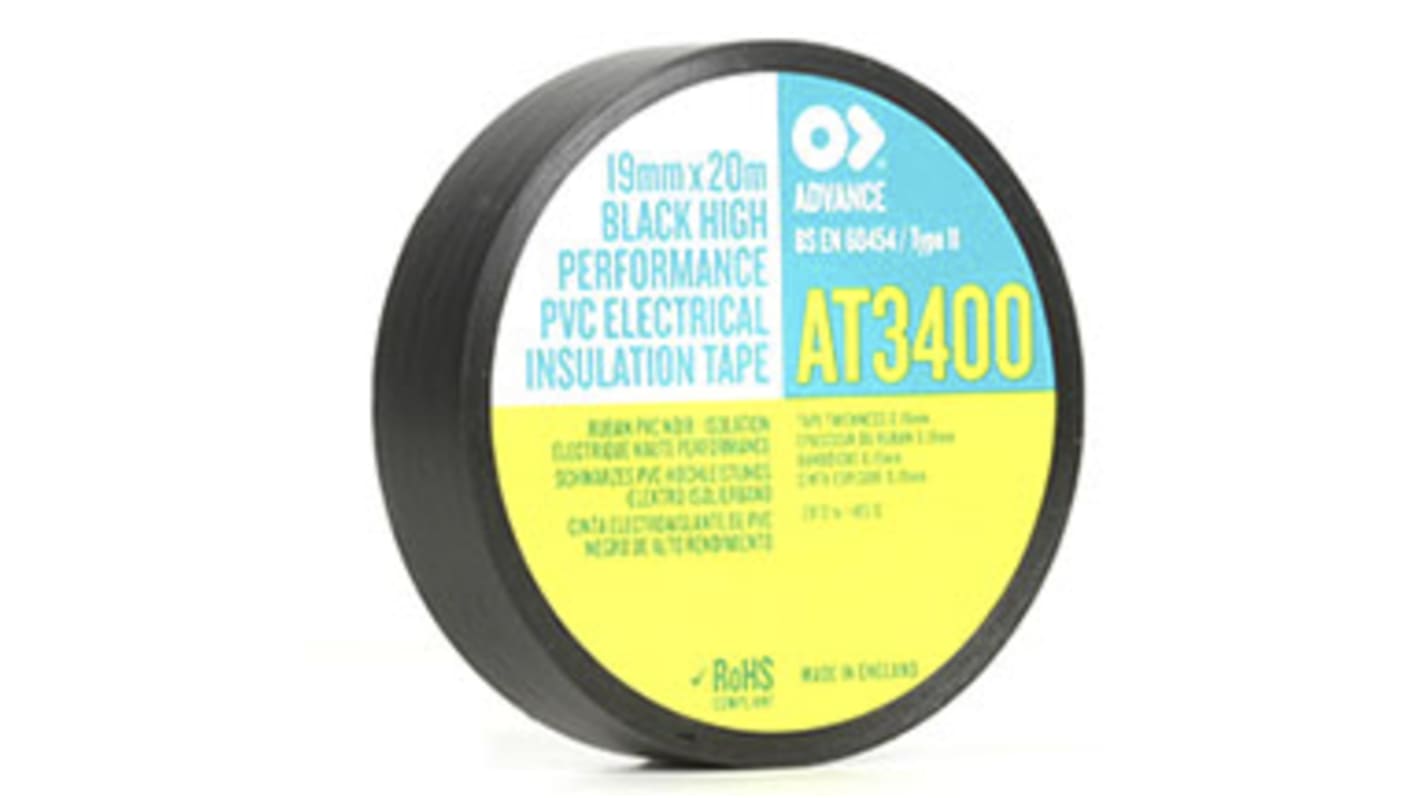

Advance Tapes AT34 Black Electrical Tape, 19mm x 20m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

High Performance Electrical Insulation Tape

A black PVC tape, with excellent comfortability and high elongation at break. Good ageing characteristics and can be applied over a wide temperature range.For use inside and outside where extremes of temperature are involved.Resists weather, UV, abrasion, corrosion, alkalis and acids.

Service temperature -20°C to +105°C
Application temperature -10°C to +40°C
Wide core for ease of handling
Easy to unwind
Flame retardant and self extinguishing
Water and UV resistant

Standards

BS EN 60454 Type 11

Advance Tapes PVC Electrical Insulating Tape

The Advance Tapes AT34 black PVC film electrical insulating tape with an aggressive, cross-linked solvent-based rubber-resin adhesive that can be applied over a wide range of temperature. This is 0.19mm thick, 19mm wide and 20m long. This tape is used indoors, as well as, outdoors that involve extreme temperatures.

Features and Benefits

Flame retardant Self-extinguishing Excellent low and high-temperature performance Resistant to rapid temperature change Easy unwind Flexible Conformable to awkward shapes Water resistant Good abrasion resistance UV resistant Non-corrosive adhesive Breaking load 30N/cm Elongation 200%

Applications

For electrical installation and repair work Soldered joints and seams Insulation of soldered joints, terminals, cable socket and conduction rails

Certifications

BS EN 60454-3-1/Type 11

PVC Tapes

All the tapes in this section use pressure sensitive rubber adhesive.

Specifications
Attribute Value
Colour Black
Width 19mm
Length 20m
Backing Material PVC
Thickness 0.19mm
Maximum Operating Temperature +105°C
Trade Name AT34
396 In stock for FREE next working day delivery
Price Each
£ 4.94
(exc. VAT)
£ 5.93
(inc. VAT)
Units
Per unit
1 - 5
£4.94
6 - 14
£4.74
15 +
£4.64
