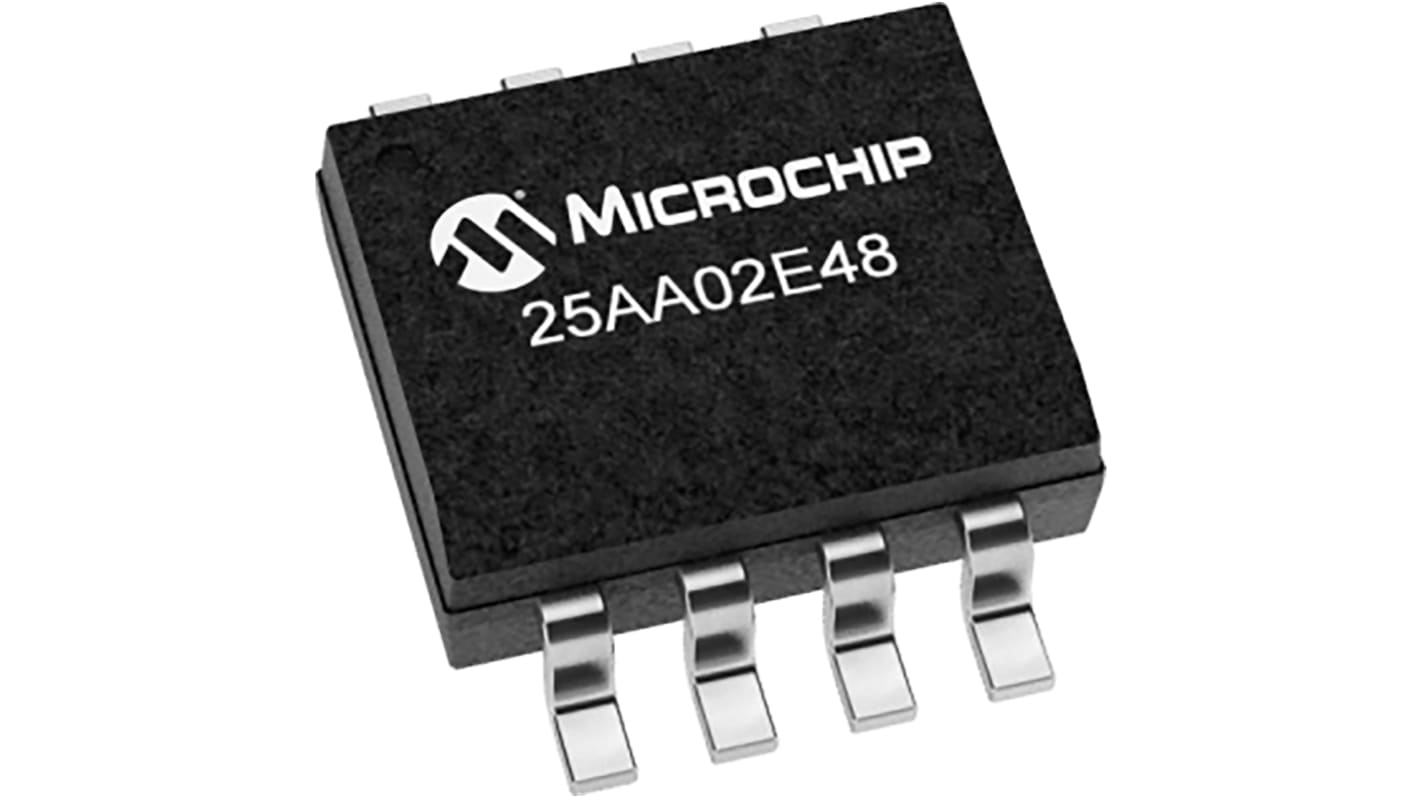

Microchip 25AA02E48T-I/SN, 2kbit Serial EEPROM Memory 8-Pin SOIC SPI

  • RS Stock No. 177-2757
  • Mfr. Part No. 25AA02E48T-I/SN
  • Brand Microchip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Microchip Technology Inc. 25AA02E48 is a 2 Kbit Serial Electrically Erasable Programmable Read-Only Memory (EEPROM).

Additional Features:
Pre-programmed Globally Unique, 48-bit NodeAddress
Compatible with EUI-48™ and EUI-64™
10 MHz max. Clock Frequency
Low-Power CMOS Technology:- Max. Write Current: 5 mA at 5.5V- Read Current: 5 mA at 5.5V, 10 MHz- Standby Current: 1 μA at 2.5V
256 x 8-bit Organization
Write Page mode (up to 16 bytes)
Sequential Read:
Self-Timed Erase and Write Cycles (5 ms max.)
Block Write Protection:- Protect none, 1/4, 1/2 or all of array
Built-in Write Protection:- Power-on/off data protection circuitry- Write enable latch- Write-protect pin
High Reliability:- Endurance: 1,000,000 Erase/Write cycles- Data retention: >200 years- ESD protection:>4000V
Temperature Ranges Supported:- Industrial(I): -40C to +85C

Specifications
Attribute Value
Memory Size 2kbit
Interface Type SPI
Package Type SOIC
Mounting Type Surface Mount
Pin Count 8
Organisation 256K x 8 bit
Minimum Operating Supply Voltage 1.8 V
Maximum Operating Supply Voltage 5.5 V
Number of Bits per Word 8bit
Length 4.9mm
Width 3.9mm
Height 1.5mm
Dimensions 4.9 x 3.9 x 1.5mm
Maximum Operating Temperature +85 °C
Number of Words 256K
Data Retention 200yr
Minimum Operating Temperature -40 °C
Available to back order for despatch when stock is available
Price Each (On a Reel of 3300)
£ 0.29
(exc. VAT)
£ 0.35
(inc. VAT)
Units
Per unit
Per Reel*
3300 +
£0.29
£957.00
*price indicative
