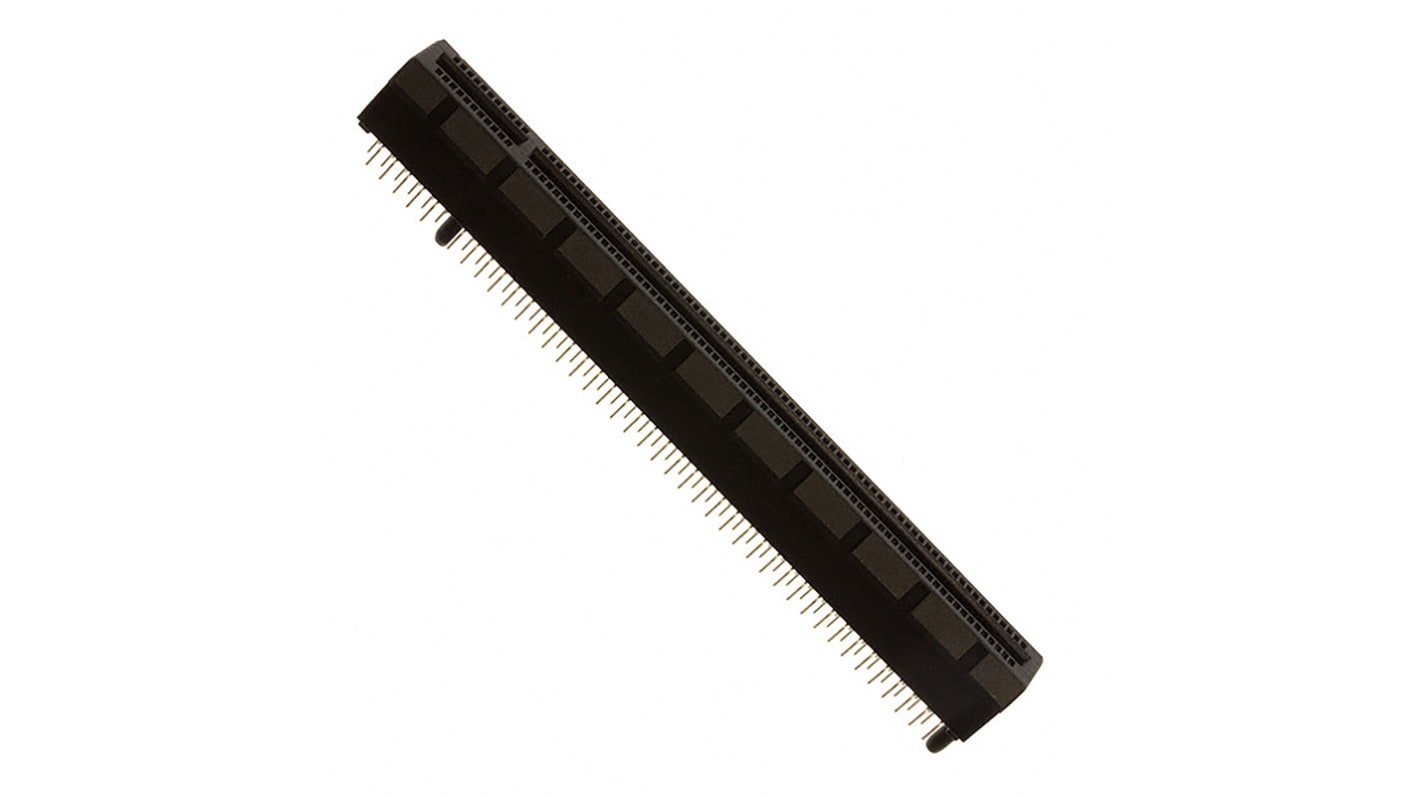

Amphenol FCI Female Edge Connector, 164-Contacts, 1mm Pitch, 16-Row, Solder Termination
- RS Stock No.:
- 863-3184
- Mfr. Part No.:
- 10018783-10203TLF
- Brand:
- Amphenol FCI
Discontinued product
- RS Stock No.:
- 863-3184
- Mfr. Part No.:
- 10018783-10203TLF
- Brand:
- Amphenol FCI
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Edge Connectors
Professional range of FCI edge connectors.
Body Orientation - Straight
Contact Material - Copper Alloy or Phosphor Bronze
Through Hole
Termination Method - Solder
Straddle Mount option available
Contact Material - Copper Alloy or Phosphor Bronze
Through Hole
Termination Method - Solder
Straddle Mount option available
Edgeboard Connectors
Specifications
Attribute | Value |
|---|---|
| Body Orientation | Straight |
| Gender | Female |
| Number of Contacts | 164 |
| Number of Rows | 16 |
| Pitch | 1mm |
| Termination Method | Solder |
| Contact Plating | Gold over Nickel |
| Contact Material | Copper Alloy |
| Current Rating | 1.1A |
| Voltage Rating | 300 V ac |
| Housing Material | Glass Filled Nylon |
| Depth | 11.25mm |
| Length | 71.65mm |
| Series Number | 10018783 |
| Width | 8.80mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +85°C |
