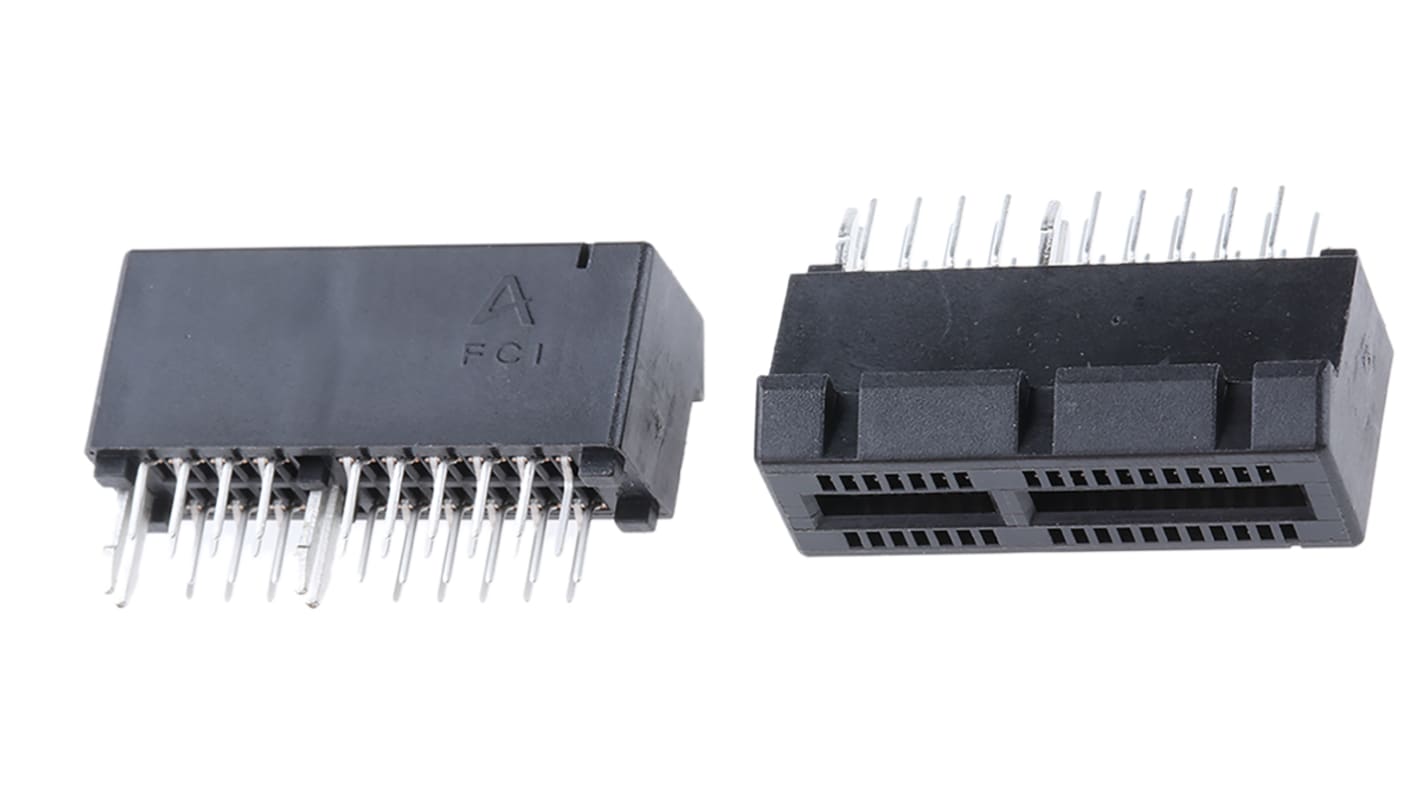

Amphenol FCI Female PCBEdge Connector, Through Hole Mount, 36 Way, 2 Row, 2mm Pitch

  • RS Stock No. 615-9518
  • Mfr. Part No. 10018783-11110TLF
  • Brand Amphenol FCI
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

PCI Express Edge Connectors

Vertical Card Edge connectors for PCI Express technology on a 1.00mm pitch.

Offer 1,4,8 or 16 serial PCI Express links to scale different bandwith requirements
Each serial link supports 2.5Gbps (per direction)
Retention locks available (see 615-9546)

Approvals

UL94V-0

Approvals

UL94V-0

Edge Connectors - FCI Connectors

Specifications
Attribute Value
Body Orientation Straight
Gender Female
Number of Contacts 36
Number of Rows 2
Pitch 2mm
Mounting Type Through Hole
Termination Method Solder
Contact Plating Gold over Nickel
Contact Material Copper Alloy
Housing Material Nylon
Width 11.25mm
Depth 8.8mm
Card Type PCI, PCIe
Maximum Operating Temperature +85°C
Minimum Operating Temperature -55°C
Length 25mm
Available to back order for despatch when stock is available
Price Each (In a Pack of 5)
£ 0.568
(exc. VAT)
£ 0.682
(inc. VAT)
Units
Per unit
Per Pack*
5 - 95
£0.568
£2.84
100 - 370
£0.412
£2.06
375 +
£0.372
£1.86
*price indicative
