- RS Stock No.:
- 197-6753
- Mfr. Part No.:
- HSEC8-140-01-S-D-EM2
- Brand:
- Samtec
- RS Stock No.:
- 197-6753
- Mfr. Part No.:
- HSEC8-140-01-S-D-EM2
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
Product Details

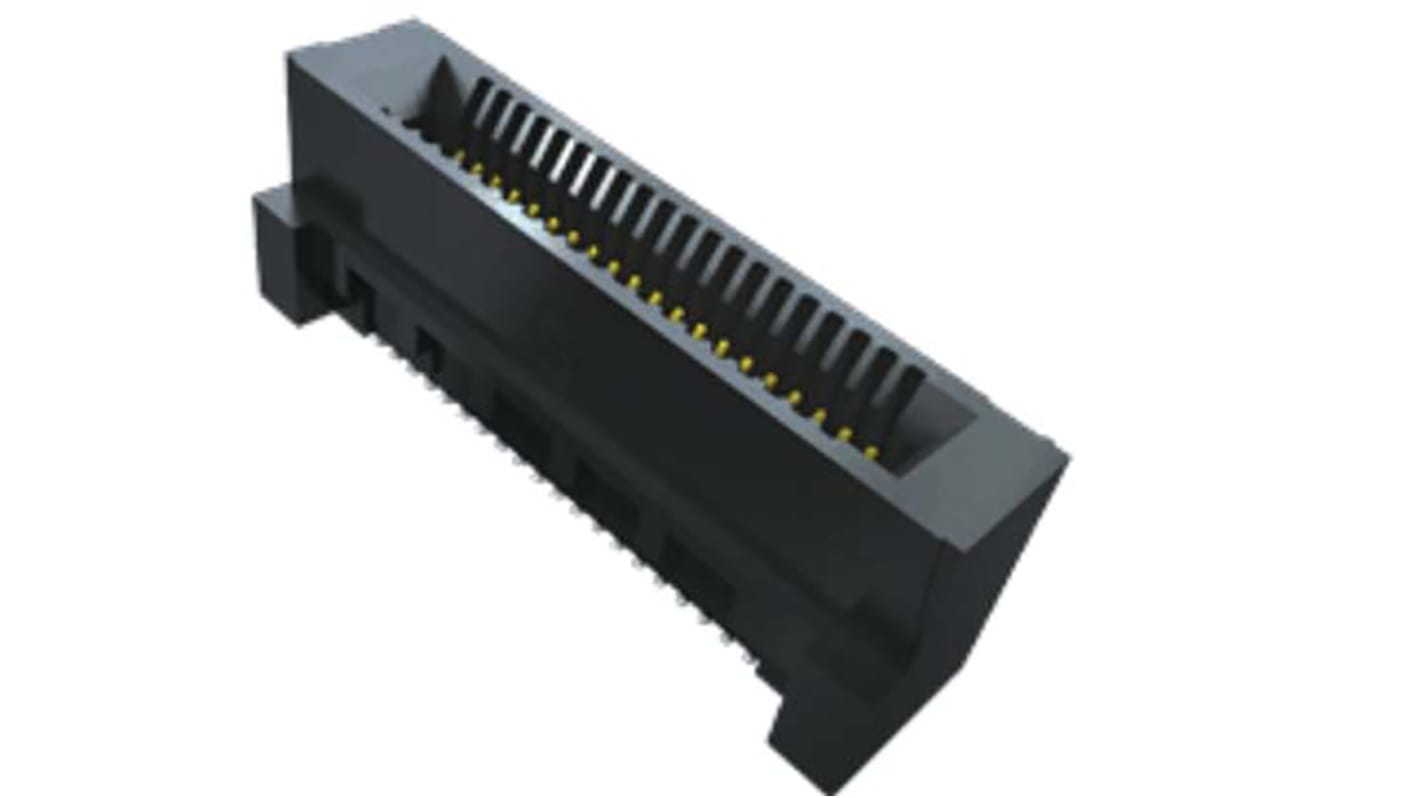

The Samtec HSEC8 series edge rate high speed edge card connector .It has BeCu as contact material and black liquid crystal polymer as insulator material.
Single-ended and differential pairs
Current rating 2.6A per pin
Operating Temperature Range -55°C to +125°C
RoHS compliant
Lead free solderable
Current rating 2.6A per pin
Operating Temperature Range -55°C to +125°C
RoHS compliant
Lead free solderable
Specifications
Attribute | Value |
---|---|
Body Orientation | Vertical |
Gender | Female |
Number of Contacts | 10 |
Number of Rows | 1 |
Pitch | 0.8mm |
Mounting Type | Surface Mount |
Current Rating | 2.8A |
Series | HSEC8 |
