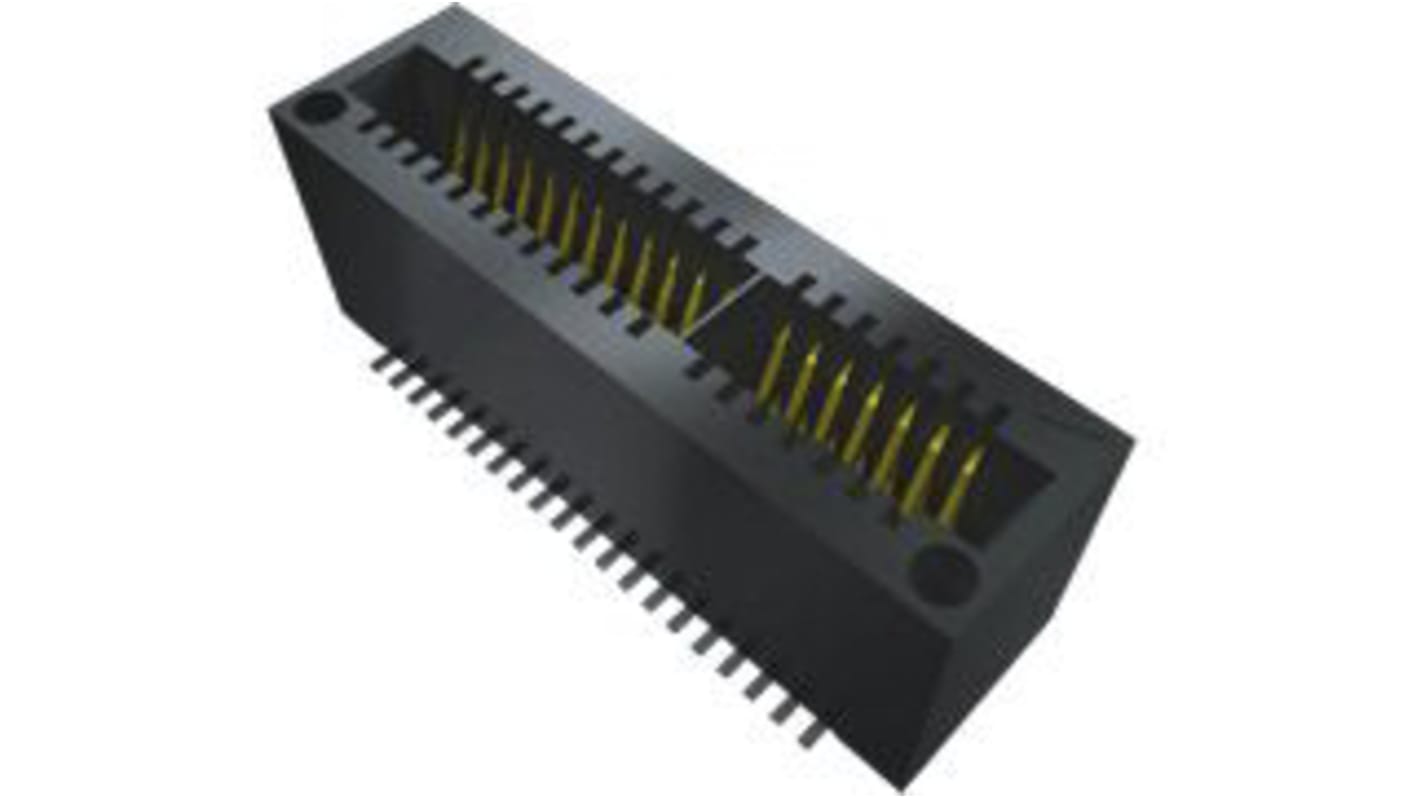

Samtec MEC1 Series Vertical Female Edge Connector, Surface Mount, 40-Contacts, 1mm Pitch, 2-Row, Solder Termination
- RS Stock No.:
- 180-1437
- Mfr. Part No.:
- MEC1-120-02-F-D-A
- Brand:
- Samtec
Available to back order for despatch 15/05/2024
Added
Price Each (In a Tube of 23)
£4.43
(exc. VAT)
£5.32
(inc. VAT)
| Units | Per unit | Per Tube* |
| 23 + | £4.43 | £101.89 |
| *price indicative | ||
- RS Stock No.:
- 180-1437
- Mfr. Part No.:
- MEC1-120-02-F-D-A
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
1.00 mm (.0394") pitch
Accepts .062" (1.60 mm) thick cards
Double row design up to 140 pins polarized
Optional alignment pin
Accepts .062" (1.60 mm) thick cards
Double row design up to 140 pins polarized
Optional alignment pin
Specifications
Attribute | Value |
|---|---|
| Body Orientation | Vertical |
| Gender | Female |
| Number of Contacts | 40 |
| Number of Rows | 2 |
| Pitch | 1mm |
| Mounting Type | Surface Mount |
| Termination Method | Solder |
| Contact Plating | Gold |
| Contact Material | Beryllium Copper |
| Current Rating | 2.2A |
| Voltage Rating | 300 V ac |
| Housing Material | Liquid Crystal Polymer |
| Series | MEC1 |
| Width | 6.99mm |
| Depth | 9.04mm |
| Length | 24.54mm |
| Maximum Operating Temperature | +125°C |
| Card Type | Card Edge |
| Minimum Operating Temperature | -55°C |
