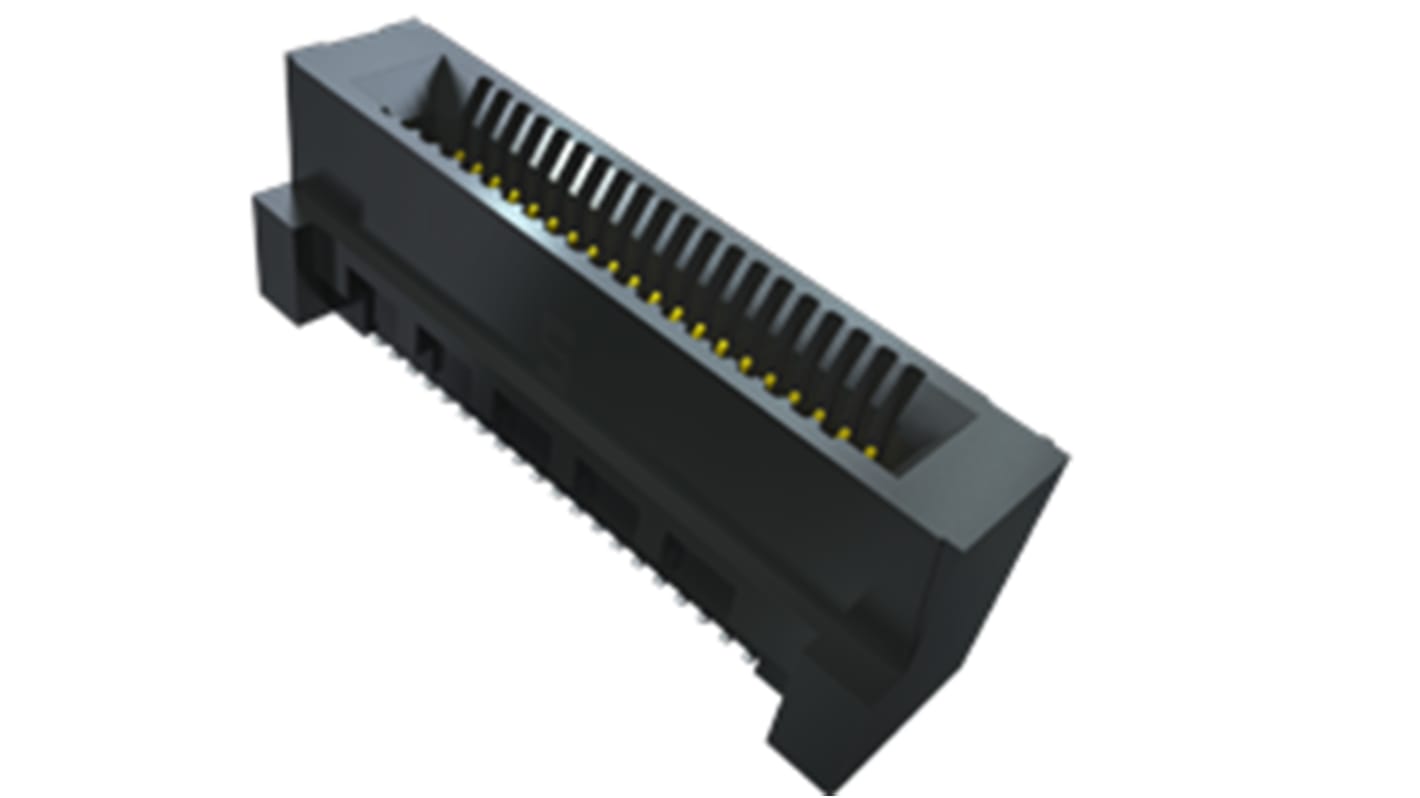

Samtec HSEC8-DV Series Vertical Female Edge Connector, Surface Mount, 40-Contacts, 0.8mm Pitch, 2-Row, Solder
- RS Stock No.:
- 179-8808
- Mfr. Part No.:
- HSEC8-120-01-SM-DV-A
- Brand:
- Samtec
Available to back order for despatch 20/05/2024
Added
Price Each (In a Tray of 84)
£3.489
(exc. VAT)
£4.187
(inc. VAT)
Units | Per unit | Per Tray* |
84 + | £3.489 | £293.076 |
*price indicative |
- RS Stock No.:
- 179-8808
- Mfr. Part No.:
- HSEC8-120-01-SM-DV-A
- Brand:
- Samtec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CR
Product Details
The Samtec, HSEC8-DV series, 0. 80mm pitch, two row, 20 positions, 2. 8A, female vertical high speed edge card socket connector has 1. 60mm card thickness, 240AC voltage rating and gold contact plating.
56 Gbps PAM4 performance
PCI Express® 3.0, 4.0 and 5.0
Edge Rate® contacts optimized for signal integrity performance and cycle life
Up to 200 positions available
Power/signal combo, press-fit tails, rugged weld tabs, locks and latches
Mating cable assemblies available
Beryllium copper contact material
Liquid crystal polymer housing material
Operating temperature ranges between -55°C to +125°C
12.6mm length
PCI Express® 3.0, 4.0 and 5.0
Edge Rate® contacts optimized for signal integrity performance and cycle life
Up to 200 positions available
Power/signal combo, press-fit tails, rugged weld tabs, locks and latches
Mating cable assemblies available
Beryllium copper contact material
Liquid crystal polymer housing material
Operating temperature ranges between -55°C to +125°C
12.6mm length
Specifications
Attribute | Value |
---|---|
Body Orientation | Vertical |
Gender | Female |
Number of Contacts | 40 |
Number of Rows | 2 |
Pitch | 0.8mm |
Mounting Type | Surface Mount |
Termination Method | Solder |
Contact Plating | Gold |
Contact Material | Beryllium Copper |
Current Rating | 2.8A |
Housing Material | Liquid Crystal Polymer |
Series | HSEC8-DV |
Length | 20.6mm |
Maximum Operating Temperature | +125°C |
Width | 7mm |
Minimum Operating Temperature | -55°C |
Depth | 7.8mm |
Card Type | Card Edge |
