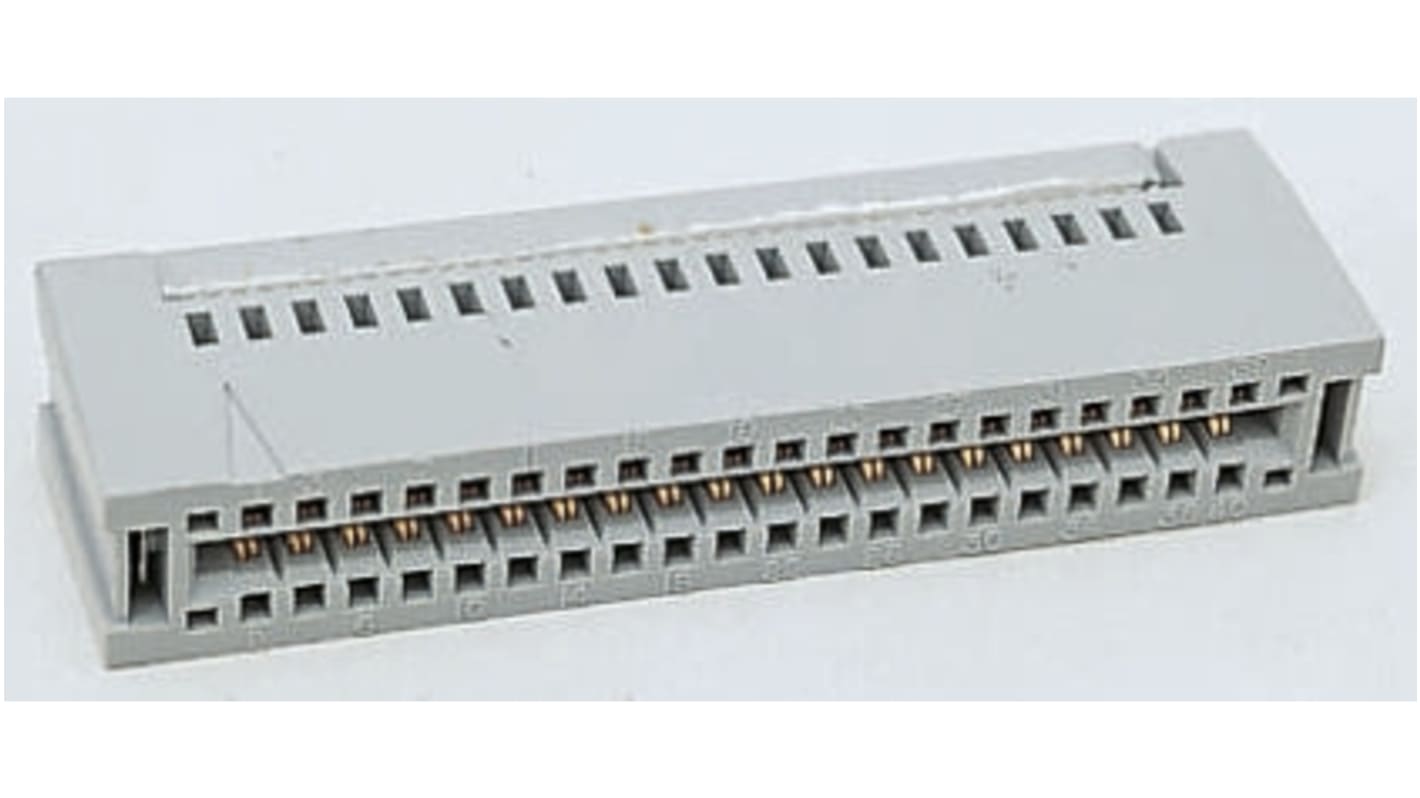

3M, 3000 Right Angle FemalePCBEdge Connector, Panel Mount Mount, 50 Way, 2 Row, 2.54mm Pitch, 1A

  • RS Stock No. 121-0006
  • Mfr. Part No. 3415-0001
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

3M 3000 Series 2.54mm Card-Edge IDC Ribbon Cable Connectors

3000 Series 2.54mm card-edge IDC ribbon cable transition connectors that allow the direct mounting of ribbon cable to the PCB without the use of a PCB receptacle connector. These card edge IDC ribbon cable connectors have a reinforced design that prevents mouth bowing and enables consistent contact performance and feature metal cover clips for secure cover retention and bifurcated contacts. Part numbers XXXX-0000 have drilled mounting flanges with 3.18mm diameter holes for panel mounting purposes.
Strain reliefs are available for card edge connectors without a mounting flange (part numbers XXXX-0001)
A keying plug is available for both versions see stock number 121-2800.

Specifications
Attribute Value
Body Orientation Right Angle
Gender Female
Number of Contacts 50
Number of Rows 2
Pitch 2.54mm
Mounting Type Panel Mount
Termination Method IDT
Contact Plating Gold over Nickel
Contact Material Copper Alloy
Current Rating 1A
Housing Material PBT
Series 3000
Minimum Operating Temperature -55°C
Depth 11.2mm
Maximum Operating Temperature +105°C
Length 75.4mm
Width 24.4mm
Available to back order for despatch when stock is available
Price Each
£ 9.68
(exc. VAT)
£ 11.62
(inc. VAT)
Units
Per unit
1 - 9
£9.68
10 - 24
£8.71
25 - 49
£7.94
50 - 99
£7.45
100 +
£6.87
