Weidmuller ATEX 2 Way Screw Down EK 2.5, 36.5mm Length 26 → 12 AWG

  • RS Stock No. 193-118
  • Mfr. Part No. EK 2.5N -474360000
  • Brand Weidmuller
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): RO
Product Details

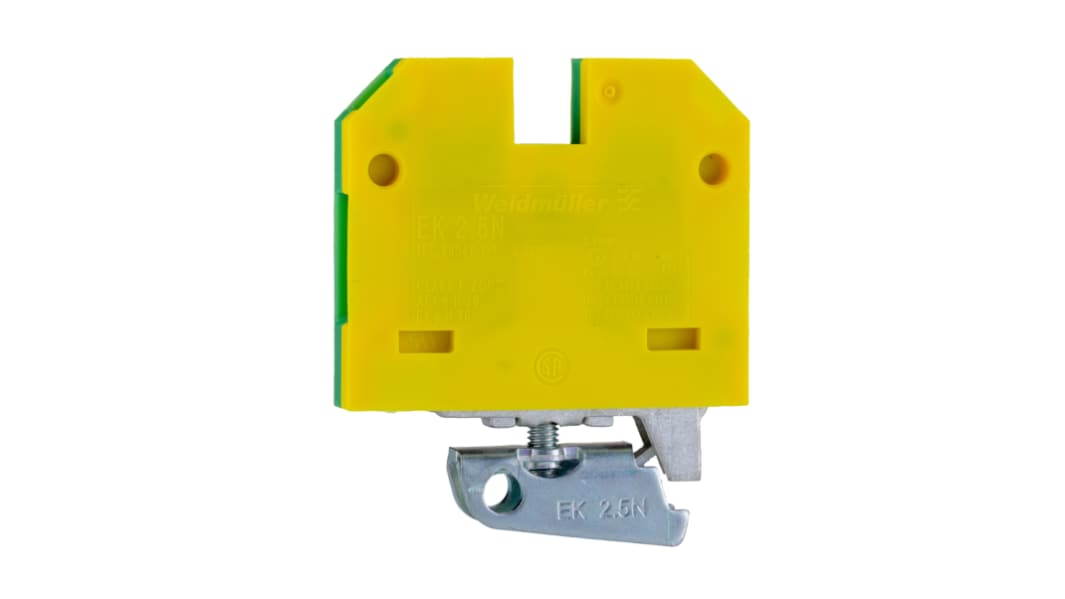

Weidmuller Earth Terminal

The Weidmuller earth terminal is a yellow, SAK series EK 2.5N, DIN rail mount power block. It has a 2-way terminals clamp mechanically and electrically to the G type. It has a voltage rating of 800V and current rating of 25A. The earth block dimensions are the length of 36.5mm, the width of 6mm and height of 46.5mm. The separation of electrical and mechanical function by screw or tension and copper bUSBar.
SAK series
Terminals manufactured from polyamide 6.6 with a working temperature between -50°C and 100°C except for the fused terminal block (425-689) which is high-grade melamine with a working temperature between -60°C and 130°C. Asymmetric rail (G-profile) to B 5825: 1980 EN 50035 mount.

Features and Benefits

Plug with protective earth with insulated pins
Easy connection to mains earth for operators
Moulded from ABS
Resistance should be between 0.8Mohm and 1.2Mohm

Applications

Electrical cabling
Factory automation

Approvals

1 - 8

Specifications
Attribute Value
Earth Block Type EK 2.5
Wire Size 26 → 12 AWG
Colour Green/Yellow
Number of Ways 2
Termination Method Screw Down
Housing Material Nylon
Current Rating 25A
Voltage Rating 800 V
Length 36.5mm
Width 6mm
Height 46.5mm
Maximum Operating Temperature +80°C
Minimum Operating Temperature -50°C
Hazardous Area Certification ATEX
365 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 3.534
(exc. VAT)
£ 4.241
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£3.534
£17.67
*price indicative
