3M Scotch 1339 Glass Cloth Tape, 19mm x 55m, 0.16mm Thick

  • RS Stock No. 885-5293
  • Mfr. Part No. T133919
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

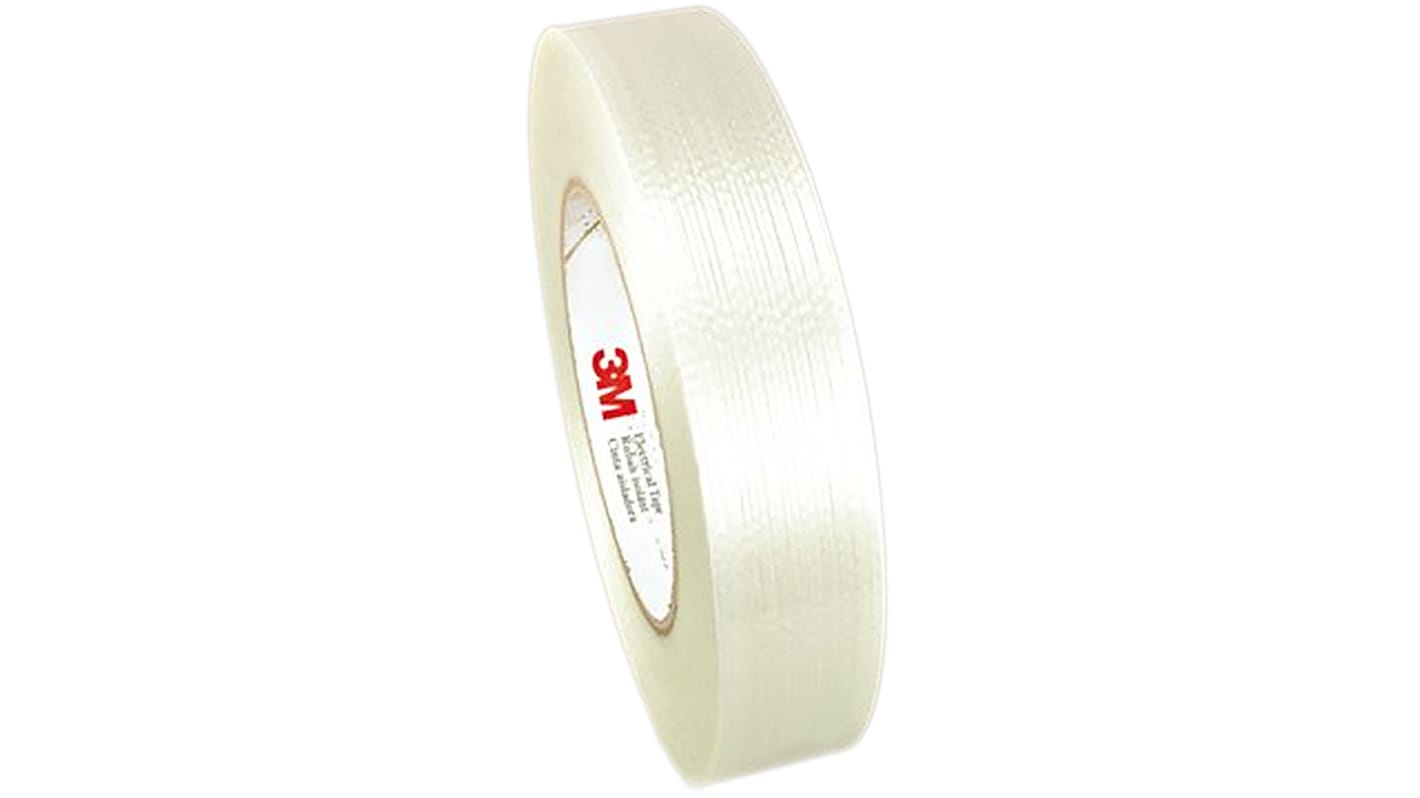

3M™ Filament Reinforced Electrical Tape 1339, 19mm x 55m

3M™ Filament Reinforced Electrical Tape 1339 is a 6.5 mil glass filament-reinforced polyester film backing with high-shear strength acrylic adhesive. It is designed for applications needing both the dielectric strength and mechanical strength. It is excellent for anchoring lead wires to banding coils and end-turn taping.

Features and Benefits

• Conformable, solvent-resistant, high temperature filament tape with acrylic adhesive
• Designed for applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibres
• Low stretch, high tensile and edge-tear resistant Excellent for anchoring lead wires to banding coils and end-turn taping
• UL recognized for use at temperatures to 266°F (130°C) 6.5 mil film thickness

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Tape Type Cloth Tape
Width 19mm
Length 55m
Thickness 0.16mm
Adhesion Strength 3.8 N/cm
Elongation at Break 5%
Tensile Strength 481N/cm
Finish Glass
Maximum Operating Temperature +130°C
Minimum Operating Temperature 0°C
Model Number Scotch 1339
1 In stock - FREE next working day delivery available
Price Each
£ 45.62
(exc. VAT)
£ 54.74
(inc. VAT)
Units
Per unit
1 - 5
£45.62
6 - 14
£43.80
15 +
£42.88
