3M 3M 5421 Translucent Gloss PTFE Tape, 16m x 19mm

  • RS Stock No. 655-0753
  • Mfr. Part No. 21743
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): US
Product Details

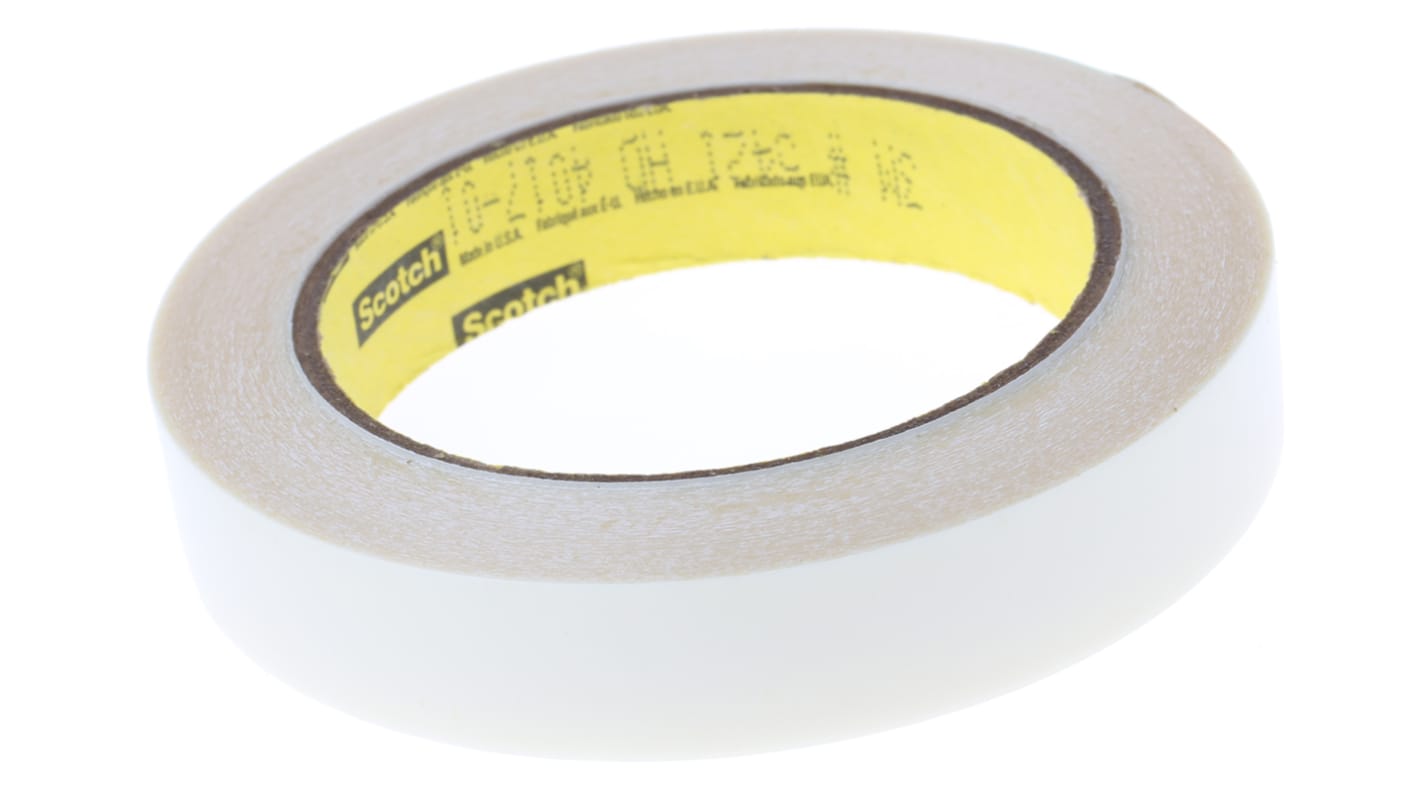

3M™ UHMW Film Tape 5421 Transparent 19 mm x 16 m

Introducing the 3M™ 5421, this UHMW (Ultra High Molecular Weight Polyethylene) translucent film tape is designed to offer excellent abrasion resistance, making it ideal for tough impact wear or sliding applications. An aggressive rubber resin adhesive enables it to adhere to a broad range of surfaces making it great for tough impact applications. This 3M quality tape provides shear strength, surface adhesion and temperature resistance.

Application

The 3M™ UHMW 5421 can provide high strength and long-term durability through a general-purpose rubber adhesive. It has excellent chemical and abrasion resistance to help a long wear life on the subject. Mounting on a paper liner it makes it ideal for die-cutting to meet specific demands. Designed to be applied in applications that require a low level of friction and the movement of parts/materials. This is the thinner version of the 3M 5421.

Features and Benefits

Translucent, abrasion resistant backing helps protect surfaces from wear

Rubber adhesive provides good initial tack for immediate bonding to the material surface

Can help reduce squeaks, rattles and other noises that occur with movement

Used in applications where lubrication is not possible because of contamination

The liner makes it ideal for fabricating or die-cutting into various lengths and shapes

FAQ's

What is the shelf life of this tape?

To obtain the best performance, use this product within 24 months from the date of dispatch from the manufacturer.

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour Translucent
Width 19mm
Length 16m
Backing Material PE
Thickness 0.17mm
Adhesive Material Rubber
Adhesion Strength 28 N/cm
Elongation at Break 275%
Tensile Strength 28N/cm
Finish Gloss
Maximum Operating Temperature +107°C
Minimum Operating Temperature -34°C
Trade Name Scotch UHMW Polyethylene Tape
Model Number 3M 5421
7 in stock for FREE next working day delivery
6 available from Europe for delivery within 1 working day(s)
Price 1 Lot of 2
£ 73.01
(exc. VAT)
£ 87.61
(inc. VAT)
Lot(s)
Per Lot
Per unit*
1 - 5
£73.01
£36.505
6 - 14
£70.09
£35.045
15 +
£68.63
£34.315
*price indicative
