Southco E4-10-201-10-RS Pressure Catch

  • RS Stock No. 245-5531
  • Mfr. Part No. E4-10-201-10-RS
  • Brand Southco
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details
//media.rs-online.com/t_line/LF245553-10.gif

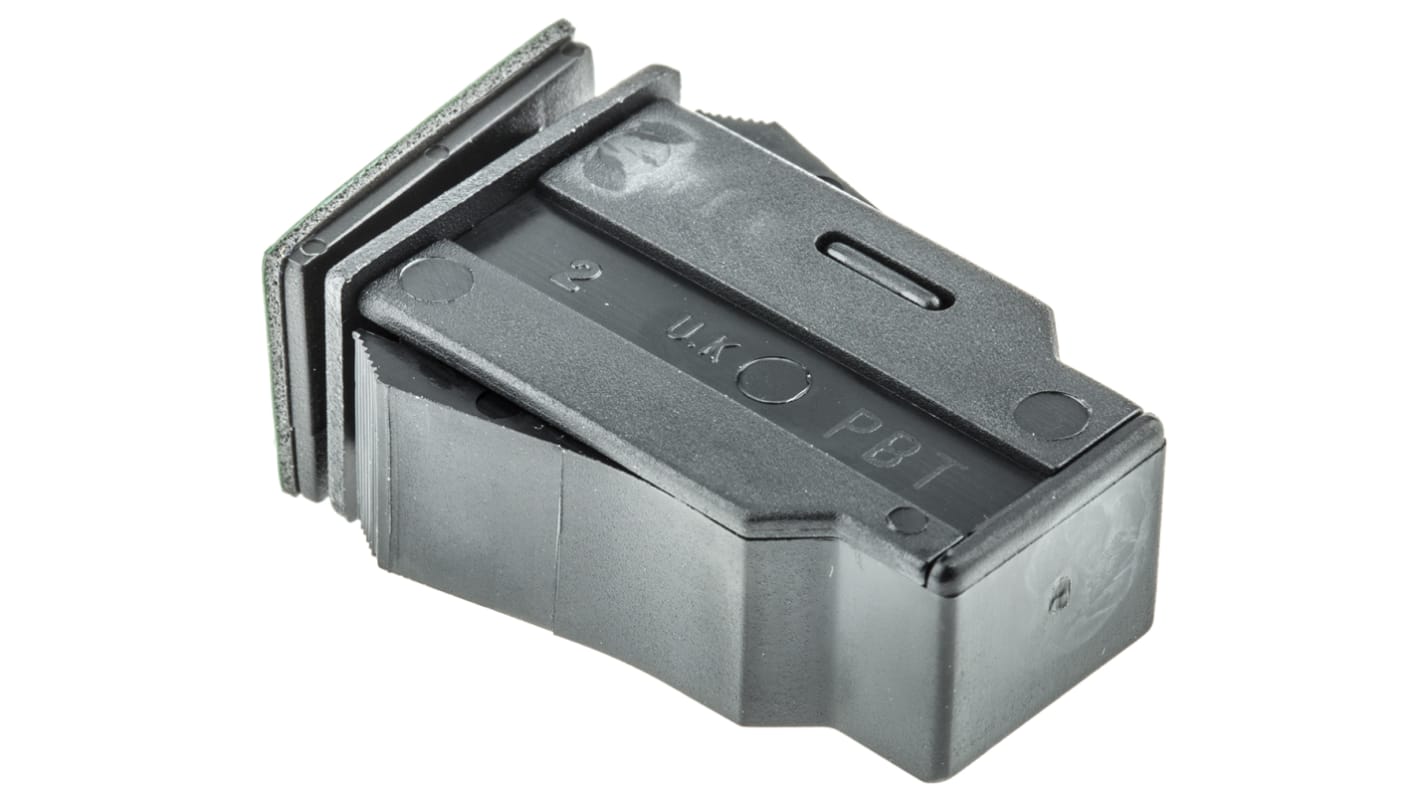

Southco Touch Latch

The Southco touch latch is a rectangular latch. It is completely hidden from view, providing an unblemished outward appearance on doors and panels. It has a height of 19mm, a width of 13mm and depth of 30.3mm. The latch fits into frames from 1mm to 3mm thick, 0.9mm depth and the keep is self-adhesive.

Features and Benefits

Average tensile load of 15N
Concealed latch points
Door ejection feature
Snap-in installation
Simply push the door or panel to close, and push to open again
Plastic construction

Certifications

UL94-HB approved

Specifications
Attribute Value
Dimensions 19 x 13 x 30.3mm
Length 19.0mm
Width 13.0mm
73 In stock - FREE next working day delivery available
Price Each
£ 5.47
(exc. VAT)
£ 6.56
(inc. VAT)
Units
Per unit
1 - 4
£5.47
5 - 9
£5.21
10 - 19
£4.92
20 +
£4.60
