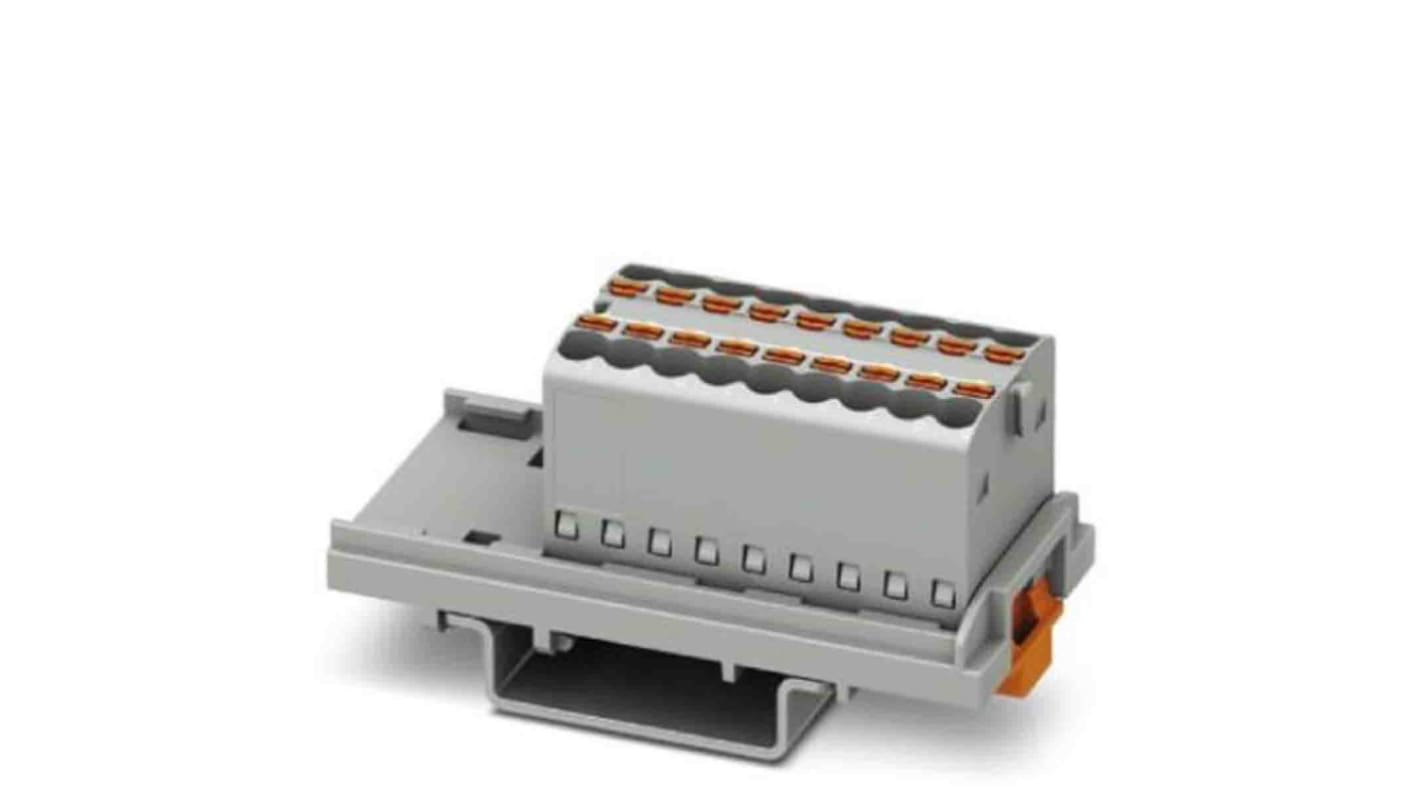

Phoenix Contact Distribution Block, 18 Way, 2.5mm², 17.5A, 500 V, Grey

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used NS 35/15, NS 35/7,5 mounting type. It can be used straight away and expanded as needed. It has 18 way of connection and its width is 21.6mm. The block can be bridged with one another via the conductor shaft and aligned with standard plug-in bridge.

Number of level is 1
Rated surge voltage is 6kV

Specifications
Attribute Value
Number of Ways 18
Termination Method Push In
Wire Size 14 AWG
Housing Material Polyamide
IP Rating IP20
Current Rating 17.5A
Voltage Rating 500 V
Cable CSA 2.5mm²
Colour Grey
Available to back order for despatch 09/11/2020, delivery within 2 working days
Price Each (In a Pack of 20)
£ 7.067
(exc. VAT)
£ 8.48
(inc. VAT)
Units
Per unit
Per Pack*
20 +
£7.067
£141.34
*price indicative
Not available for guaranteed pre 9am/10am delivery
