Intelligent Embedded Solutions Display Interface Kit for Ampire AM-800600K7TMQW-A0H-F Display

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

IES Interface Kits for Ampire TFT LCD Displays

The IES range of TFT Interface Kits ( TIK ) is an advanced TFT LCD monitor control board, offering high quality images
on a range of TFT products.
This single board solution enables an easy monitor and or video replacement with a large area TFT display.
The TIK has a wide input and automatic scaling range, up to WUXGA ( 1080x1920 pixels ) at 60Hz, and in all video
modes the full TFT screen is used.
Suitable applications include monitor replacement and adding additional monitors.

Features of the IES TFT interface kits:
Analogue RGB D-SUB and DVI ( Digital Video Interface ) Inputs
Audio in and out (2x3W 4ohm)
Single 12v DC input voltage
Built-in multi language On Screen Display ( OSD ) user interface
Multi-sync capability up to WUXGA resolution at 60Hz
Compatible standard VGA, SVGA, XGA, SXGA and UXGA VESA timing

IDS Display Accessories

Specifications
Attribute Value
For Use With Ampire AM-800600K7TMQW-A0H-F LCD Display
Interface Type DVI, LVDS, RGB

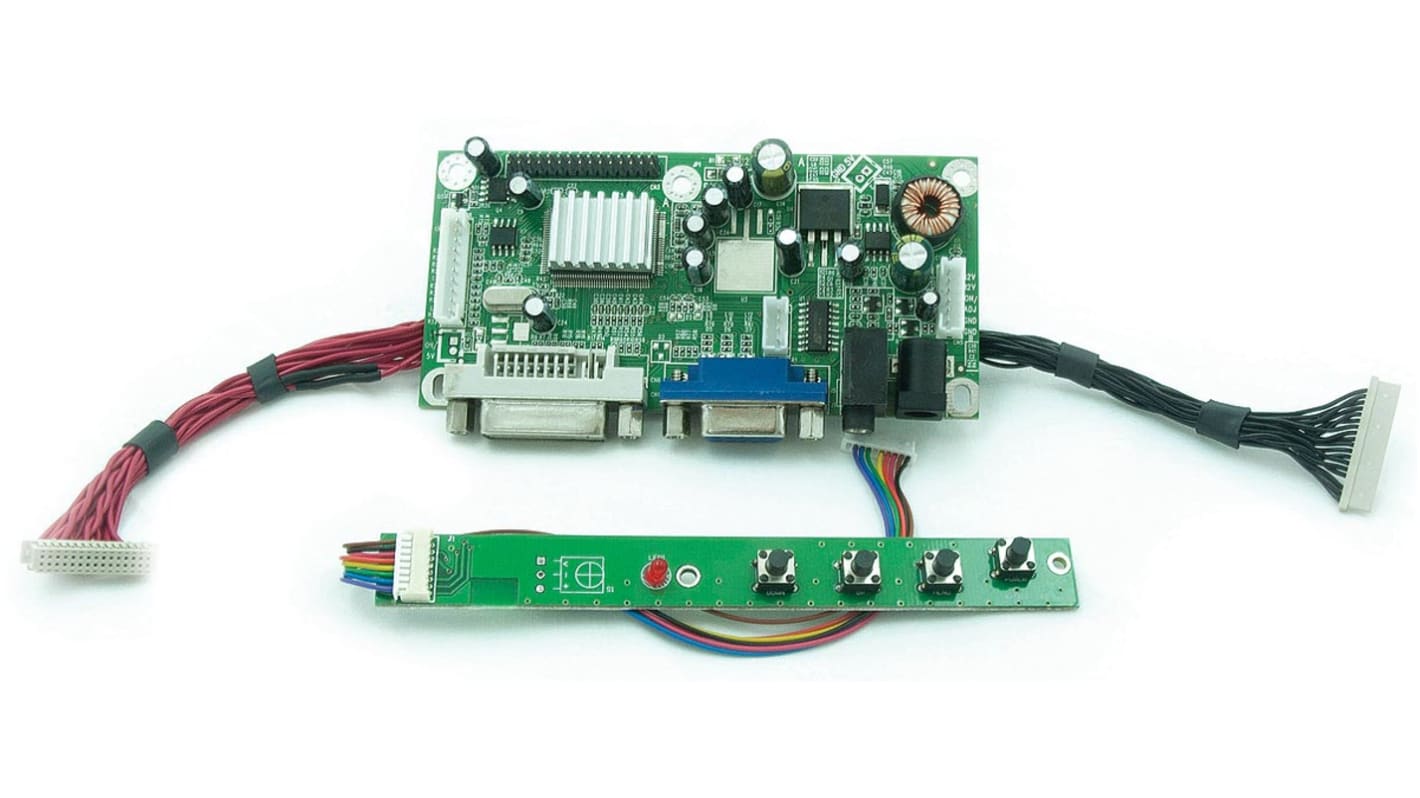

Kit Contents Main Interface Board, OSD Keyboard
Kit Name Display Interface Kit for Ampire AM-800600K7TMQW-A0H-F Display
2 In stock for FREE next working day delivery
Price Each
£ 43.60
(exc. VAT)
£ 52.32
(inc. VAT)
Units
Per unit
1 - 4
£43.60
5 +
£42.73
