Microchip AC320214, SSD1963 LCD Controller Graphics Card LCD Daughter Board With SSD1963 for Microchip starter kits
- RS Stock No.:
- 204-2684
- Mfr. Part No.:
- AC320214
- Brand:
- Microchip
Available to back order for despatch 06/06/2024
Added
Price Each
£76.02
(exc. VAT)
£91.22
(inc. VAT)
Units | Per unit |
1 + | £76.02 |
- RS Stock No.:
- 204-2684
- Mfr. Part No.:
- AC320214
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details

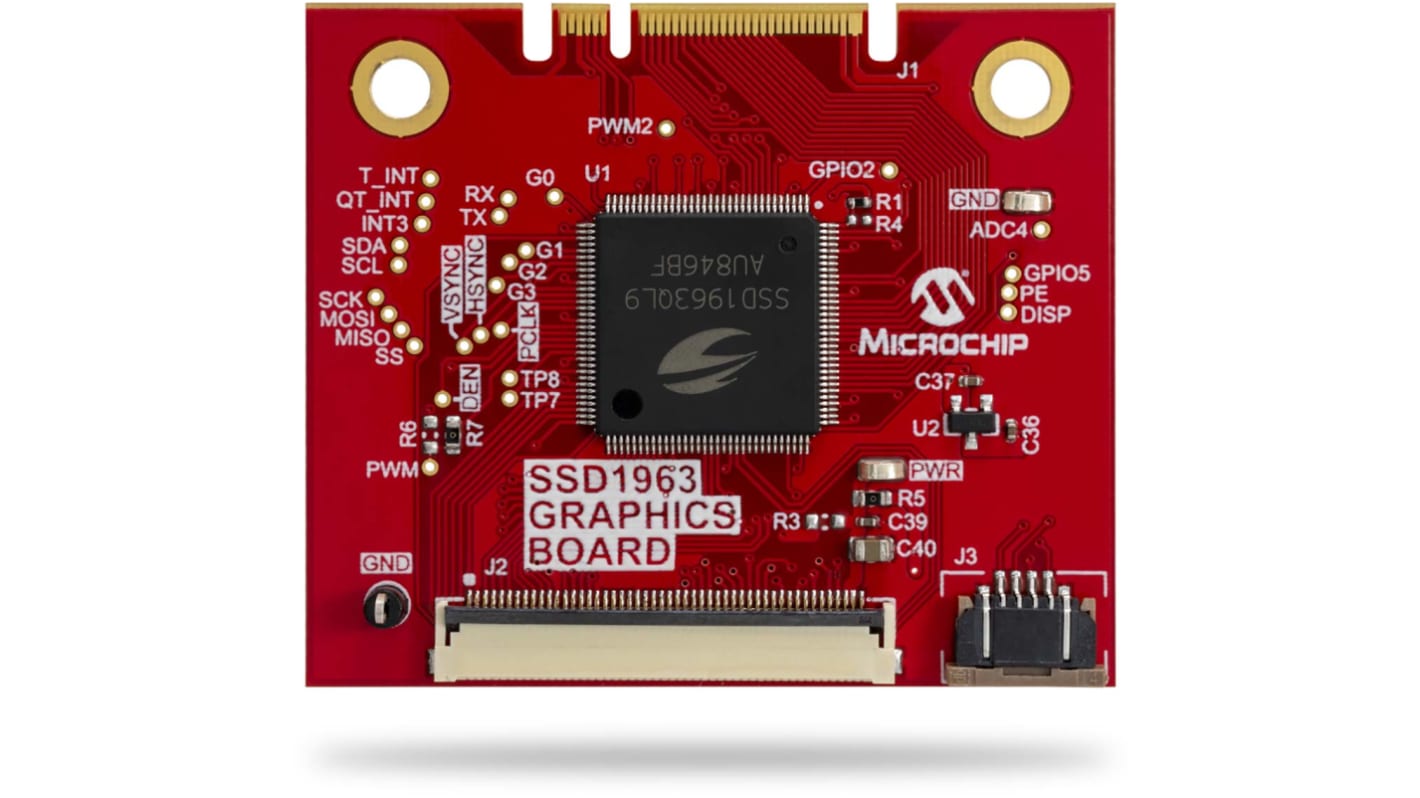

The Microchip SSD1963 LCD Controller Graphics Card (AC320214) enables controller-based graphics for a large variety of Microchip starter kits. It seats into the Explained/Curiosity Ultra 67-pin connector. This card will enable MCUs built on this form factor to pass 16-bit parallel graphics data to the Solomon Stitch SSD1963 Display controller on this daughter card.
Curiosity PIC32 MZ EF 2.0 (DM320209), High-Performance 4.3" WQVGA Display Module with maXTouch (AC320005-4), High-Performance WVGA LCD Display Module with maXTouch (AC320005-5), SAM E54 Curiosity Ultra (DM320210), SAM E70 Xplained Ultra (DM320113).
Curiosity PIC32 MZ EF 2.0 (DM320209), High-Performance 4.3" WQVGA Display Module with maXTouch (AC320005-4), High-Performance WVGA LCD Display Module with maXTouch (AC320005-5), SAM E54 Curiosity Ultra (DM320210), SAM E70 Xplained Ultra (DM320113).
Built-in 1215 KB bytes frame buffer
Supports up to 864 x 480 at 24 bpp colour
Supports TFT 18/24-bit generic RGB interface panel
8/9/16/18/16/24-bit MCU interface
Hardware Display Mirroring
Supports up to 864 x 480 at 24 bpp colour
Supports TFT 18/24-bit generic RGB interface panel
8/9/16/18/16/24-bit MCU interface
Hardware Display Mirroring
Specifications
Attribute | Value |
---|---|
Display Technology | LCD |
Kit Classification | Daughter Board |
Featured Device | SSD1963 |
Kit Name | SSD1963 LCD Controller Graphics Card |
For Use With | Microchip starter kits |
