- RS Stock No.:
- 913-9090
- Mfr. Part No.:
- SMR 5110
- Brand:
- KNITTER-SWITCH
Discontinued product
- RS Stock No.:
- 913-9090
- Mfr. Part No.:
- SMR 5110
- Brand:
- KNITTER-SWITCH
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

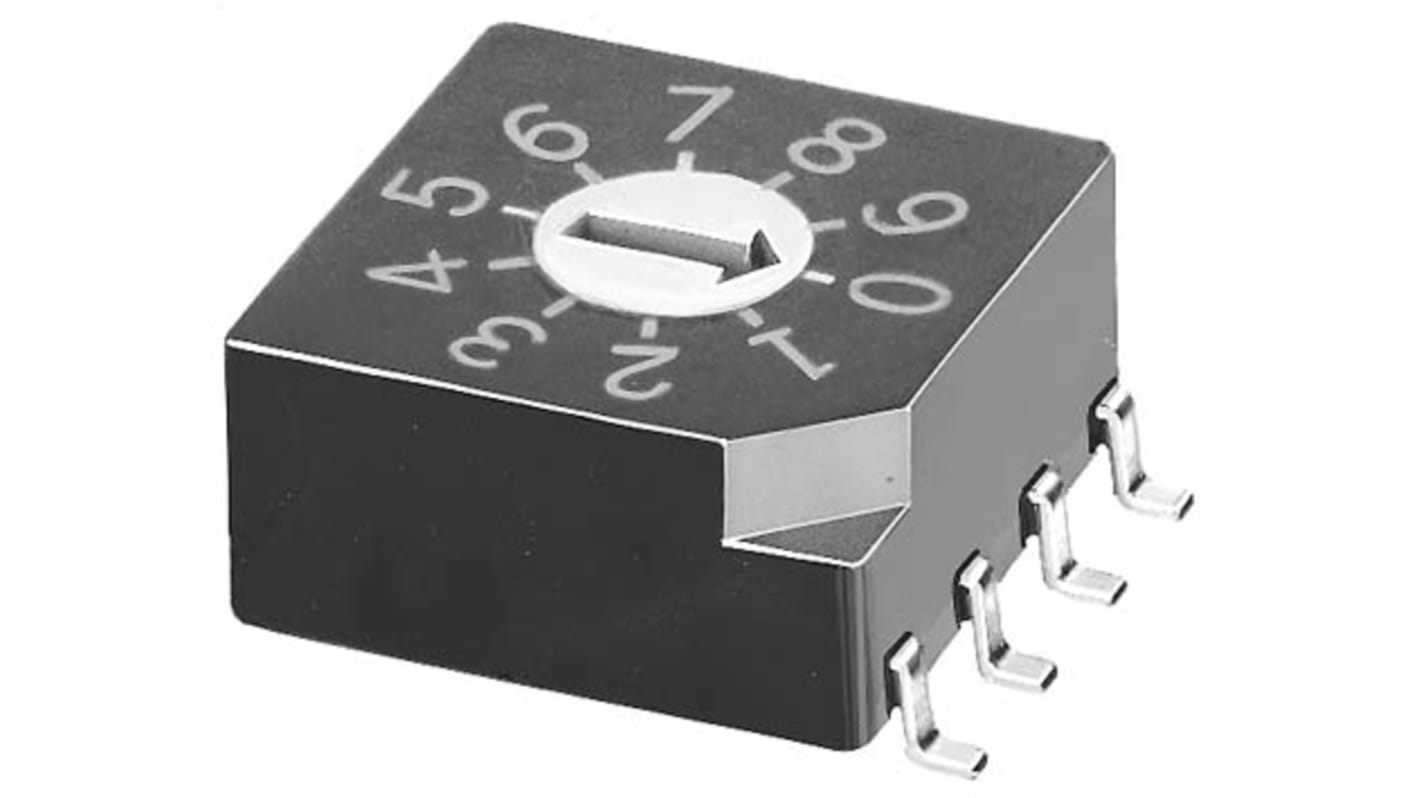

Knitter-Switch Rotary Coded Switches SMR
Product Description
Knitter-Switch Rotary coded switches are available in both BCD and Hexadecimal inverse coding. The SMR range has a mechanical life of 20000 operations and boasts gold plated contacts. The SMR series is suitable for SMD mounting and have a contact rating of 15 V dc at 30 mA switching.
Knitter-Switch Rotary coded switches are available in both BCD and Hexadecimal inverse coding. The SMR range has a mechanical life of 20000 operations and boasts gold plated contacts. The SMR series is suitable for SMD mounting and have a contact rating of 15 V dc at 30 mA switching.
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
---|---|
Number of Positions | 10 |
Mounting Type | Surface Mount |
Contact Material | Phosphor Bronze |
Package Style | DIP |
Actuator Type | Rotary Coded |
Contact Current Rating | 30 mA |
Mechanical Life | 20000Operations |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Voltage Rating | 15V dc |
Dielectric Strength | 250V |
