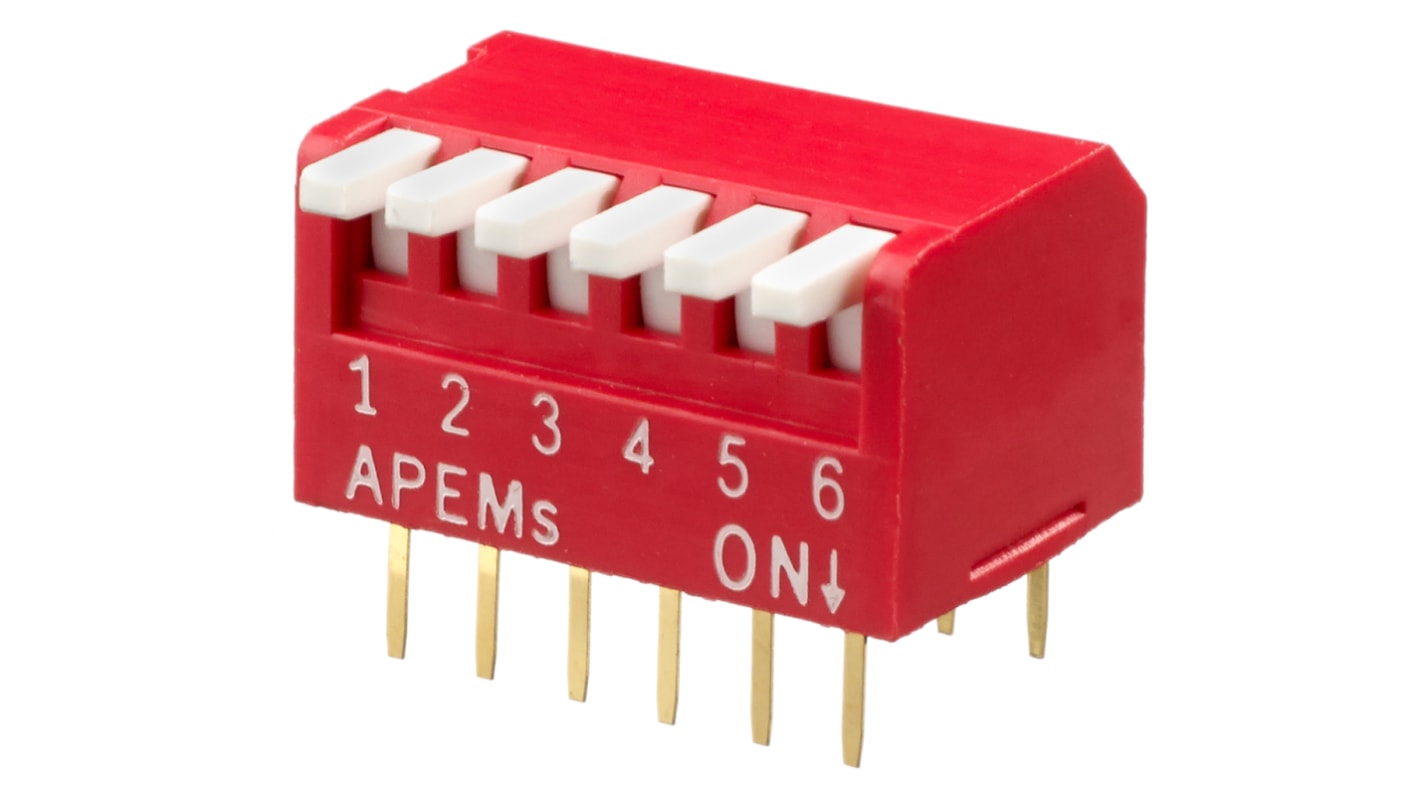

APEM 6 Way Through Hole Piano Dip Switch SPST, Piano Actuator
- RS Stock No.:
- 877-2340
- Mfr. Part No.:
- DPL06V
- Brand:
- APEM
185 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 5)
£1.046
(exc. VAT)
£1.255
(inc. VAT)
| Units | Per unit | Per Bag* |
| 5 - 120 | £1.046 | £5.23 |
| 125 + | £0.974 | £4.87 |
| *price indicative | ||
- RS Stock No.:
- 877-2340
- Mfr. Part No.:
- DPL06V
- Brand:
- APEM
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
DP/DPL Series Piano DIP Switches
A range of PCB SPST DIP switches. DP series have short keys and DPL are the long key type
Upto 10 way
Operation force 400gf max
2mm Stroke
25mA 24Vdc, switching rating
100mA 50Vdc, non switching rating
Operation force 400gf max
2mm Stroke
25mA 24Vdc, switching rating
100mA 50Vdc, non switching rating
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 6 |
| Mounting Type | Through Hole |
| Contact Configuration | SPST |
| Contact Material | Phosphor Bronze |
| Package Style | DIP |
| Actuator Type | Piano |
| Contact Current Rating | 25 mA |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Voltage Rating | 24V dc |
| Dielectric Strength | 500V dc |
